Description

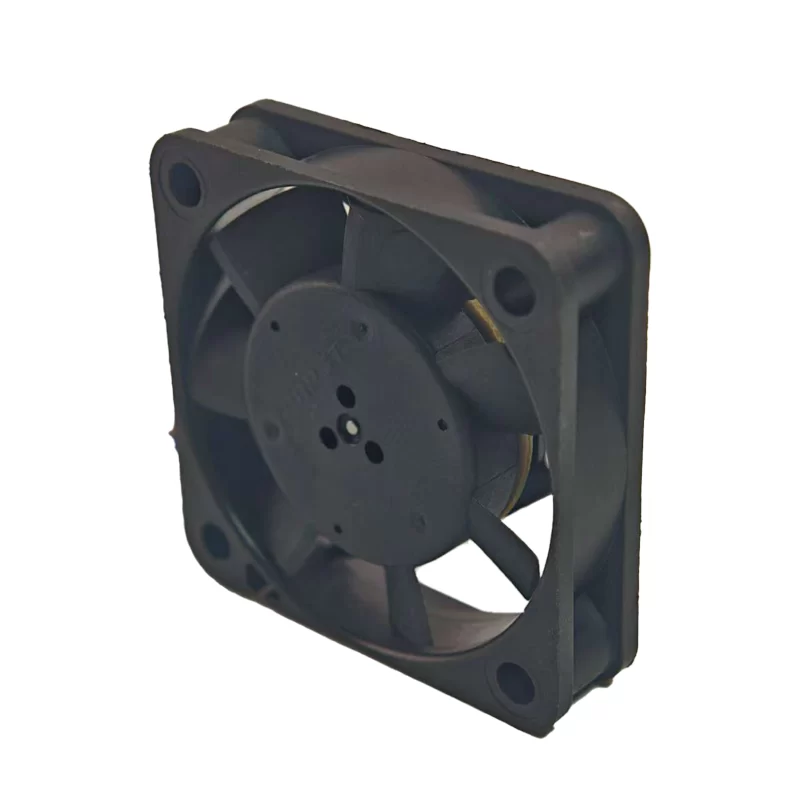

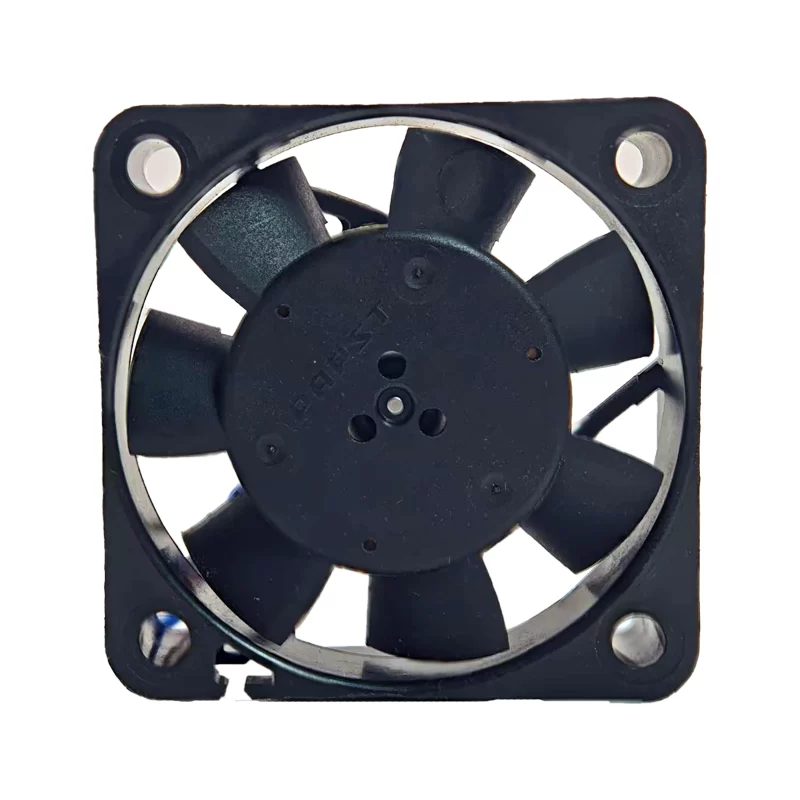

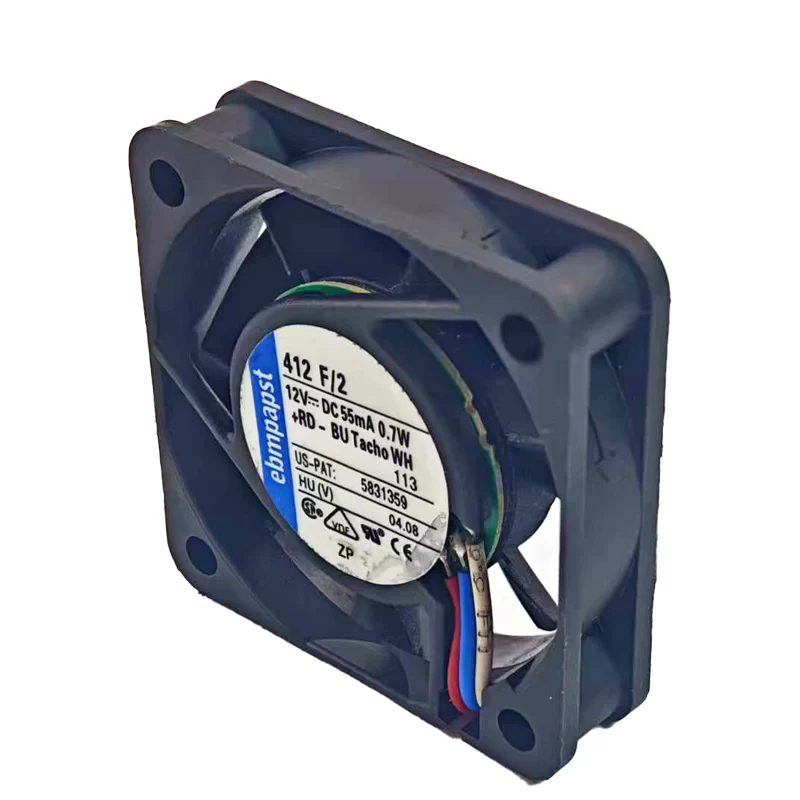

The ebmpapst 412F/2 is a compact DC axial fan, typically measuring 40mm x 40mm x 20mm. It is designed for precise cooling in confined spaces within electronic assemblies, industrial control systems, and small appliances. This fan operates on 12 VDC. It consumes 0.7W of power and draws 0.055A of current, achieving a speed of 6000 RPM. It delivers an airflow of 5.9 CFM (0.17 m³/min) with a low noise level of 18 dB(A). Featuring a durable fiberglass-reinforced plastic frame and impeller, and equipped with a Sintec sleeve bearing, the 412F/2 ensures a long operational life and stable performance in its small form factor. It also includes integrated protection against reverse polarity and locking, enhancing its durability and safety, and connects via 3-wire leads.
412F/2 Fan Parameters
Model: 412F/2
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10 VDC – 14 VDC
Rated Current: 0.055A
Power Consumption: 0.7 W
Speed: 6000 RPM
Airflow: 5.9 CFM (0.17 m³/min)
Static Pressure: 0.07 inch H2O (17.5 Pa)
Noise Level: 18 dB(A)
Bearing Type: Sintec (Sleeve)
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Termination: 3-Wire Leads (with speed sensor)
Operating Temperature: -20°C to +70°C
Life Expectancy: 50,000 hours (L10 at 20°C)
Weight: 27 g
Features: Electronically commutated external rotor motor, Integrated commutation electronics, Protected against reverse polarity, Protected against locking, Speed signal (Tachometer).
Application: Compact electronic devices, networking equipment, medical diagnostic tools, small control units, 1U server racks, general spot cooling.
