Description

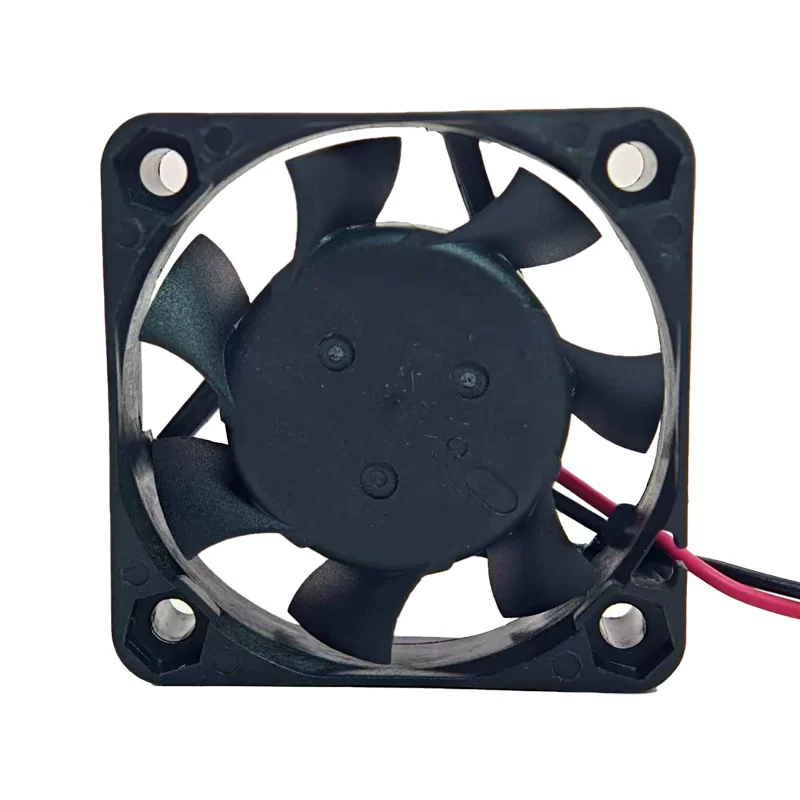

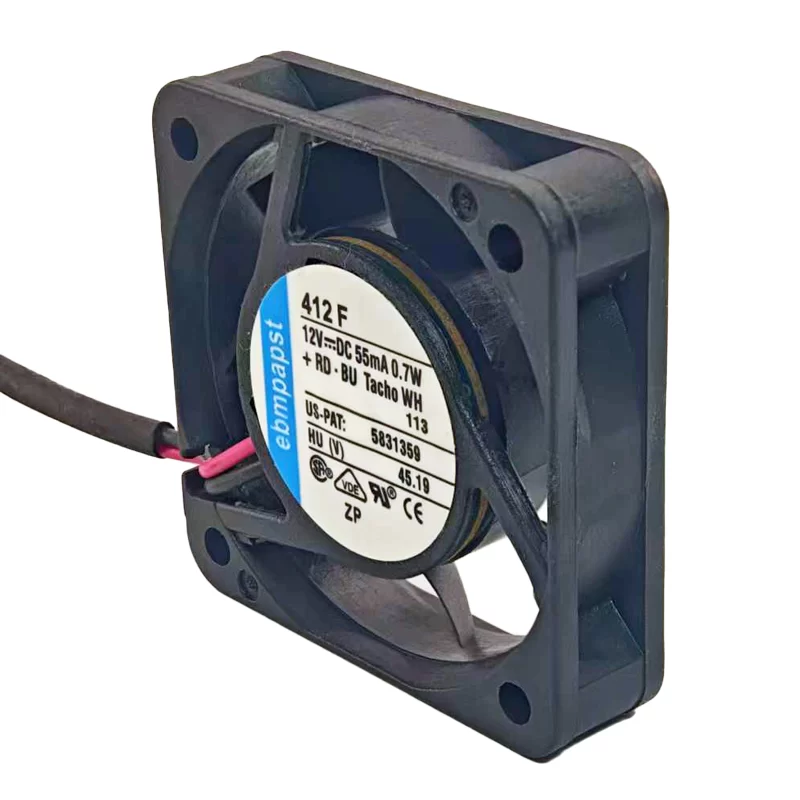

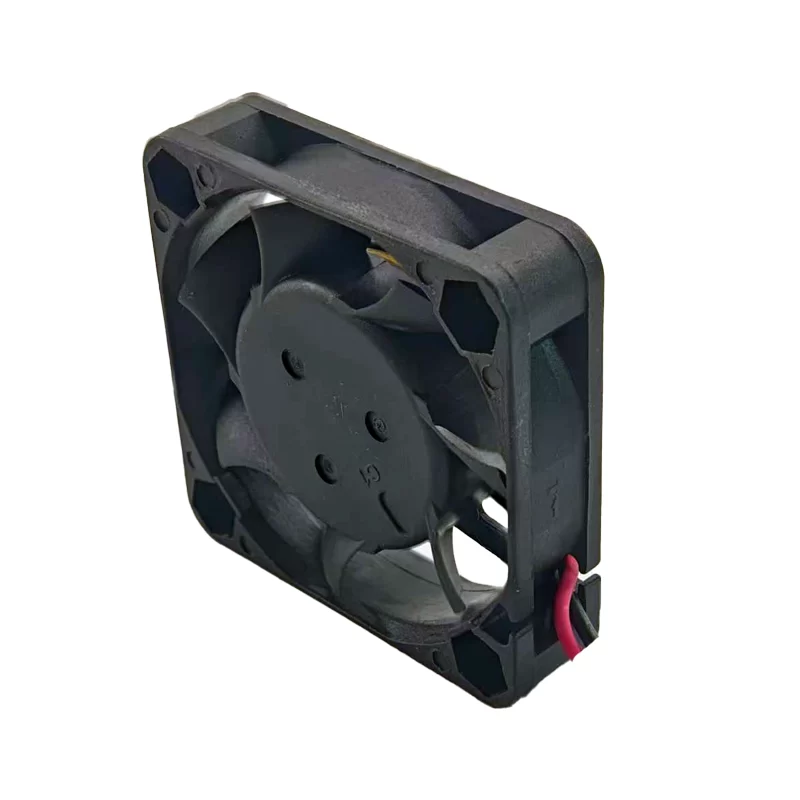

The ebmpapst 412F stands out as a miniature powerhouse in cooling solutions, measuring just 40mm x 40mm x 10mm. This DC axial fan is engineered to deliver targeted air movement in highly confined electronic environments, ensuring optimal thermal management where space is a premium. Operating efficiently on a 12 VDC supply, it consumes a mere 0.7W of power and draws only 0.055A of current. Despite its compact size, it achieves a notable speed of 5400 RPM, generating an airflow of 4.7 CFM (8 m³/h) with minimal audible distraction, registering at 22.1 dB(A). Built with a robust fiberglass-reinforced plastic construction and featuring a durable Sintec sleeve bearing, this fan promises extended reliability. Its integrated protective features, including reverse polarity and locking safeguards, enhance its operational longevity and safety.
412F Fan Parameters
Model: 412F
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 10mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10 VDC – 14 VDC
Rated Current: 0.055A
Power Consumption: 0.7 W
Speed: 5400 RPM
Airflow: 4.7 CFM (8 m³/h)
Static Pressure: 0.064 inch H2O (16 Pa)
Noise Level: 22.1 dB(A)
Bearing Type: Sintec (Sleeve)
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Termination: 2-Wire Leads
Operating Temperature: -20°C to +70°C
Life Expectancy: 45,000 hours (L10 at 20°C)
Weight: 17 g
Features: Electronically commutated external rotor motor, Integrated commutation electronics, Protected against reverse polarity, Protected against locking.
Application: Compact electronic devices, networking equipment, small embedded systems, miniature control units, general spot cooling where space is critical.
