Description

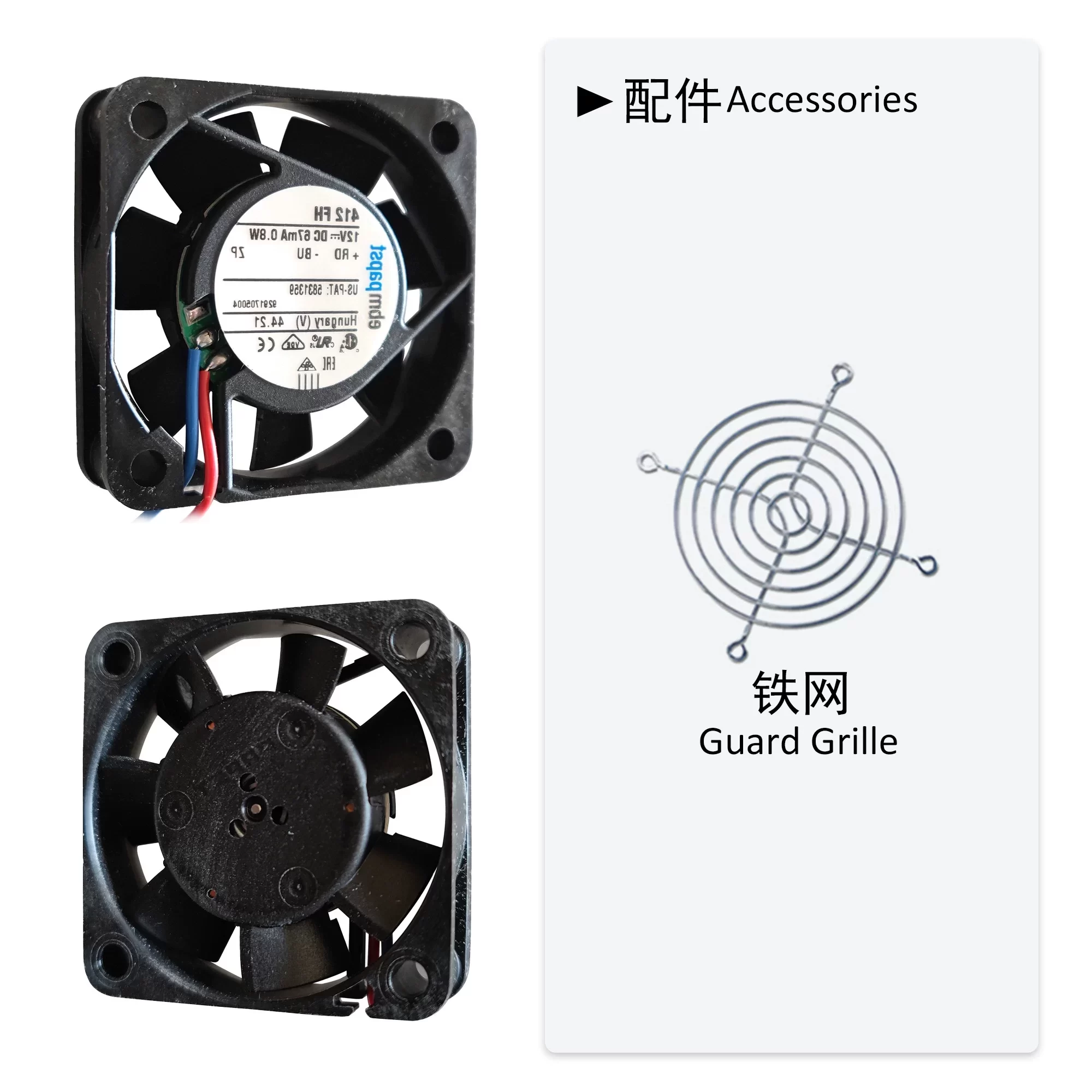

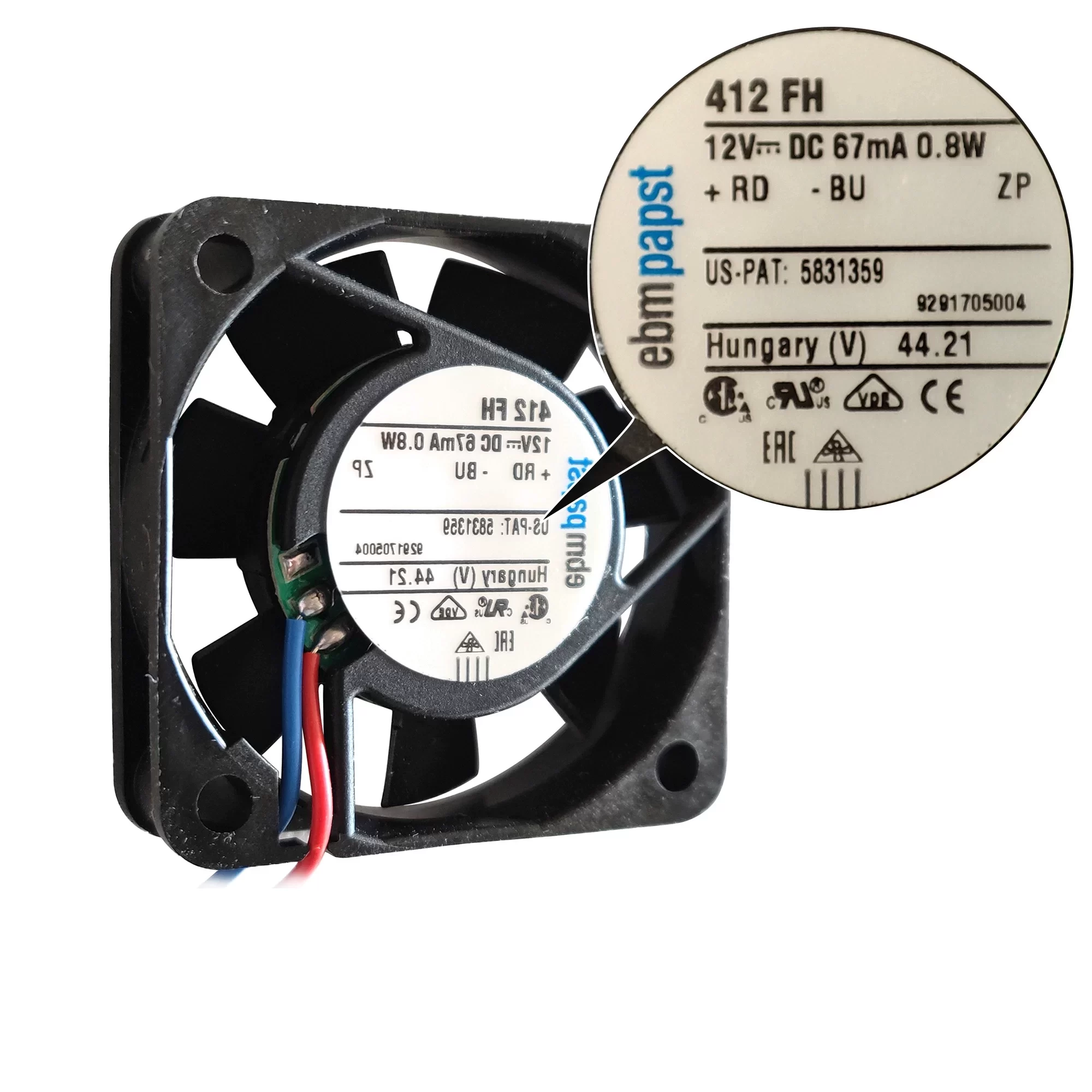

The ebmpapst 412FH is a compact DC Axial Fan with dimensions of 40x40x10mm. It operates on 12VDC (with an operating voltage range of 10 to 14VDC), consuming 0.8W of power and achieving a speed of 6000 RPM. This fan delivers an airflow of 9 m³/h (5.3 CFM) with a sound pressure level of 26 dB(A) and a sound power level of 4.6 B. It features a Sintec sleeve bearing system and includes leads (AWG 28, TR 64, stripped and tin-plated). The motor is protected against reverse polarity and blocked rotor. The fan is approved by VDE, CSA, and UL.
412FH Fan Parameters
Model: 412 FH
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 40 x 40 x 10 mm
Nominal Voltage: 12 VDC
Nominal Voltage Range: 10 – 14 VDC
Power Consumption: 0.8 W
Speed: 6000 RPM
Airflow: 9 m³/h (5.3 CFM)
Sound Power Level: 4.6 B
Sound Pressure Level: 26.0 dB(A)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Weight: 0.017 kg (17 g)
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing System: Sintec sleeve bearing
Service Life L10 at 20 °C: 45,000 h
Service Life L10 at 60 °C: 17,500 h
Cable: Leads AWG 28, TR 64, stripped and tin-plated
Motor Protection: Protection against reverse polarity and blocked rotor
Approval: VDE, CSA, UL
Application: Compact electronics cooling, Small appliances, Control cabinets
