Description

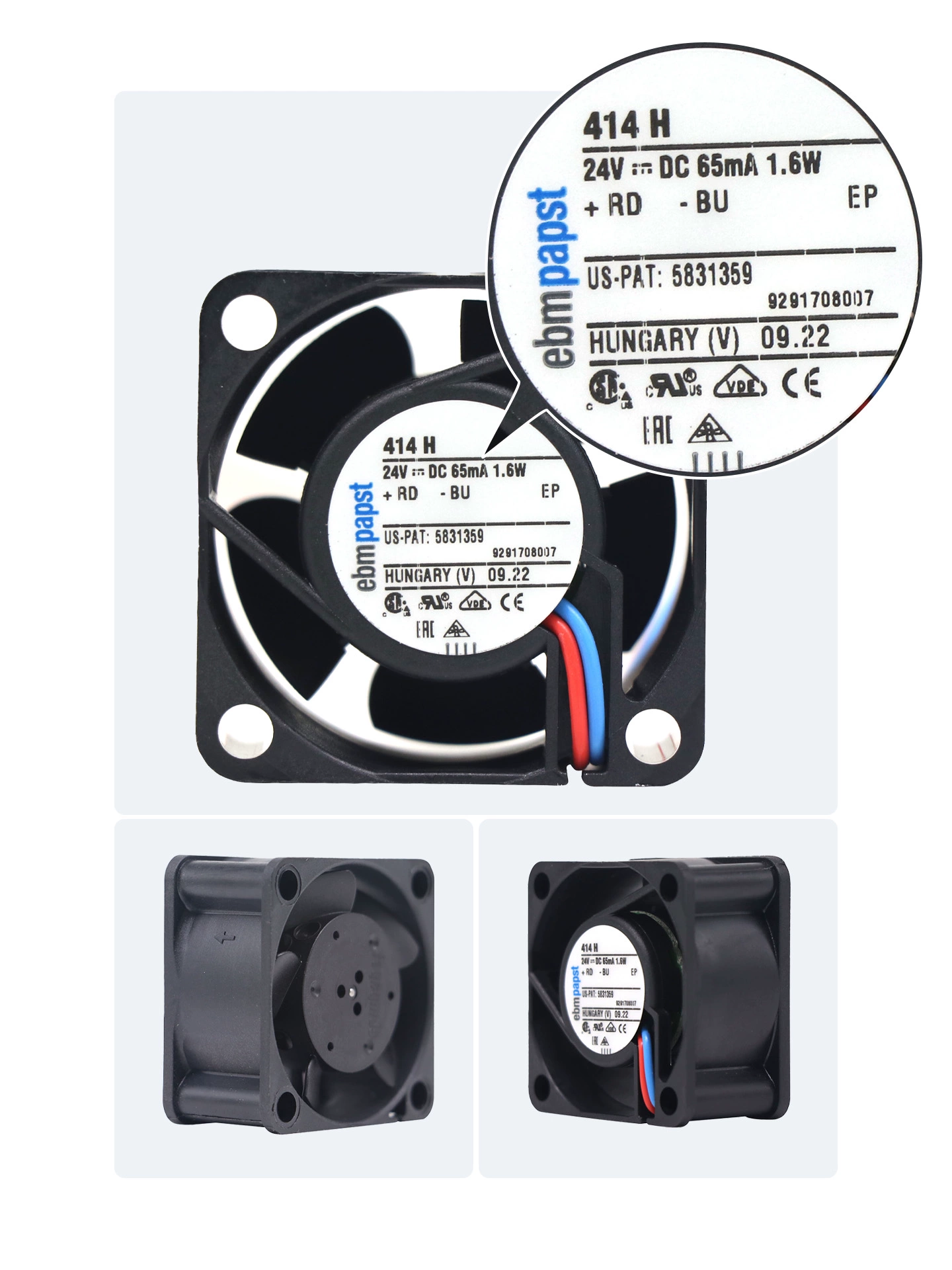

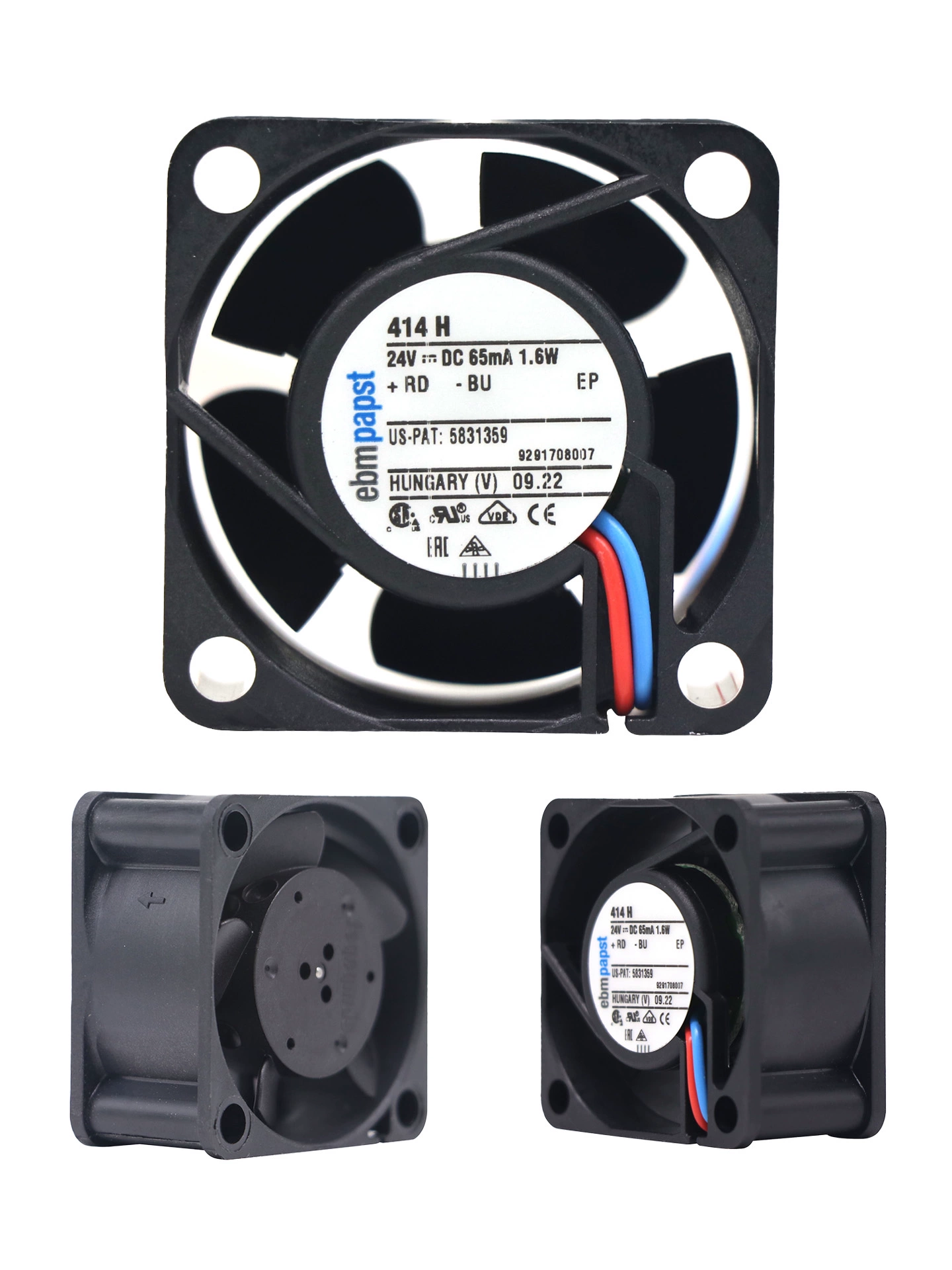

The ebmpapst 414H is a compact DC axial fan measuring 40x40x20mm. It operates on 24 VDC, drawing approximately 0.0667 A of current, with a power consumption of 1.6 W. This fan achieves a high speed of 8100 RPM, providing an airflow of 7.9 CFM (0.22 m³/min). The noise level is 29 dB(A). It features a Sintec sleeve bearing for quiet and reliable operation and connects via 2-wire Leads. This fan is designed for applications requiring efficient cooling in confined spaces, such as medical technology, analyzing equipment, and other electronic devices.

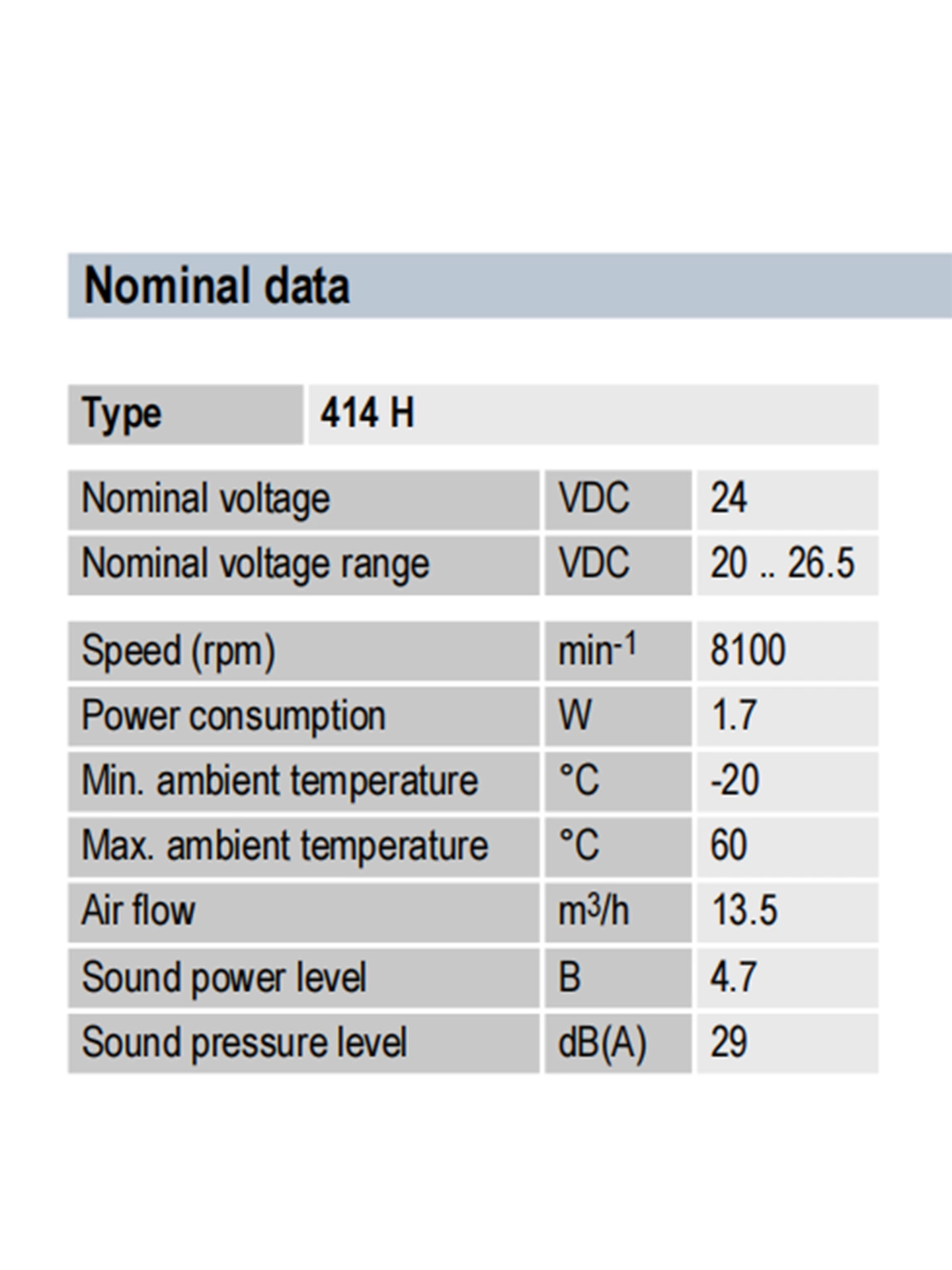

414H Fan Parameters
Model: 414H
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 40x40x20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20-26.5 VDC
Rated Current: 0.0667 A
Power Consumption: 1.6 W
Speed: 8100 RPM
Airflow: 7.9 CFM (0.22 m³/min)
Noise Level: 29 dB(A)
Bearing Type: Sleeve Bearing (Sintec)
Termination: 2-wire Leads
Weight: 27 g
Housing Material: Plastic (Glass-fiber reinforced PBT)
Impeller Material: Plastic (Glass-fiber reinforced PA)
Operating Temperature: -20 to 60°C
Expected Life: 45000 Hrs at 20°C
Features: Protected against reverse polarity and locking.
Application: Medical technology, analyzing equipment, compact electronic devices.
