Description

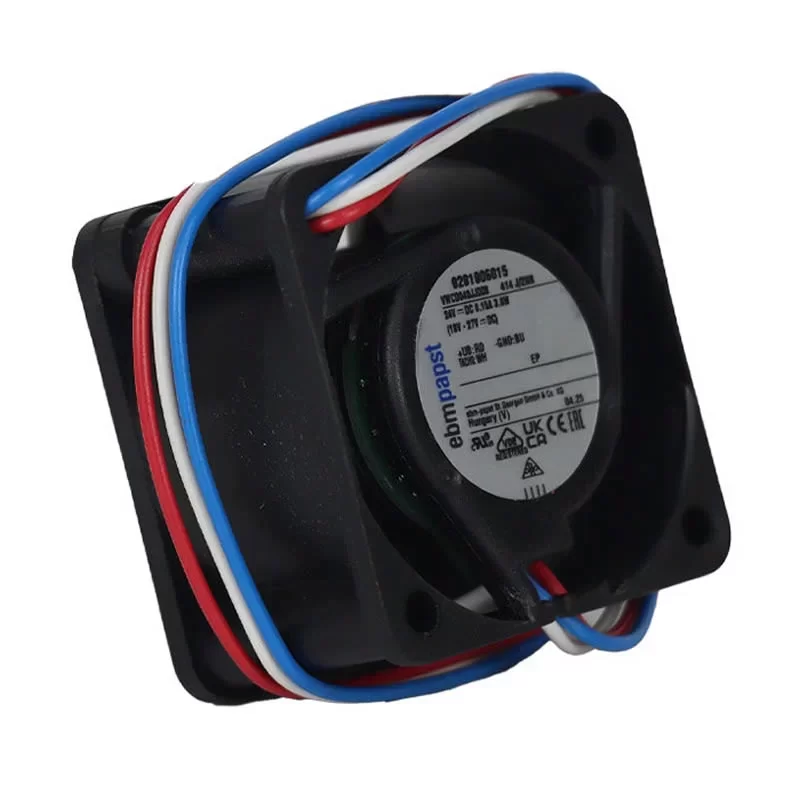

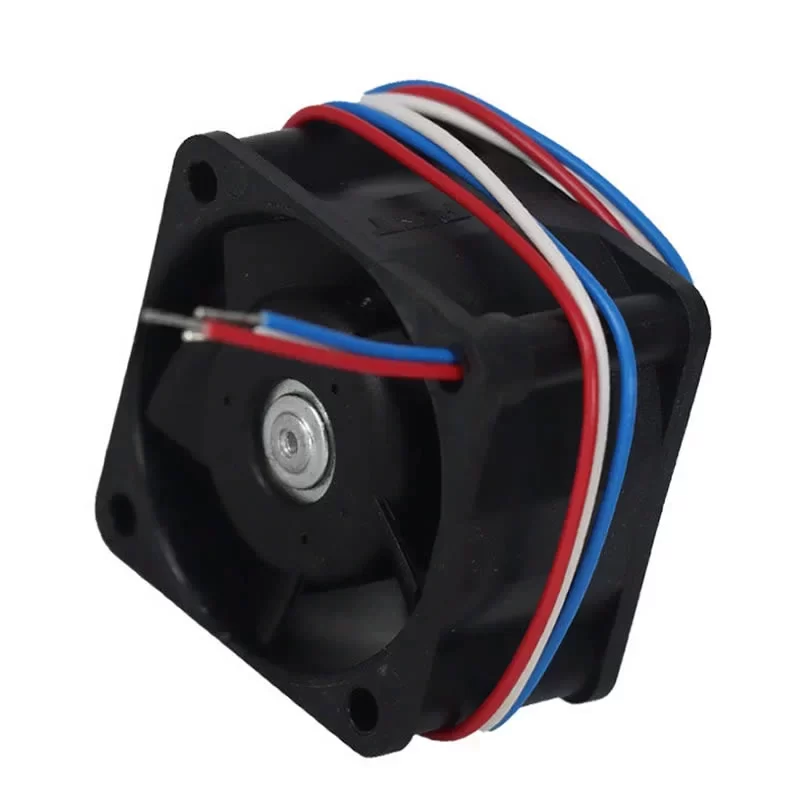

The ebmpapst 414J/2HH (9291906015) is a professional-grade 24 V DC Axial Fan with compact dimensions of 40 x 40 x 25 mm, integrated with a dedicated Speed Signal (Tachometer) output for high-precision system monitoring. Engineered for the most demanding server environments and industrial drive systems, this unit features a 3-wire interface that allows real-time speed feedback to prevent critical component overheating. Driven by an electronically commutated external rotor motor with integrated auto-restart and reverse polarity protection, it provides a precise Max. Power Consumption of 3.6 W and a Max. Current Draw of 0.15 A at 24 V DC. Operating at an ultra-high rated speed of 13000 RPM, it delivers a robust airflow of 38.0 m³/h (22.4 CFM) with an impressive Max. Static Pressure of 360 Pa. Constructed with glass-fiber reinforced PBT plastic and precision ball bearings, this 50 g unit ensures maximum cooling density and mechanical reliability for integrated industrial switchgear systems at the end.
414J/2HH Fan Parameters
Model Number: 414J/2HH
Part Number: 9291906015
Manufacturer: ebmpapst
Type: DC Axial Fan (with Speed Signal)
Dimensions: 40.0 x 40.0 x 25.0 mm
Weight: 50 g
Bearing Type: Ball bearing
Nominal Voltage: 24 V DC
Voltage Range: 18.0 – 28.0 V DC
Max. Power Consumption: 3.6 W
Max. Current Draw: 0.15 A (150 mA)
Starting Current: 850 mA
Rated Speed: 13000 RPM
Max. Air Flow: 22.4 CFM (38.0 m³/h)
Max. Static Pressure: 360 Pa (1.45 inH₂O)
Speed Signal: Open Collector (Tachometer output for speed monitoring)
Motor Protection: Auto-restart and reverse polarity protection

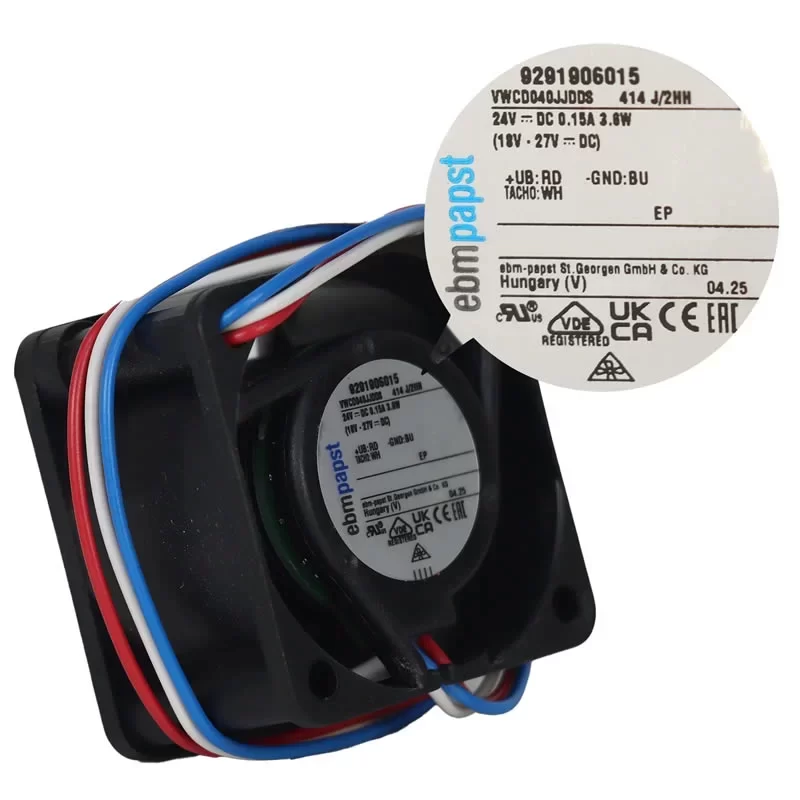

Electrical Hookup: 3 lead wires (Red: +UB, Blue: GND, White: Speed Signal)
Wire Length: 310 mm (24 AWG)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operation Mode: S1 (Continuous operation)
Sound Power Level: 6.2 bel(A)
Sound Pressure Level: 54.0 dB(A)
Service Life (L10): 62,500 h (at 40 °C) / 35,000 h (at 70 °C)
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Standard Compliance: DIN EN 60335-1; CE
Approval Agency: VDE; CSA; UL
Application
The ebmpapst 414J/2HH DC fan is the primary cooling component for high-density server racks, power supply modules, and Siemens SINAMICS drive systems requiring active tachometer speed monitoring.
