Description

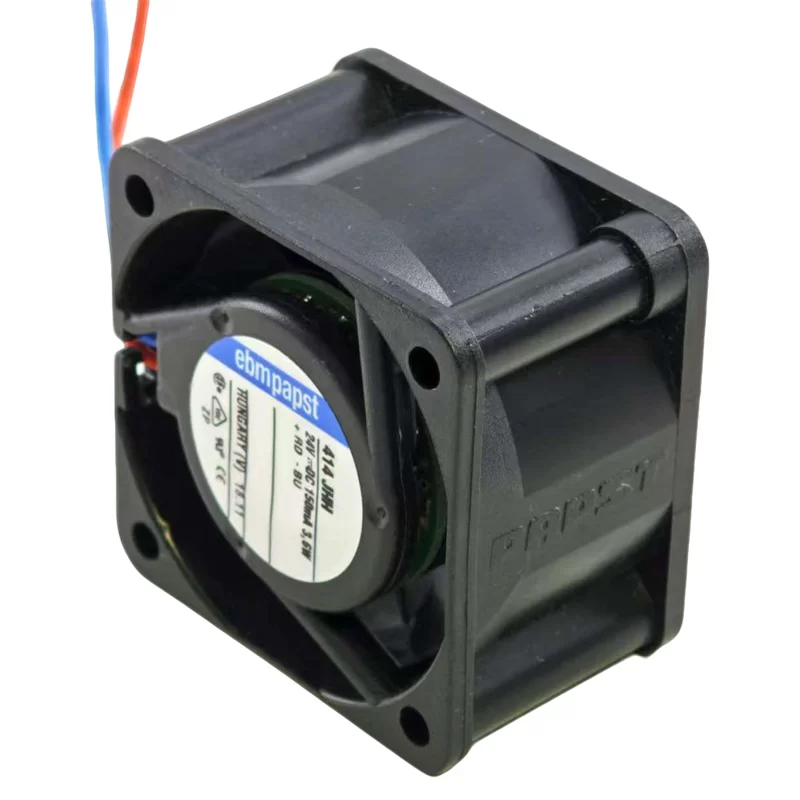

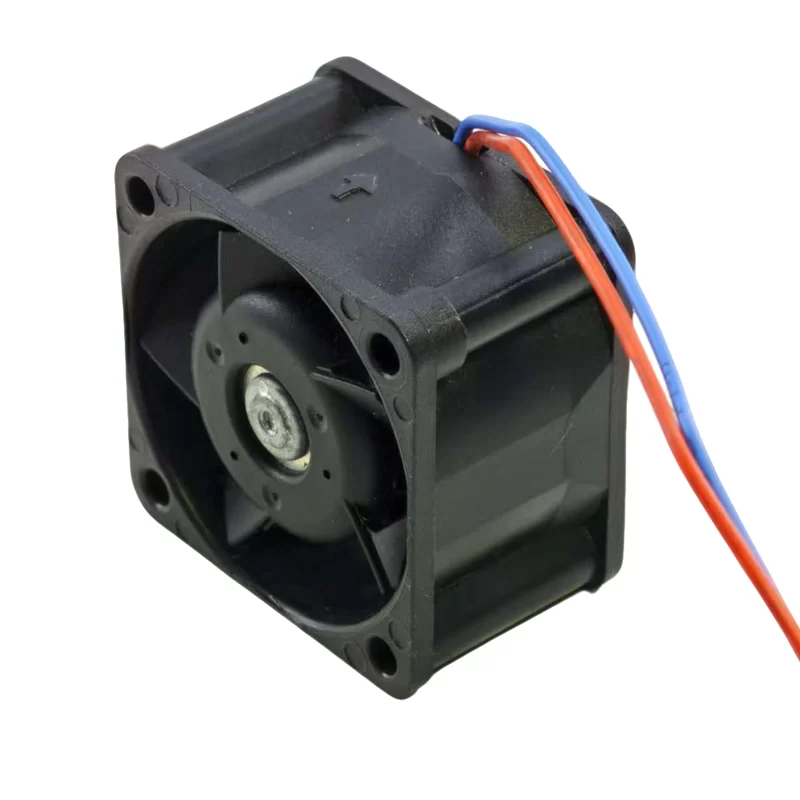

The ebmpapst 414JHH is a high-speed DC axial fan with compact dimensions of 40 x 40 x 25 mm. It operates on a rated voltage of 24V DC, supporting an operating range of 18-27V. The fan draws 0.15 A of current, consuming 3.6 W of power. It delivers an airflow of 24 m³/h at a high speed of 13000 RPM, with a noise level of 46 dB(A). It features a ball bearing with a service life of 57,500 hours at 40°C (35,000 hours at maximum temperature). The housing is made from glass-fiber reinforced PBT plastic and the impeller from glass-fiber reinforced PA plastic. The fan weighs 0.05 kg, is terminated with stripped and tin-plated AWG 26 cable leads, and includes motor protection against reversed polarity and rotor blockage. It is approved by VDE, CSA, and UL.
414JHH Fan Parameters
Manufacturer: ebmpapst
Model: 414JHH
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 18-27 V
Current Rating: 0.15 A
Power Consumption: 3.6 W
Airflow: 24 m³/h
Speed: 13000 RPM
Noise Level: 46 dB(A)
Weight: 0.05 kg
Bearing Type: Ball bearing
Termination: Cable Leads (AWG 26, stripped and tin-plated)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 °C to 60 °C
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Motor Protection: Protection against reverse polarity and blocked rotor.
Service Life: L10 at 40 °C 57500 h; L10 at maximum temperature 35000 h
Approval: VDE, CSA, UL
Option: Speed signal
Application
The 414JHH fan is suitable for applications that require high airflow in a very compact form factor, such as in micro-electronics, IT equipment, and embedded systems， inverter fan.
