Description

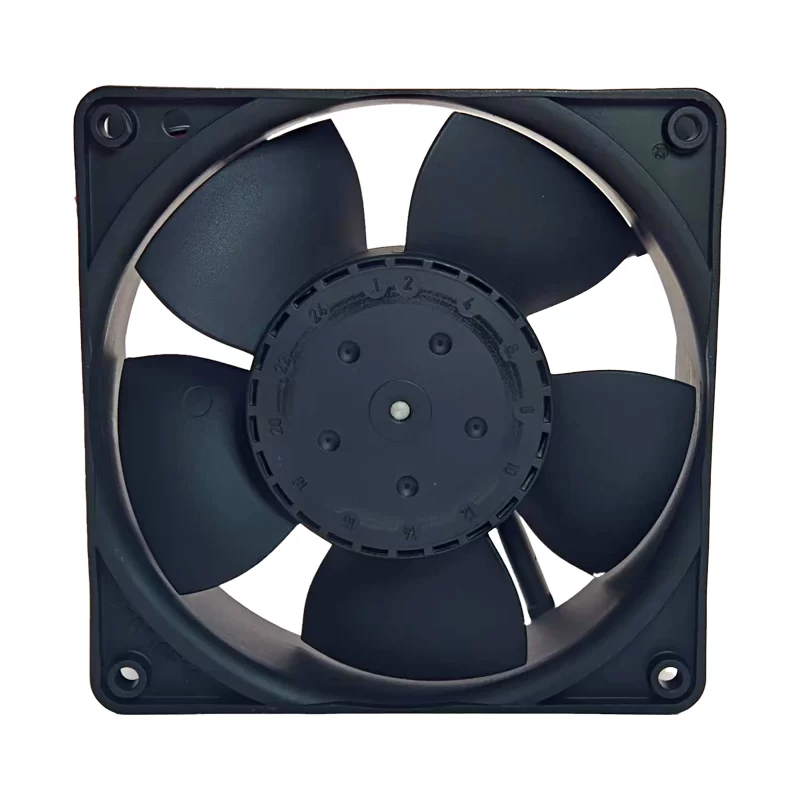

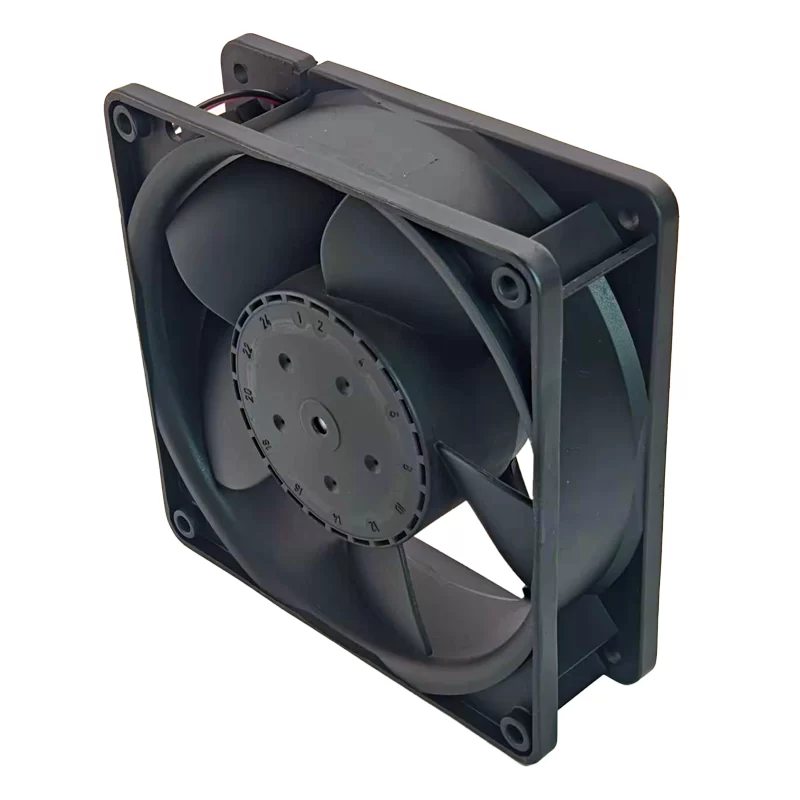

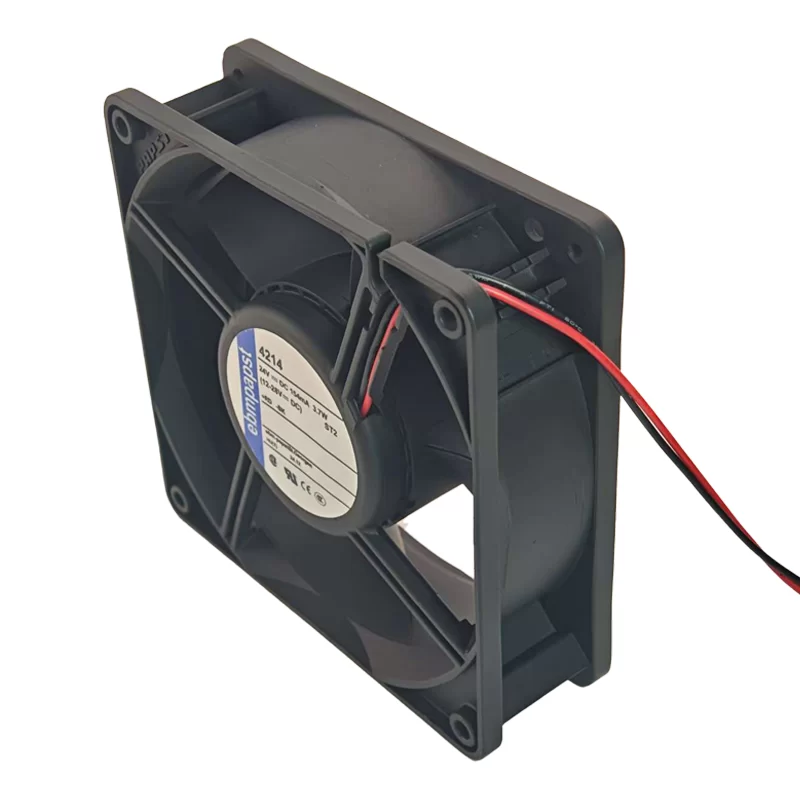

The ebmpapst 4214 is a high-quality DC axial fan, featuring compact dimensions of 119mm x 119mm x 38mm. This fan is engineered for efficient and reliable cooling in a wide range of electronic and industrial applications requiring a 24 VDC power supply. It provides a robust airflow of approximately 97.1 CFM (165 m³/h) with a nominal speed of 3050 RPM, while maintaining a relatively low noise level of 45 dB(A). The fan consumes 3.7W of power and draws 0.154A of current, operating within a voltage range of 12 VDC to 28 VDC. Constructed with a fiberglass-reinforced plastic housing and impeller, and equipped with ball bearings, the 4214 model ensures a long operational lifespan and stable performance. It also includes integrated protection against reverse polarity and locking, enhancing its durability and safety.
4214 Fan Parameters
Model: 4214
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 VDC – 28 VDC
Rated Current: 0.154A
Power Consumption: 3.7 W
Speed: 3050 RPM
Airflow: 97.1 CFM (165 m³/h)
Static Pressure: 0.064 inch H2O (16.1 Pa)
Noise Level: 45 dB(A)
Bearing Type: Ball Bearing
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Termination: 2-Wire Leads
Operating Temperature: -20°C to +75°C
Life Expectancy: 62,500 hours (L10 at 40°C)
Weight: 290 g
Features: Electronically commutated external rotor motor, Integrated commutation electronics, Protected against reverse polarity, Protected against locking and overload.
Application: Electronic equipment, control cabinets, telecommunications, medical devices, automation systems, general cooling in DC-powered systems.
