Description

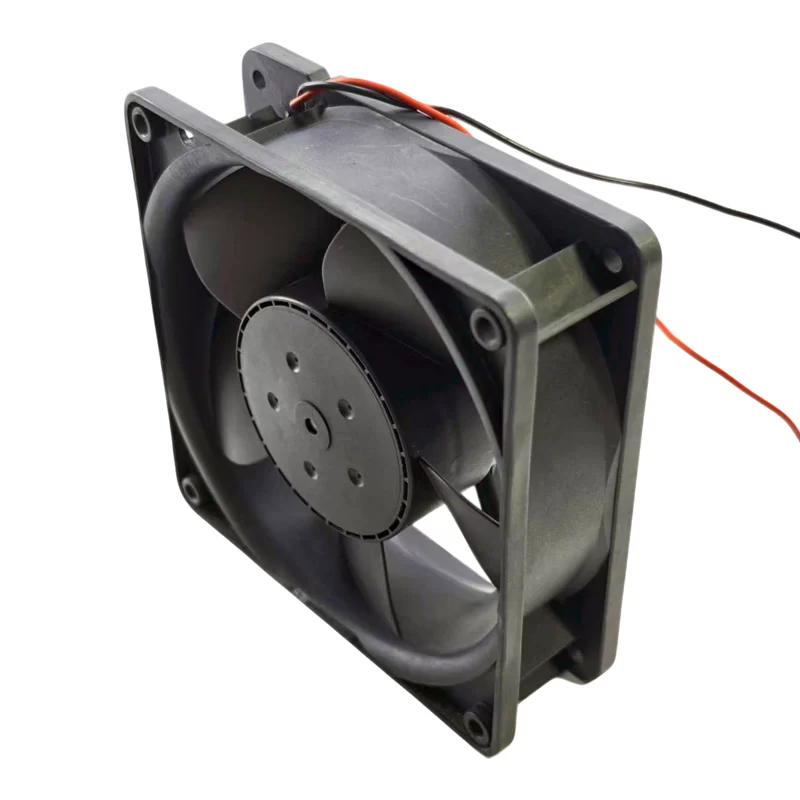

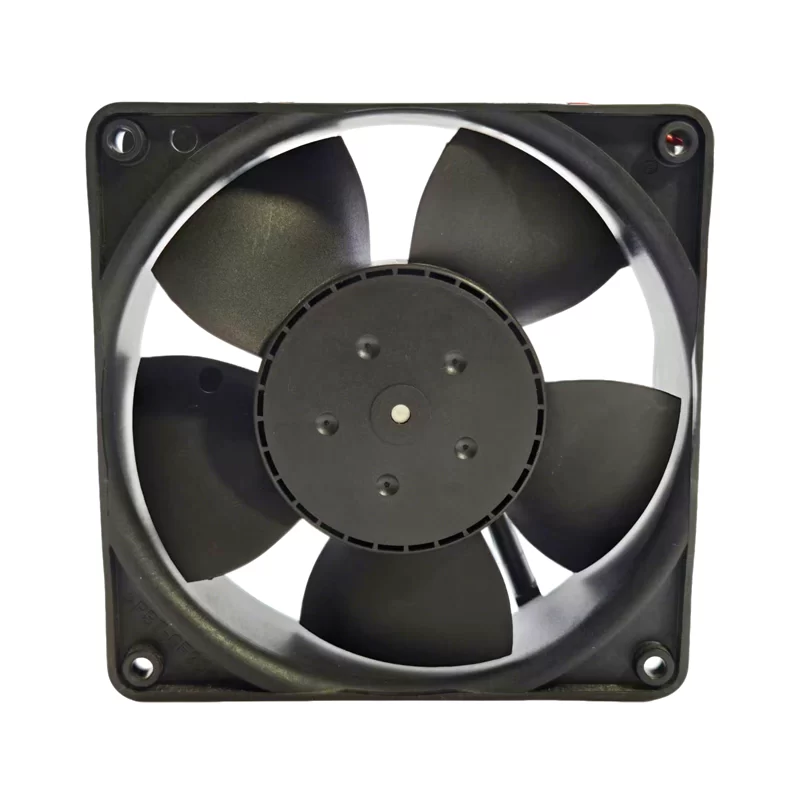

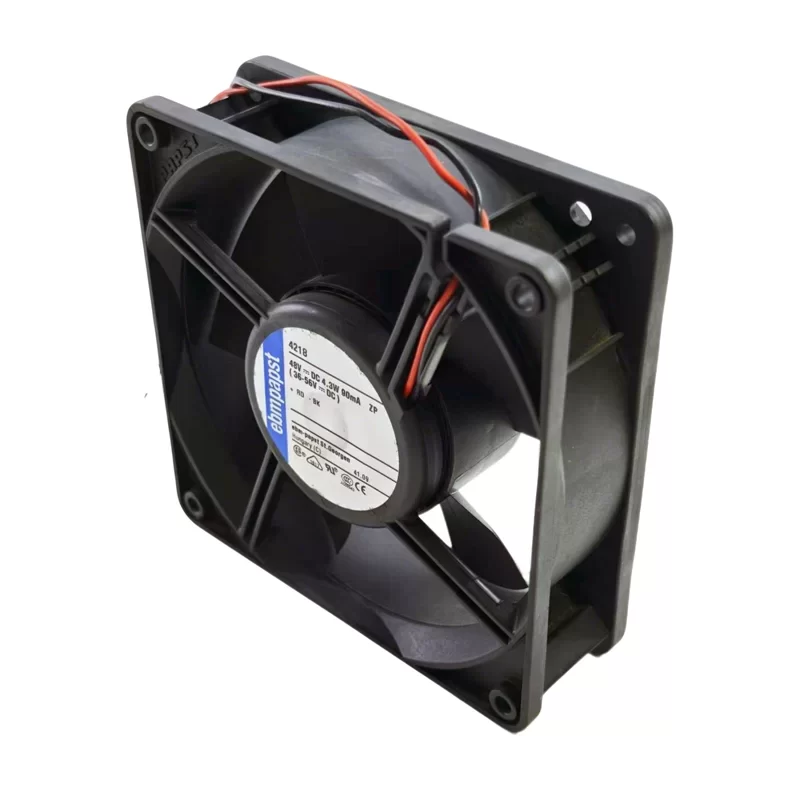

The ebmpapst 4218 is a high-performance DC axial fan measuring 120 x 120 x 38 mm and weighing 0.29 kg. It operates on 48V DC, drawing 90 mA (0.09 A) of current and consuming 4.3 W of power. The fan delivers an airflow of 165 m³/h (97.1 CFM), runs at a speed of 3050 RPM, and has a noise level of 45 dB(A). It is constructed with fiberglass-reinforced PBT plastic housing and PA plastic impeller, and uses ball bearings for a long service life of 62500 hours at 40 °C. The fan is approved by VDE, CSA, UL, and CE.
Fan Parameters
Manufacturer: ebmpapst
Model: 4218
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 48V DC
Voltage Range: 36-56V
Current Rating: 90 mA (0.09 A)
Power Consumption: 4.3 W
Airflow: 165 m³/h (97.1 CFM)
Speed: 3050 RPM
Noise Level: 45 dB(A)
Bearing Type: Ball bearings
Termination: Two Wire Leads
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Operating Temperature: -20 °C ~ 75 °C
Weight: 0.29 kg
Lifetime: L10 at 40 °C is 62500 h
Approvals: VDE, CSA, UL, CE
Application
The ebmpapst 4218 is suitable for various electronic and industrial applications requiring a reliable, high-performance fan with a wide voltage range. It is commonly used in telecommunications equipment, power supplies, and medical devices that require a durable and long-lasting cooling solution.
