Description

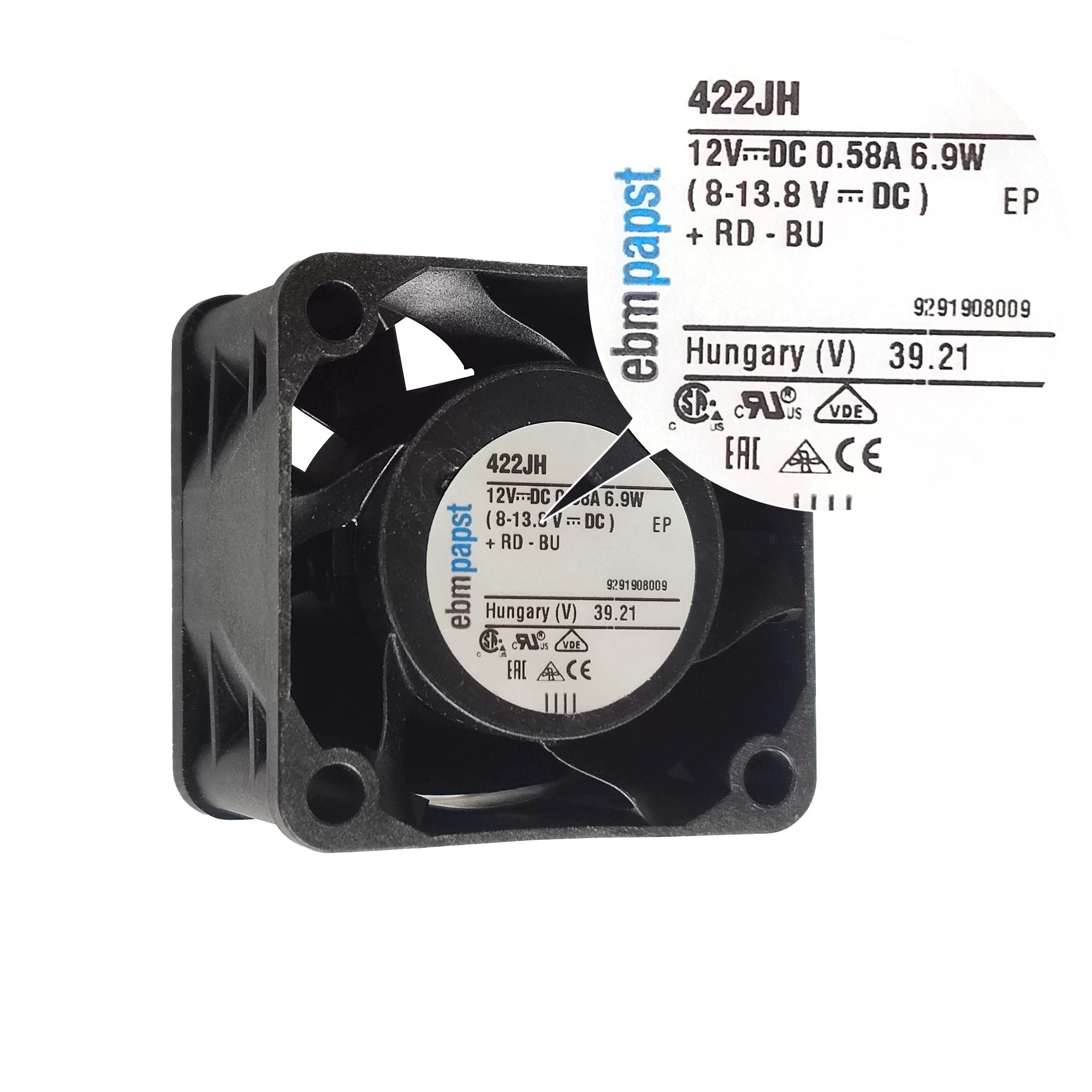

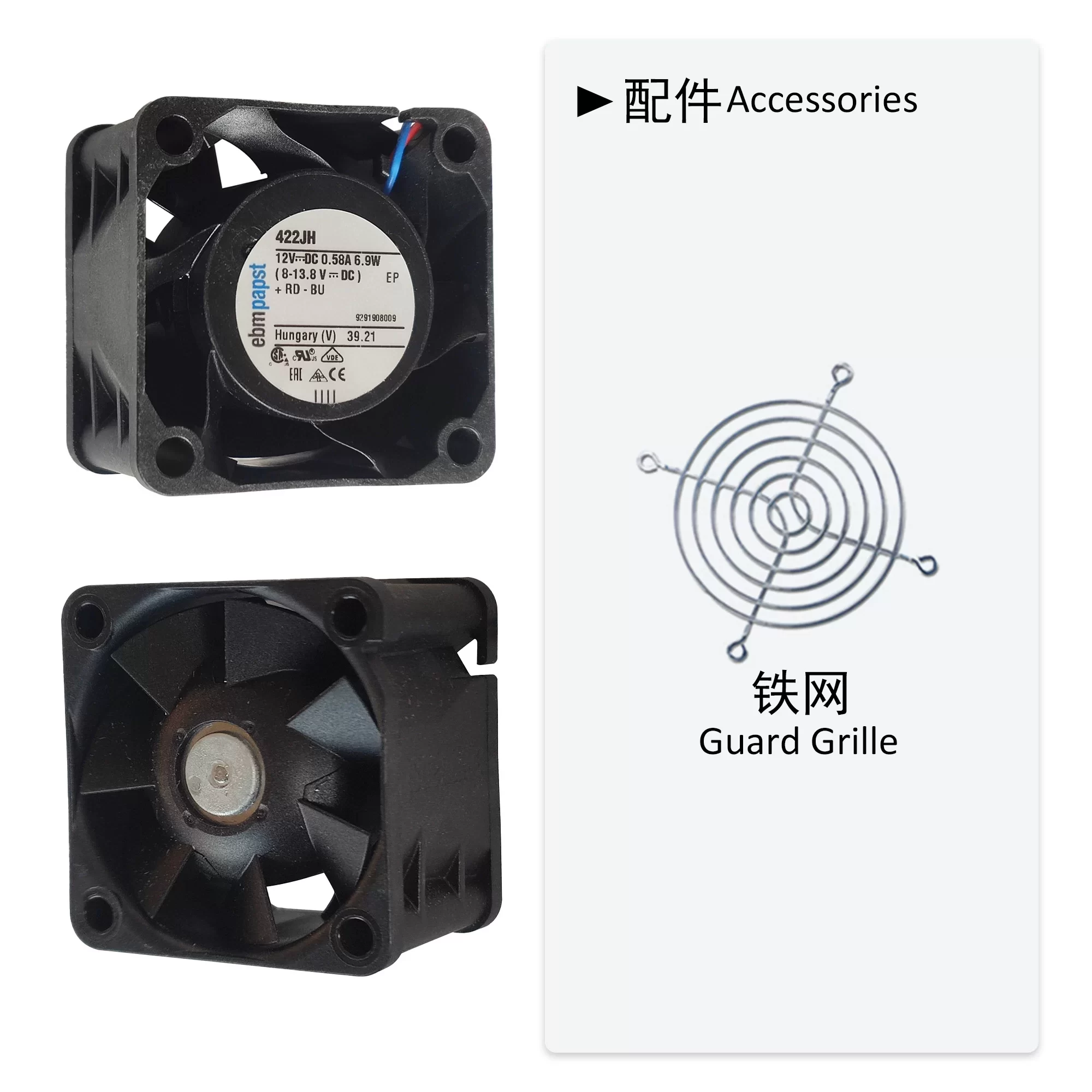

The ebmpapst 422JH is a compact 12V DC axial fan with dimensions of 40x40x28mm, designed for efficient cooling in space-constrained applications. Operating within an 8-13.8V range, it consumes 6.9W of power. This fan delivers an airflow of 38m³/h at a high speed of 17250RPM, with a noise level of 54dB(A). Featuring reliable ball bearings and 2 wire leads, it’s built with a durable plastic frame and impeller, ensuring dependable performance within an ambient temperature range of -20 to 70°C, and is certified by VDE, CSA, and UL.
422JH Fan Parameters
Manufacturer: ebmpapst
Model: 422JH
Fan Type: Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 8 ~ 13.8 VDC
Power Consumption: 6.9 W
Airflow: 38 m³/h
Speed: 17250 RPM
Noise Level: 54 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 70°C
Frame Material: Plastic
Blade Material: Plastic
IP Rating: IP20
Weight: 0.045 kg
Approval Agency: VDE, CSA, UL
Application: This ebmpapst DC axial fan is suitable for cooling small electronic devices, embedded systems, and other applications where
