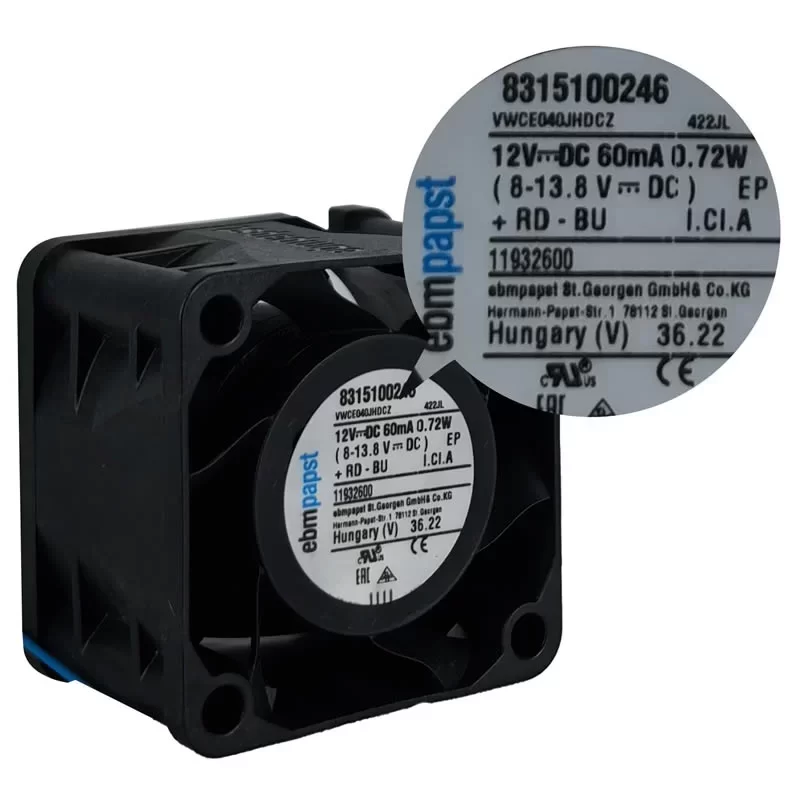

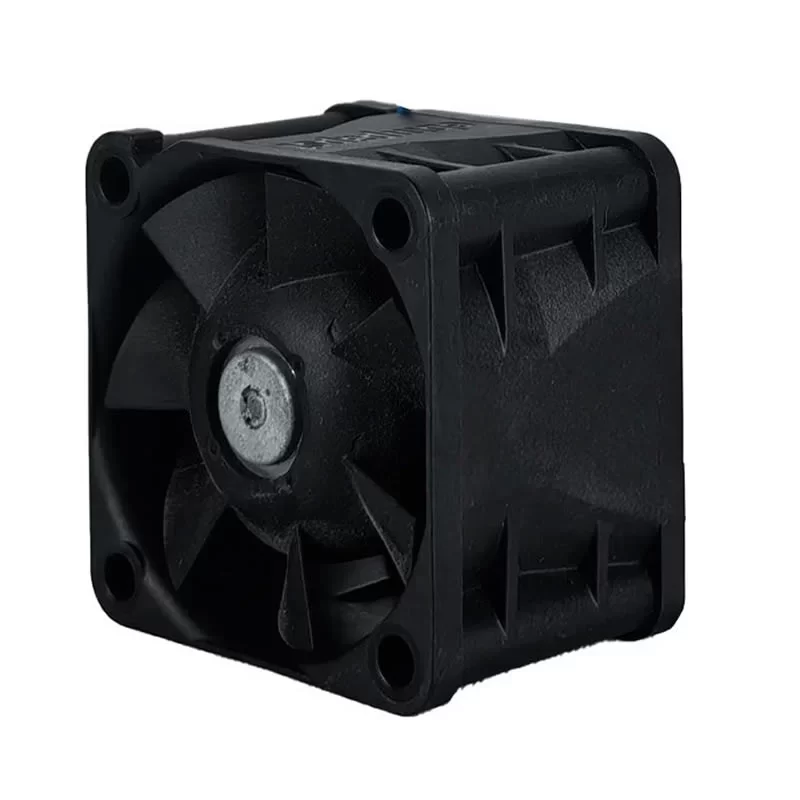

422JL ebmpapst 12V 60mA 0.72W 40x40x28mm DC Axial Fan

Description

The ebmpapst 422JL (Part No. 8315100246) is a high-efficiency 12 VDC axial fan from the S-Panther series, specifically optimized for low-power and noise-sensitive cooling applications in compact environments. Featuring the specialized VWCE040JHDCZ technical configuration, this 40 x 40 x 28 mm unit operates at a remarkably low nominal current of 60 mA with a power consumption of only 0.72 W. Driven by a precision brushless motor, it is designed to deliver consistent airflow while overcoming internal resistance through its high-depth housing architecture. The robust design utilizes glass-fiber reinforced plastic for both the housing and impeller, ensuring structural integrity and minimized vibration. Equipped with premium ball bearings and comprehensive electronic protection against reverse polarity and locked-rotor conditions, the 422JL provides a professional-grade, long-life cooling solution for portable electronics and medical devices across a wide DC voltage range of 8-13.8 V.

422JL Fan Parameters
Model Number: 422JL
Part Number: 8315100246
Series Reference: VWCE040JHDCZ
Manufacturer: ebmpapst
Series: S-Panther Series
Type: DC Axial Fan
Size: 40 mm
Dimensions: 40 x 40 x 28 mm
Weight: 0.045 kg
Bearing Type: Ball Bearing
Nominal Voltage: 12 VDC
Voltage Range: 8.0 – 13.8 VDC
Power Consumption: 0.72 W
Nominal Current: 60 mA
Speed: 6000 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 14.0 m³/h
Actual Static Pressure: 65 Pa
Sound Power Level: 4.0 Bel(A)
Sound Pressure Level: 23 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Electronic protection against reverse polarity and locked-rotor
Insulation Class: Class E
Electrical Hookup: 2 Lead wires (Red: +12V; Blue: GND)
Number of Blades: 5
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Air outlet over struts
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Glass-fiber reinforced plastic (PBT)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -20 – +70 °C
Service Life (L10 @ 40 °C): 82500 h
Standard Compliance: EN 60950-1, CE
Approval Agency: VDE, UL, CSA

Application
The ebmpapst 422JL axial fan is primarily utilized in portable medical devices, compact network routers, high-end laboratory instrumentation, quiet-running power supplies, and small-scale electronic enclosures.
