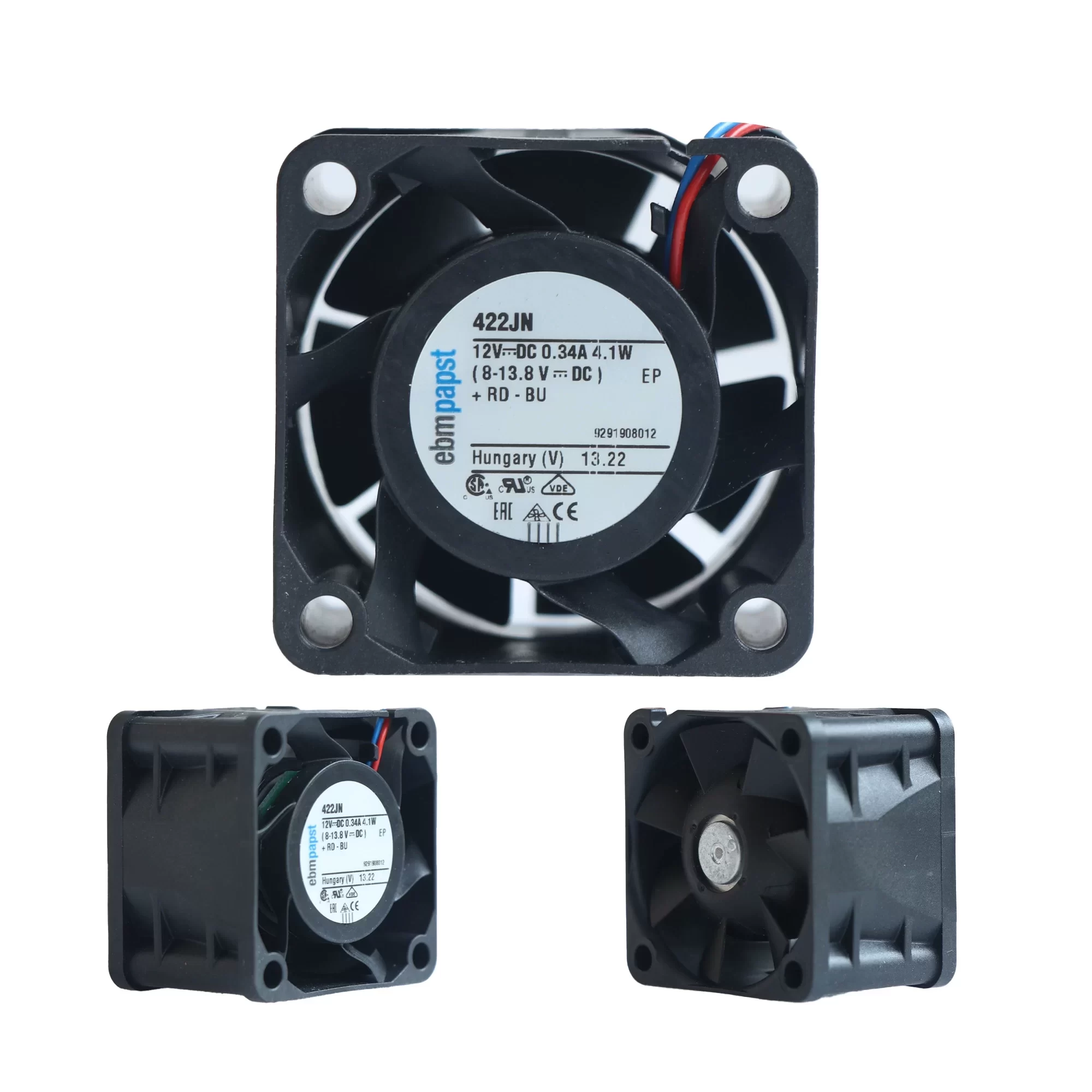

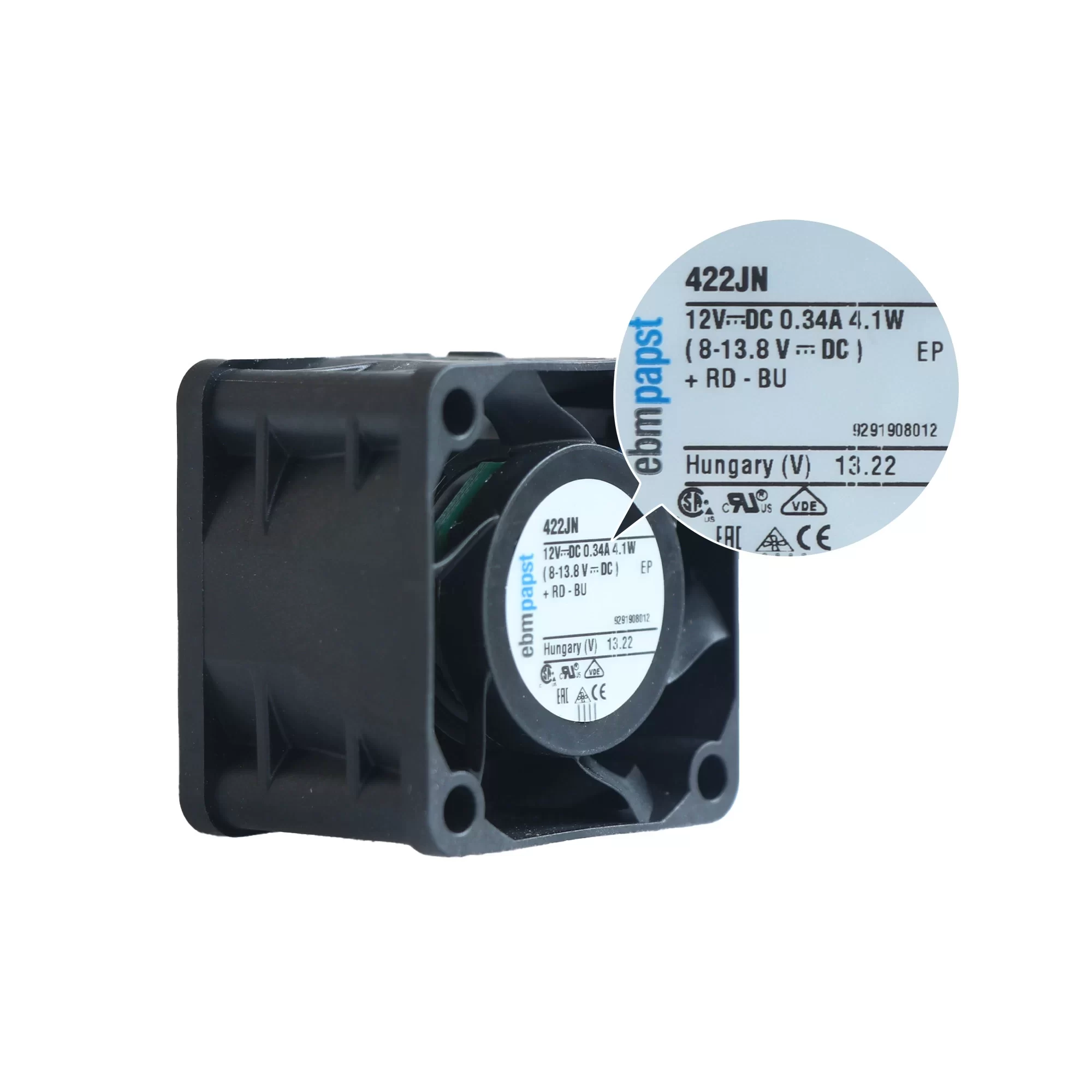

422JN ebmpapst 12V DC Axial Fan

Description

The ebmpapst 422JN is a 12VDC axial fan with dimensions of 40 x 40 x 28 mm. Operating within an 8-13.8VDC range, it draws 0.34A of current and consumes 4.1W of power. This fan delivers an airflow of 31m³/h (18CFM) and operates at a high speed of 14250RPM, with a noise level of 48dB(A) and a sound power level of 6.0Bels. Featuring durable ball bearings and two wire leads for connection, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C, with a typical service life of 67,500 hours at 20°C and 35,000 hours at 60°C.

422JN Fan Parameters
Manufacturer: ebmpapst
Model: 422JN
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 8 ~ 13.8 VDC
Current Rating: 0.34 A
Power Consumption: 4.1 W
Airflow: 31 m³/h (18 CFM)
Speed: 14250 RPM
Noise Level: 48 dB(A)
Sound Power Level: 6.0 Bels
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 67,500 Hours (at 20°C), 35,000 Hours (at 60°C)
Housing Material: Plastic (Fiberglass-reinforced PBT plastic)
Impeller Material: Plastic (Fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 0.045 kg
Approval Agency: VDE, CSA, UL
Application: This ebmpapst DC axial fan is suitable for compact electronic devices, small enclosures, and systems requiring efficient spot cooling with high airflow.
