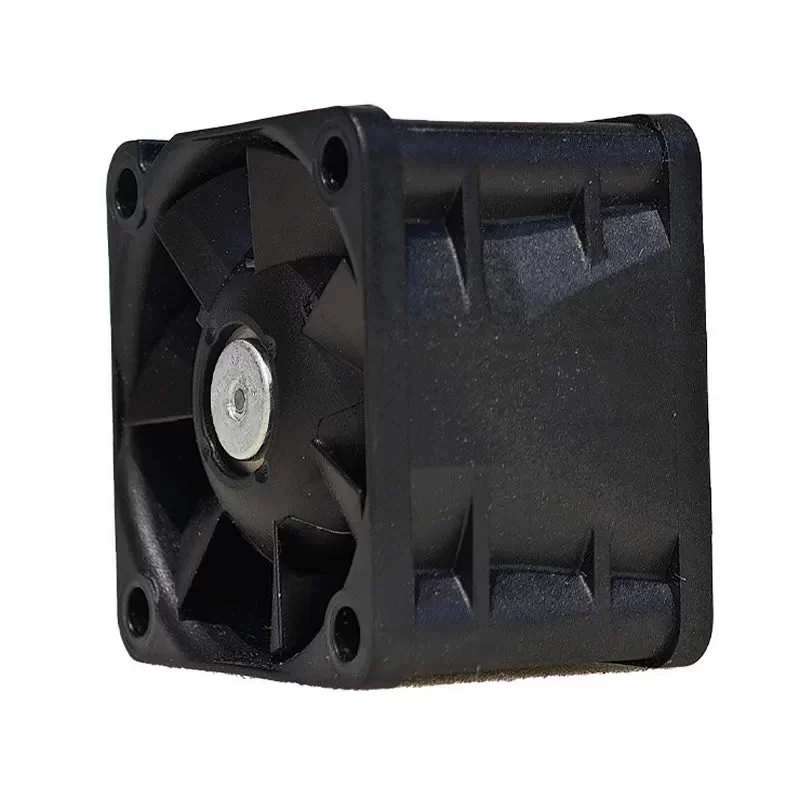

424J/2HP ebmpapst 24V 0.28A 40x40x28mm DC Axial Fan

Description

The ebmpapst 424J/2HP (Part No. 9291908006) is an ultra-high-performance 24 VDC axial fan from the S-Panther series, specifically engineered for intense thermal management in space-constrained electronic environments. Driven by a sophisticated 4-wire interface, this unit is part of the VWCE040JJDES series and delivers a powerful airflow at a rated speed of 17250 RPM. Operating with a nominal current of 0.28 A and a power consumption of 6.9 W, it generates significant static pressure of 530 Pa, making it ideal for cooling high-density server blades and compact power modules. The robust design features glass-fiber reinforced plastic housing and impellers, combined with premium ball bearings to ensure durability under extreme high-speed operation. The 424J/2HP provides professional-grade precision cooling with PWM speed control and Tacho feedback across a wide DC voltage range of 16-26.4 V.

424J/2HP Fan Parameters
Model Number: 424J/2HP
Part Number: 9291908006
Series Reference: VWCE040JJDES
Manufacturer: ebmpapst
Series: S-Panther Series
Type: DC Axial Fan
Size: 40 mm
Dimensions: 40 x 40 x 28 mm
Weight: 0.045 kg
Bearing Type: Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 16.0 – 26.4 VDC
Power Consumption: 6.9 W
Nominal Current: 0.28 A
Starting Current: 0.9 A
Speed: 17250 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 38.0 m³/h
Actual Static Pressure: 530 Pa
Sound Power Level: 6.6 Bel(A)
Sound Pressure Level: 54.0 dB(A)
Control Input: PWM
Output Signal: Tacho (Speed signal)

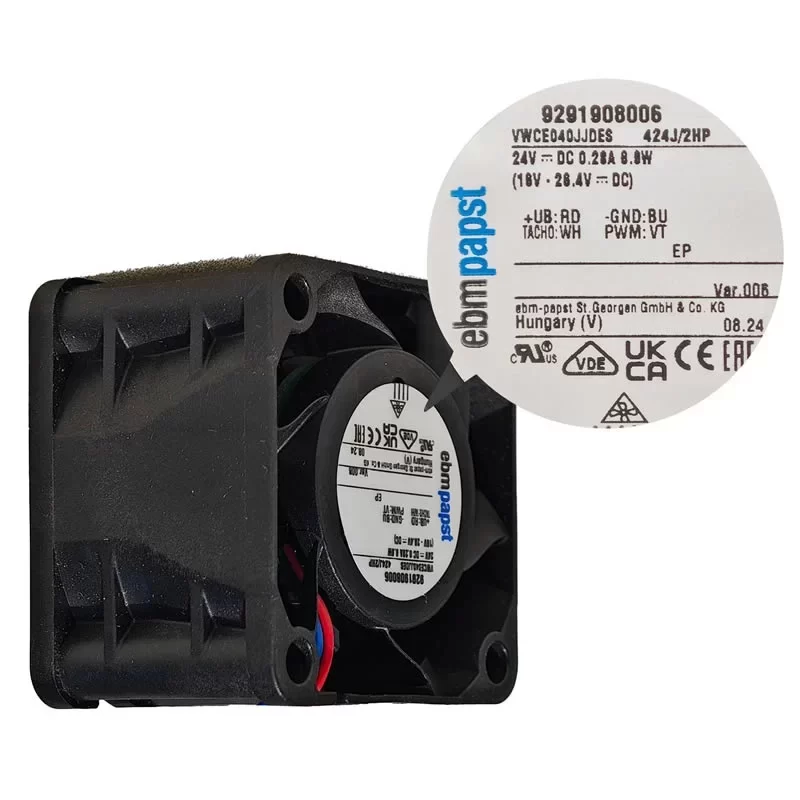

Electrical Hookup: 4 Lead wires (Red: +24V; Blue: GND; Violet: PWM; White: Tacho)
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: Air outlet over struts
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Glass-fiber reinforced plastic (PBT)
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -20 – +65 °C
Service Life (L10 @ 40 °C): 60000 h
Standard Compliance: EN 60950-1, CE
Approval Agency: VDE, UL, CSA, EAC

Application
The ebmpapst 424J/2HP axial fan is primarily utilized in high-density server racks, network switches, telecommunications modules, high-performance power supplies, and compact medical diagnostic equipment.
