Description

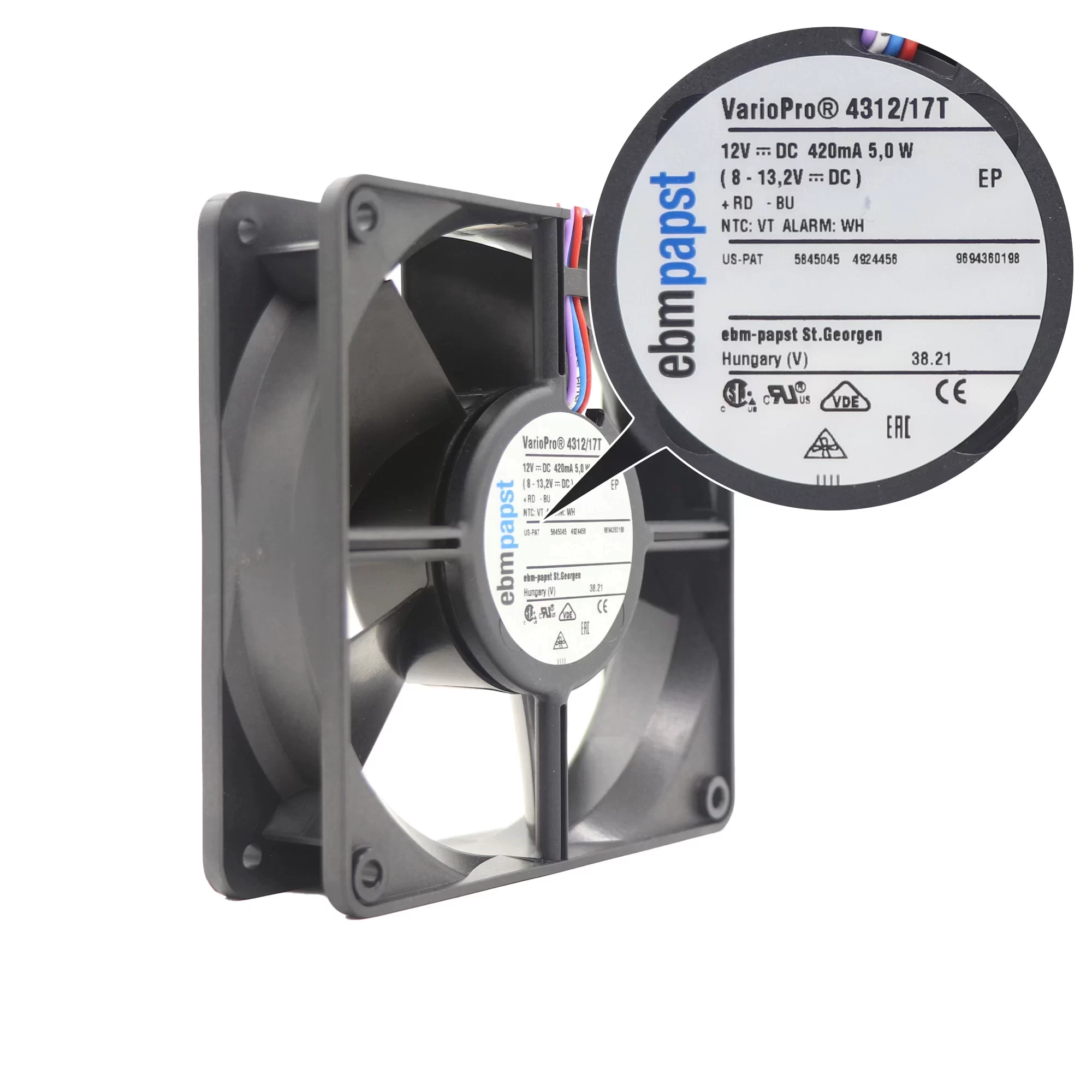

The ebmpapst 4312/17T is a compact 12V DC axial fan with dimensions of 119x119x32mm. Operating within an 8-13.2V range, it draws 420mA of current and consumes 5.0W of power. This fan delivers an airflow of 134m³/h and a static pressure of 17Pa, with a noise level of 45dB(A). Featuring reliable ball bearings and 4 wire leads, it provides a speed signal output for monitoring. Built with a durable plastic frame and impeller, it ensures dependable performance within an ambient temperature range of -20 to 75°C, with a lifetime of 65,000 hours at 40°C, and is certified by CE, EAC, UL, VDE, and CSA.
4312/17T Fan Parameters
Manufacturer: ebmpapst
Model: 4312/17T
Fan Type: Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 8 ~ 13.2 VDC
Current Rating: 420 mA
Power Consumption: 5.0 W
Airflow: 134 m³/h
Static Pressure: 17 Pa
Speed: Not specified
Noise Level: 45 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Fan Features: Speed Signal
Operating Temperature: -20 ~ 75°C
Lifetime @ Temp: 65,000 Hours @ 40°C
Frame Material: Plastic
Blade Material: Plastic
IP Rating: IP20
Weight: 0.23 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, IT equipment, and industrial controls where efficient air movement, precise control, and robust certifications are needed.
