Description

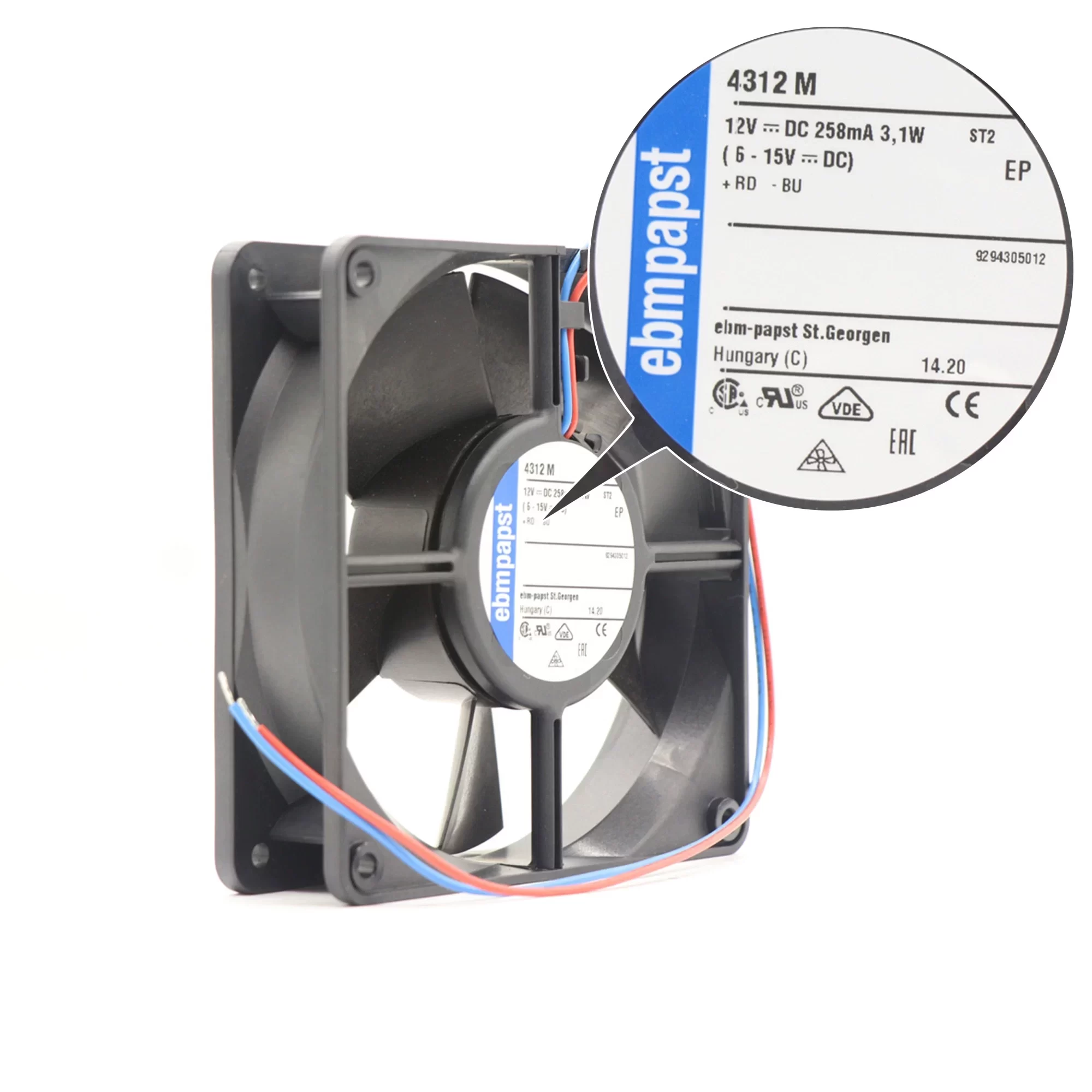

The ebmpapst 4312M is a 12V DC axial fan with dimensions of 119x119x32mm. Operating within a 6-15V range, it draws 258mA of current and consumes 3.1W of power. This fan delivers an airflow of 140m³/h (82CFM) and a static pressure of 48Pa at a speed of 2300RPM, with a noise level of 39dB(A). Featuring durable ball bearings and 2 wire leads, it’s built with a robust plastic frame and impeller, ensuring reliable performance within an ambient temperature range of -20 to 75°C. It is certified by VDE, CSA, UL, and CE, and typically offers a service life of 55,000 hours at 40°C.
4312M Fan Parameters
Manufacturer: ebmpapst
Model: 4312M
Fan Type: Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 ~ 15 VDC
Current Rating: 258 mA
Power Consumption: 3.1 W
Airflow: 140 m³/h (82 CFM)
Static Pressure: 48 Pa
Speed: 2300 RPM
Noise Level: 39 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 75°C
Lifetime @ Temp: 55,000 Hours (at 40°C)
Frame Material: Plastic (PBT, fiberglass reinforced)
Blade Material: Plastic (PA, fiberglass reinforced)
IP Rating: IP20
Weight: 0.22 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, power supplies, and systems where efficient air movement is required.
