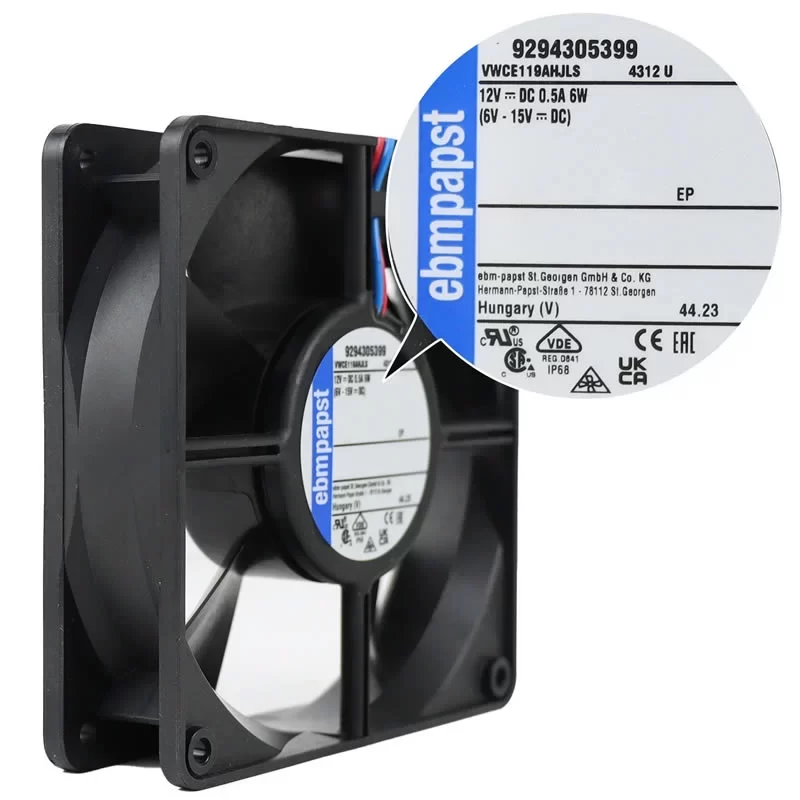

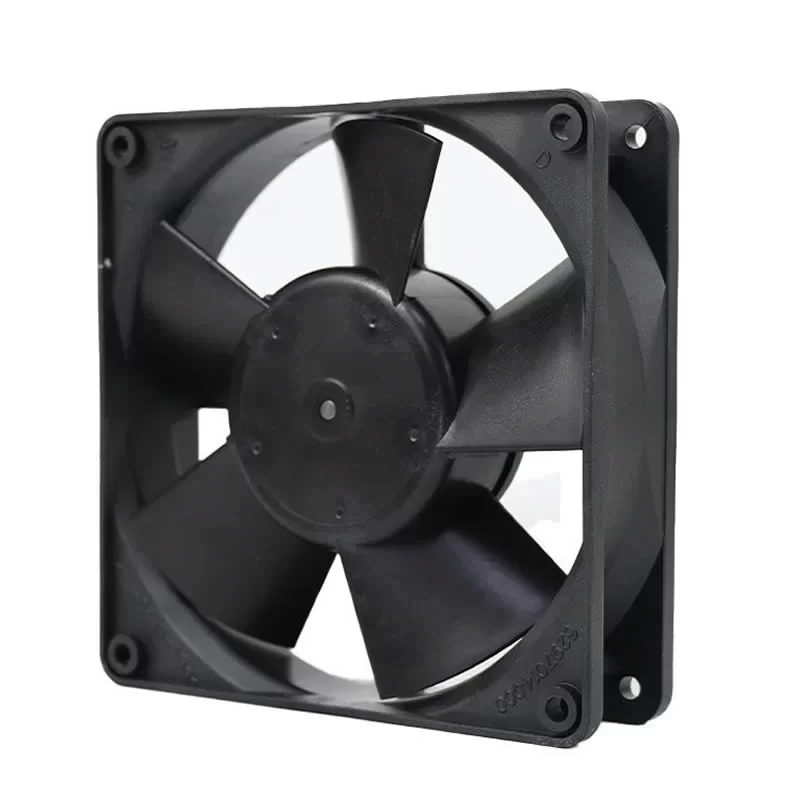

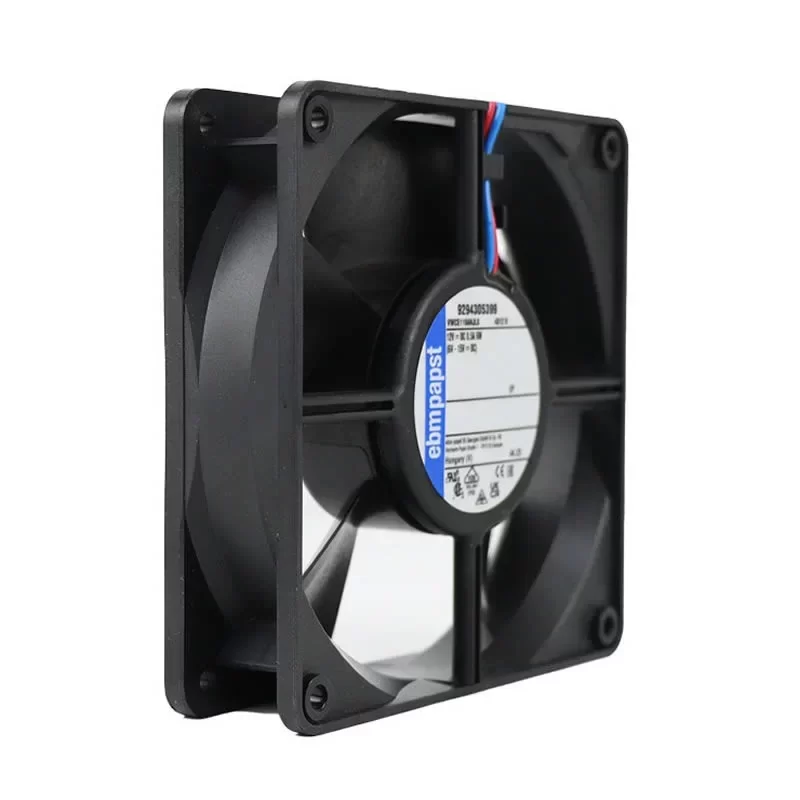

4312U ebmpapst 12V 0.5A 119x119x32mm DC Axial Fan

Description

The ebmpapst 4312U is a high-performance 12VDC IP68-rated DC Axial Fan with dimensions of 119 x 119 x 32 mm, featuring a robust glass-fiber reinforced PBT housing and a 112 mm 5-blade PA impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters. Driven by an electronically commutated external rotor motor with maintenance-free ball bearings, this 0.260 kg unit operates at 12 VDC delivering a Max. Power Consumption of 6.0 W and a Max. Current Draw of 0.5 A at a rated speed of 2800 RPM. This High-performance unit achieves a Max. Air Flow of 100.0 CFM (170.0 m³/h / 2.83 m³/min) and a Max. Static Pressure of 7.95 mmH₂O (78.0 Pa / 0.31 inAq). Fully encapsulated with IP68 protection for continuous immersion and dust-tight performance, this 5-blade unit is optimized for environments requiring extreme reliability and high-static pressure in industrial VFD systems at the end.

4312U Fan Parameters
Model Number: 4312U
Article Number: 9294305399
Manufacturer: ebmpapst
Type: DC Axial Fan
Impeller Size: 112 mm
Dimensions: 119 x 119 x 32 mm
Weight: 0.260 kg
Bearing Type: Ball bearing
Nominal Voltage: 12 VDC
Voltage Range: 6.0 – 15.0 VDC
Connection Type: 2-wire (Leads AWG 22, 310 mm)
Max. Current Draw: 0.5 A
Max. Power Consumption: 6.0 W
Rated Speed: 2800 RPM
Max. Air Flow: 100.0 CFM (170.0 m³/h / 2.83 m³/min)
Max. Static Pressure: 7.95 mmH₂O (78.0 Pa / 0.31 inAq)
Working Air Flow: 170.0 m³/h
Static Pressure Increase: 78.0 Pa
Number of Blades: 5
Sound Power Level: 5.8 Bel(A)
Sound Pressure Level: 45.0 dB(A)
Motor Protection: Locked rotor / Reverse polarity protection
Service Life (L10): 65,000 h (40 °C) / 35,000 h (65 °C)
Degree of Protection: IP68
Housing Material: Plastic (PBT)
Impeller Material: Plastic (PA)
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Intake over struts
Ambient Temperature (Max.): 65 °C
Min. Operating Temperature: -20 °C
Standard Compliance: CE; UL; VDE

Application
The ebmpapst 4312U axial fan is the primary cooling component for industrial frequency converters and outdoor power systems requiring IP68-rated waterproof protection and long-term reliability.
