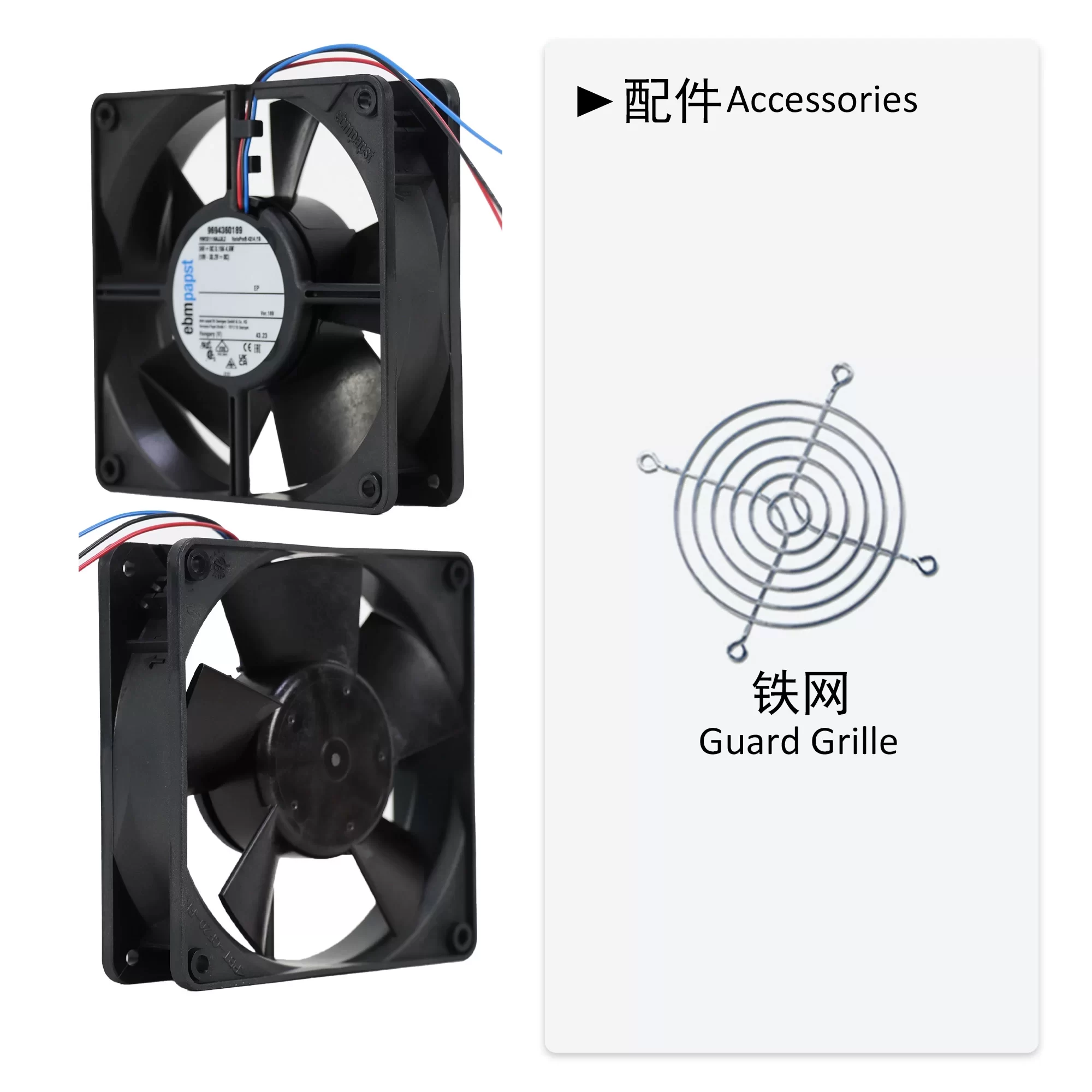

4314/19-189 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4314/19-189 is a 24VDC axial fan with dimensions of 119x119x32mm. Identified by part number 9694360189 and new model VWCE119AJJLZ, it operates within an 18-30.2VDC range. It draws 0.19A of current and consumes 4.6W of power. This fan achieves a static pressure of 78Pa and operates at a speed of 2800RPM. Featuring durable ball bearings and three wire leads for connection, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 60,000hours at 40°C.

4314/19-189 Fan Parameters
Manufacturer: ebmpapst
Model: 4314/19-189

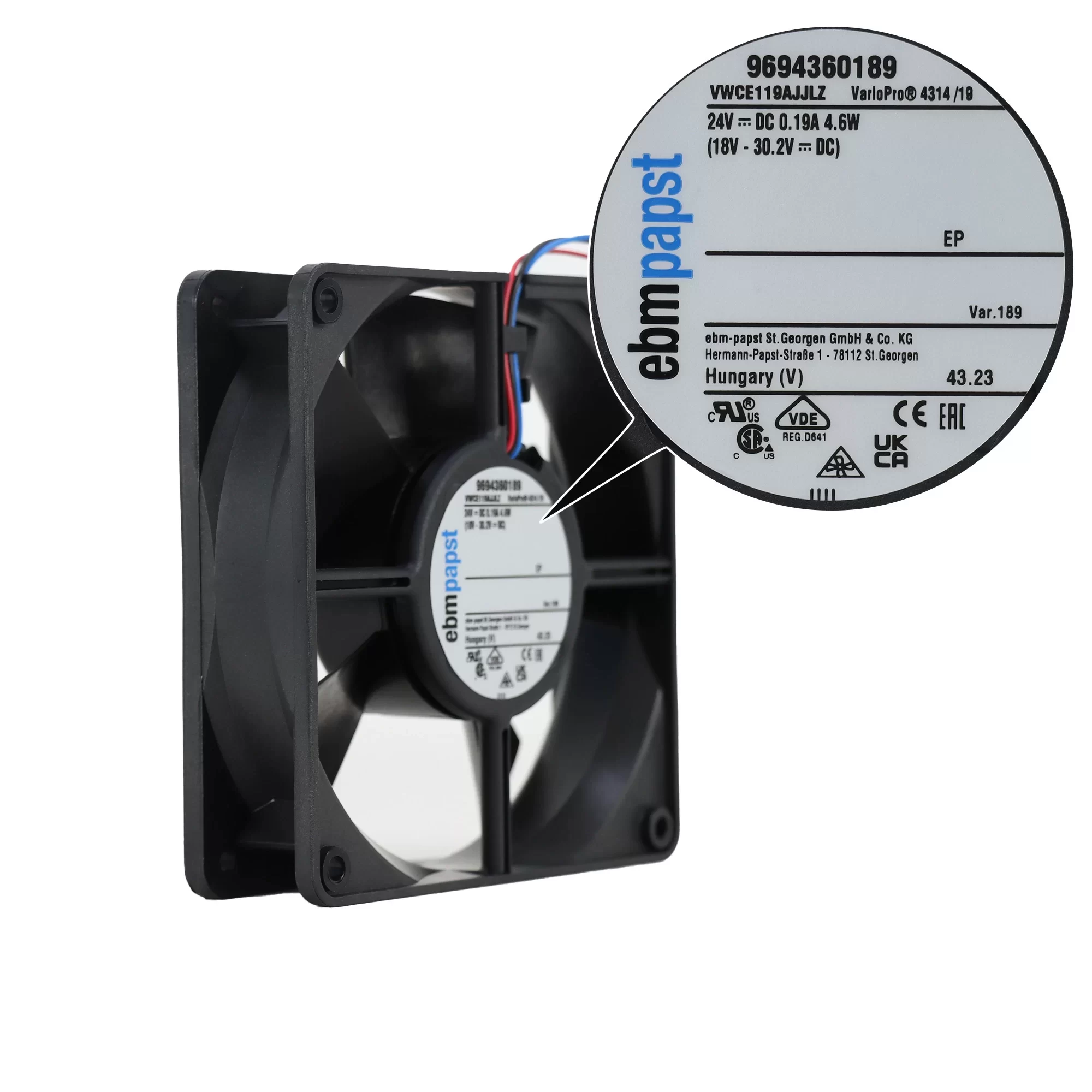

Part number: 9694360189
New Model: VWCE119AJJLZ
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 30.2 VDC
Current Rating: 0.19 A
Power Consumption: 4.6 W
Static Pressure: 78 Pa
Speed: 2800 RPM
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Housing Material: Plastic (Fiberglass-reinforced PBT plastic)
Impeller Material: Plastic (Fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 0.28 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst DC axial fan is suitable for cooling various electronic components and systems where a compact and reliable fan solution is needed.
