Description

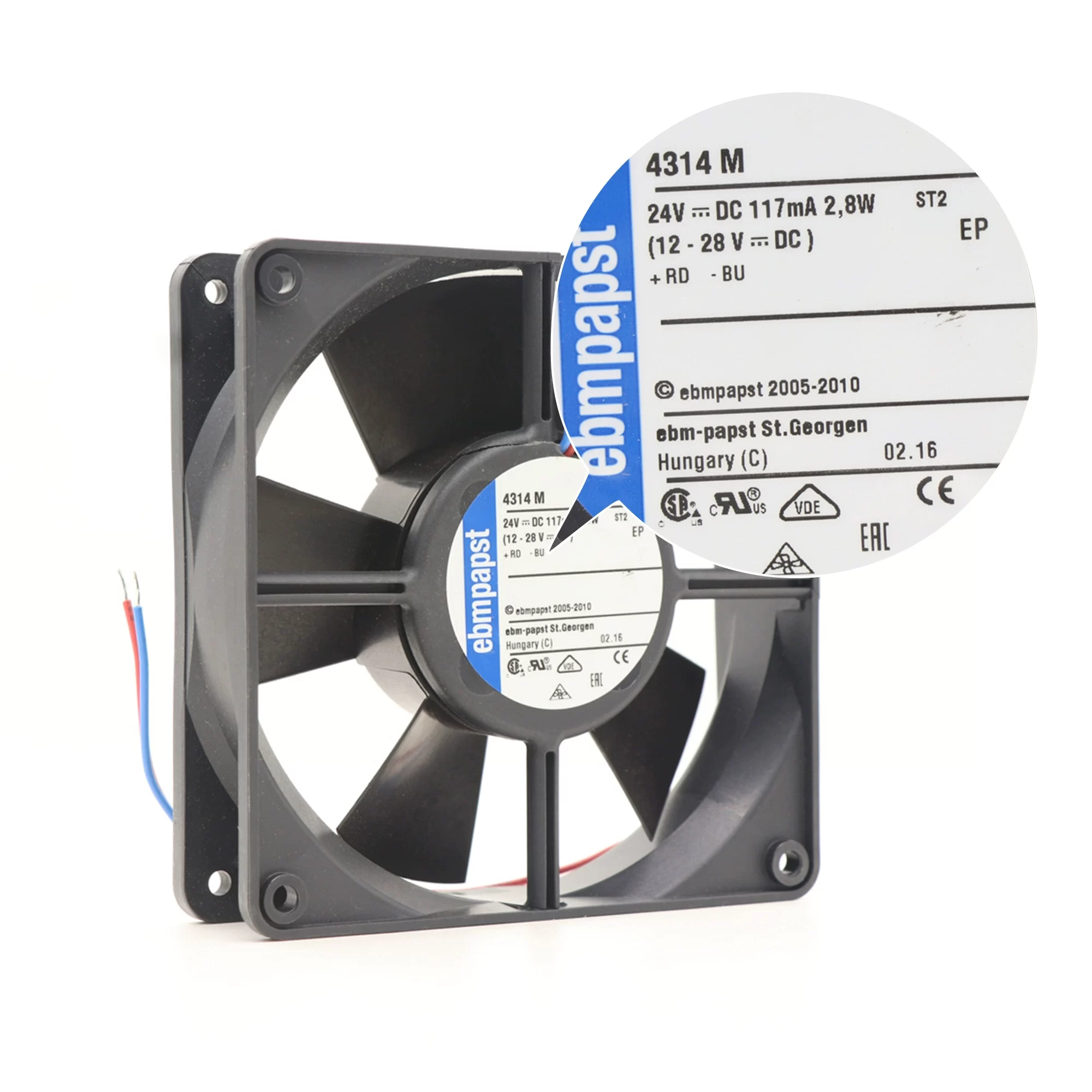

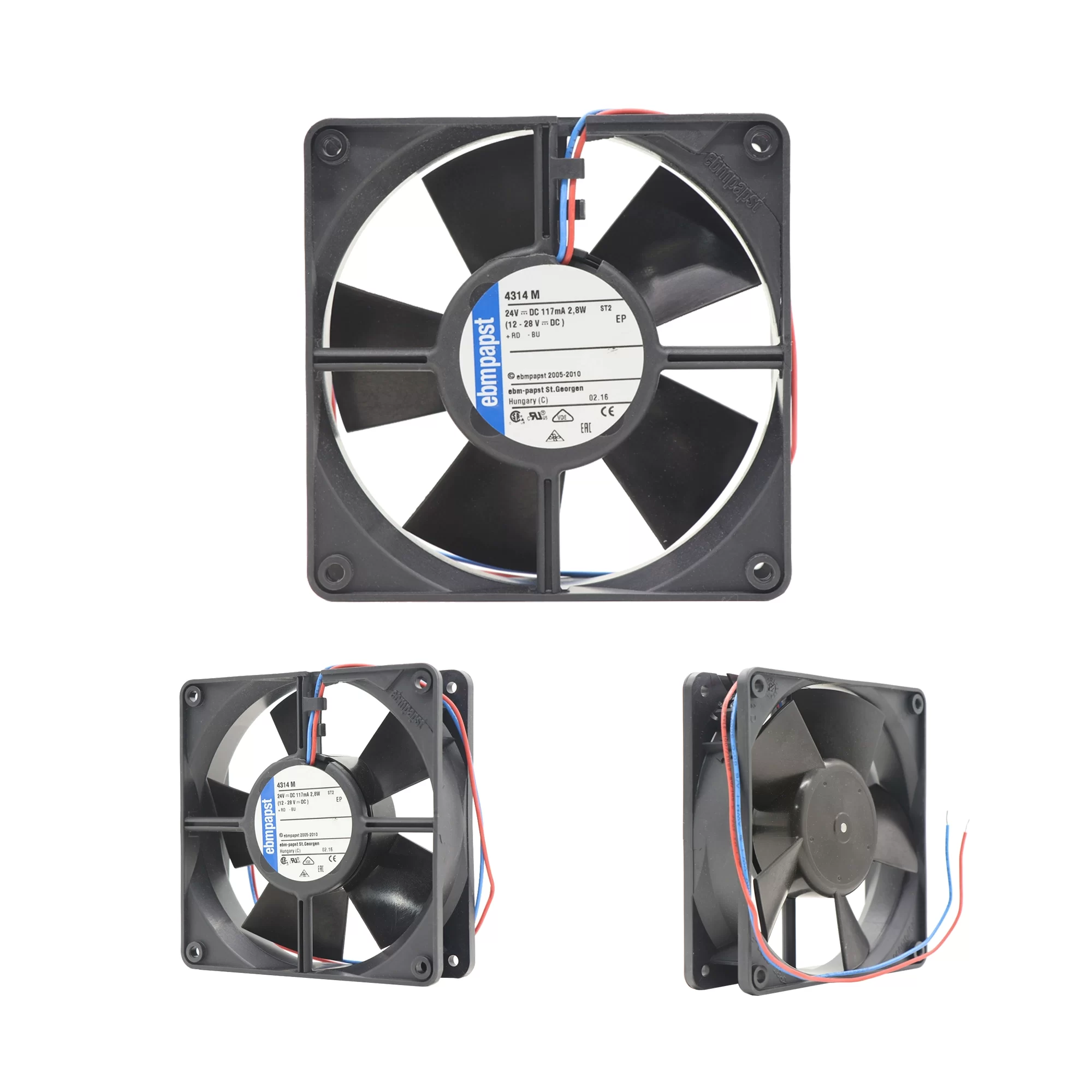

The ebmpapst 4314M is a DC Axial Fan measuring 119x119x32mm. It operates at a nominal voltage of 24VDC with a wide operating voltage range of 12 to 28VDC. This fan draws 0.11A of current, consumes 2.8W of power, achieving a speed of 2300 RPM, and provides an airflow of 140 m³/h (82.4 CFM) at a noise level of 39 dB(A). It is built with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. The fan features a durable ball bearing system and includes protection against reverse polarity and a blocked rotor. It is a reliable solution for cooling electronic components in a variety of industrial and telecommunication applications.
4314M Fan Parameters
Model: 4314M
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 to 28 VDC
Current Draw: 0.11 A
Power Input: 2.8 W
Fan Speed: 2300 RPM
Airflow: 140 m³/h (82.4 CFM)
Noise Level: 39 dB(A)
Bearing Type: Ball Bearing
Weight: 0.220 kg
Termination: 2 Wire Leads
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -20 to 75 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling electronic components in industrial and telecommunication applications.
