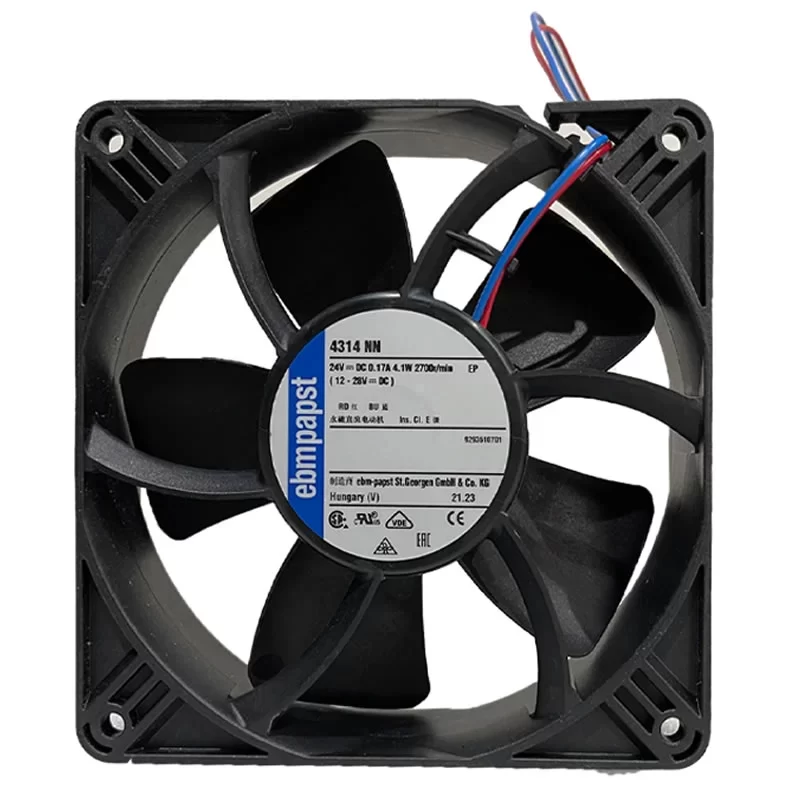

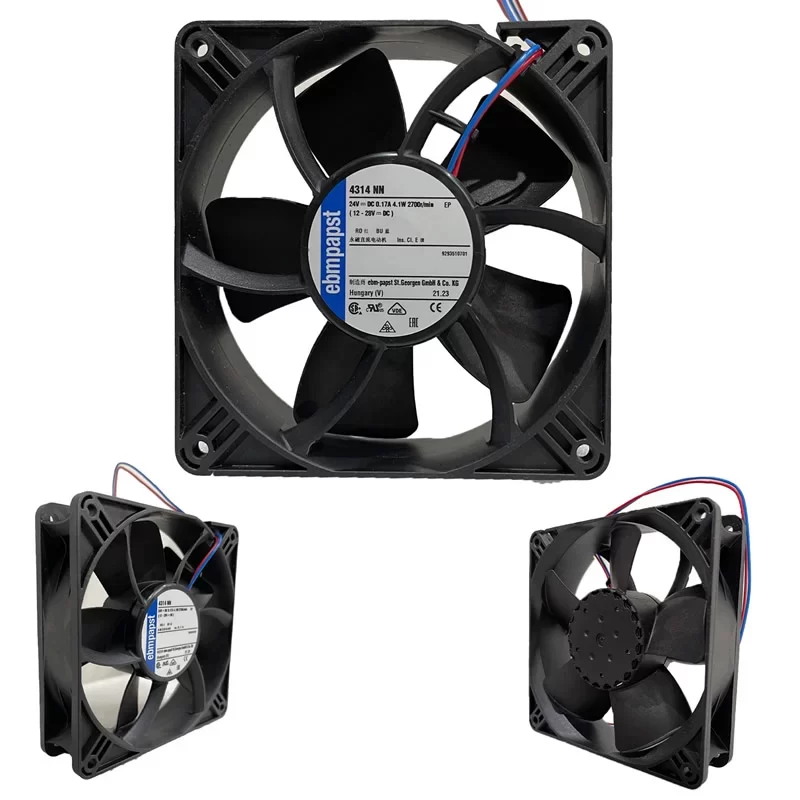

4314NN ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4314NN is a DC Axial Fan with dimensions of 119×119×32 mm from the 4300 N series. It is rated for a nominal voltage of 24 VDC, operating within a voltage range of 12 VDC to 28 VDC. Key performance parameters include a speed of 2700 RPM, a significant airflow of 190 m3/h (equivalent to 110 CFM), and a low power consumption of 4.1 W. It features an acoustically optimized design, offering a quiet operation with a noise level of 43 dB(A). This fan is designed for reliable thermal management in control cabinets, enclosures, and modern electronic machinery.

4314NN Fan Parameters
Model: 4314NN
Manufacturer: ebmpapst
Fan Type: DC Axial Fan (4300 N Series)
Dimensions: 119×119×32 mm
Nominal Voltage: 24 VDC
Voltage Range: 12 VDC to 28 VDC
Speed: 2700 RPM
Air Flow: 190 m3/h
Power Consumption: 4.1 W
Max. Current Rating: 170 mA
Noise Level: 43 dB(A)
Sound Power Level: 5.4 B
Weight: 0.25 kg
Min. Ambient Temperature: −20 ∘C
Max. Ambient Temperature: 75 ∘C
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Bearing: Ball bearing
Service Life L10 at 40 ∘C: 72500 h
Service Life L10 at maximum temperature: 30000 h
Cable: With leads AWG 24, TR 64
Ingress Protection: IP20
Part no.: 9293510701
Approval: CSA, UL, VDE

Application
The 4314NN is optimized for high-performance and low-noise cooling applications. It is particularly suitable for thermal management in control cabinets, electronic enclosures, power supplies, and various modern machinery where quiet, efficient, and long-lasting operation is required.
