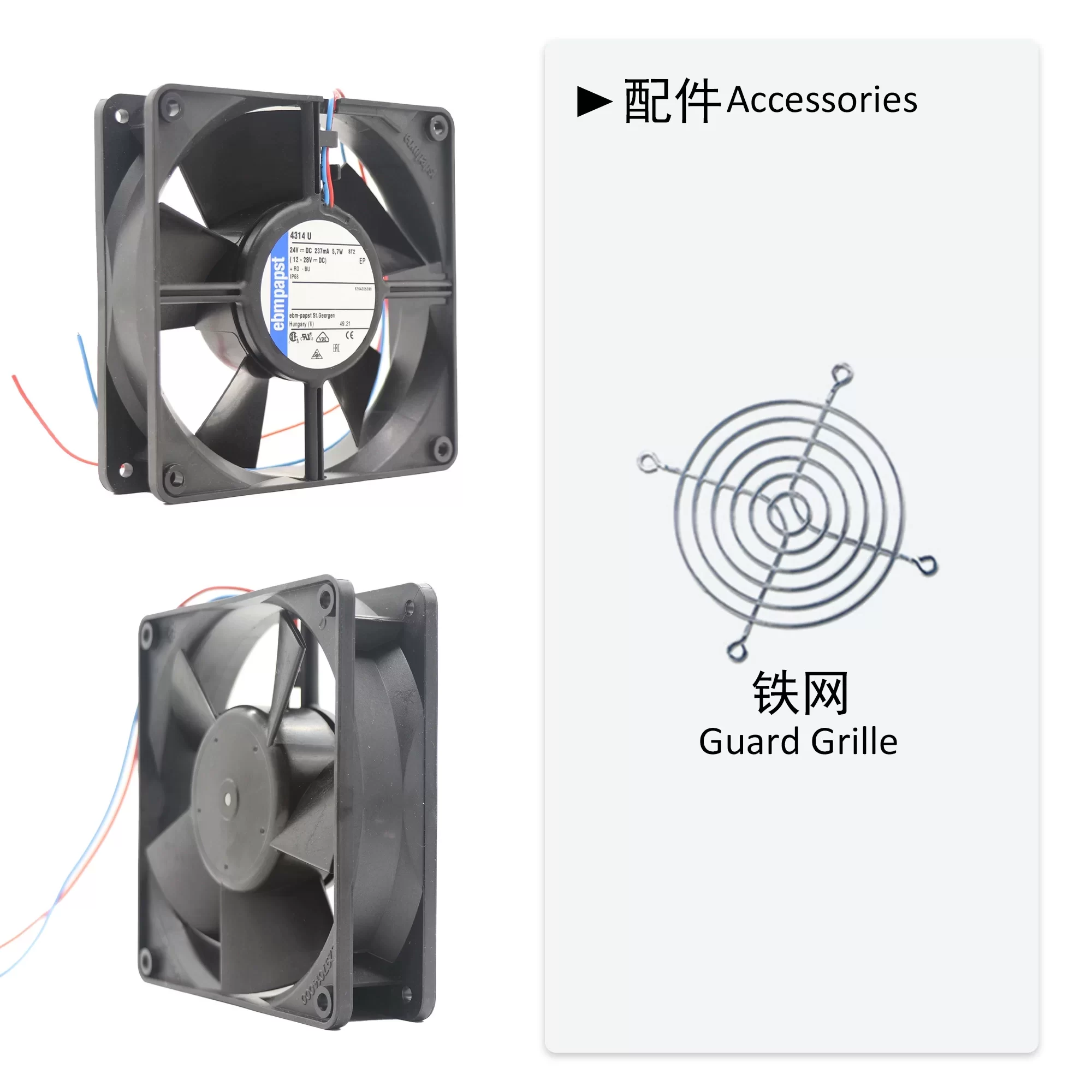

4314U ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4314U is a 24VDC axial fan with dimensions of 119x119x32mm. Operating within a 12-28VDC range, it draws 237mA of current and consumes 5.7W of power. This fan delivers an airflow of 170m³/h (100CFM) and a static pressure of 78Pa. It operates at a speed of 2800RPM, with a noise level of 45dB(A). Featuring durable ball bearings and constructed with plastic housing and impeller, it boasts an IP68 ingress protection rating, making it dust-tight and protected against prolonged immersion in water. It ensures reliable performance within an ambient temperature range of -20 to 70°C.

4314U Fan Parameters
Manufacturer: ebmpapst
Model: 4314U
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 237 mA
Power Consumption: 5.7 W
Airflow: 170 m³/h (100 CFM)
Static Pressure: 78 Pa
Speed: 2800 RPM
Noise Level: 45 dB(A)
Bearing Type: Ball Bearing
Operating Temperature: -20 ~ 70°C
Housing Material: Plastic
Impeller Material: Plastic
Termination: 2 Wire Leads
IP Rating: IP68
Weight: 0.22 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for cooling applications in electronic enclosures, industrial equipment, and other systems where efficient air circulation is needed, particularly in environments requiring high protection against dust and water.
Alternate Part Numbers：9294305398 VWC0119AUJAS
