Description

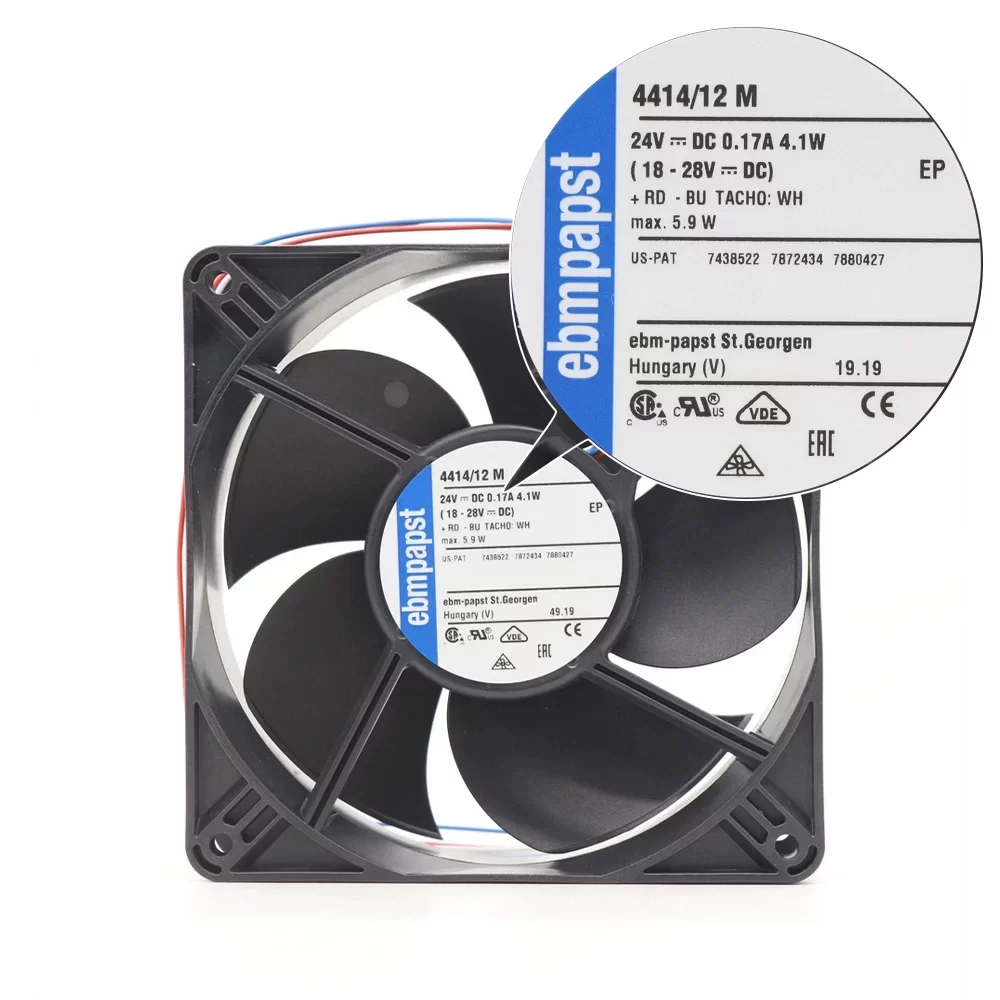

The ebmpapst 4414/12M is a DC Axial Fan measuring 119x119x38mm. It operates on 24VDC with a range of 18 to 28VDC. This fan draws 0.17A of current, consumes 4.1W of power, and achieves a speed of 3300 RPM. It provides an airflow of 184 m³/h (108 CFM) with a static pressure of 103 Pa at a noise level of 43 dB(A). The fan features a durable ball bearing system and has a lifespan of 65000 hours at 40°C. With a speed sensor, it is a reliable solution for cooling electronic components in a variety of industrial and telecommunication applications.
4414/12M Fan Parameters
Model: 4414/12M
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 to 28 VDC
Current Draw: 0.17 A
Power Input: 4.1 W
Fan Speed: 3300 RPM
Airflow: 184 m³/h (108 CFM)
Static Pressure: 103 Pa
Noise Level: 43 dB(A)
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.275 kg
Lifespan: 65000 h at 40°C
Termination: 3 Wire Leads with speed sensor
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -20 to 80 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling electronic components in industrial and telecommunication applications.
