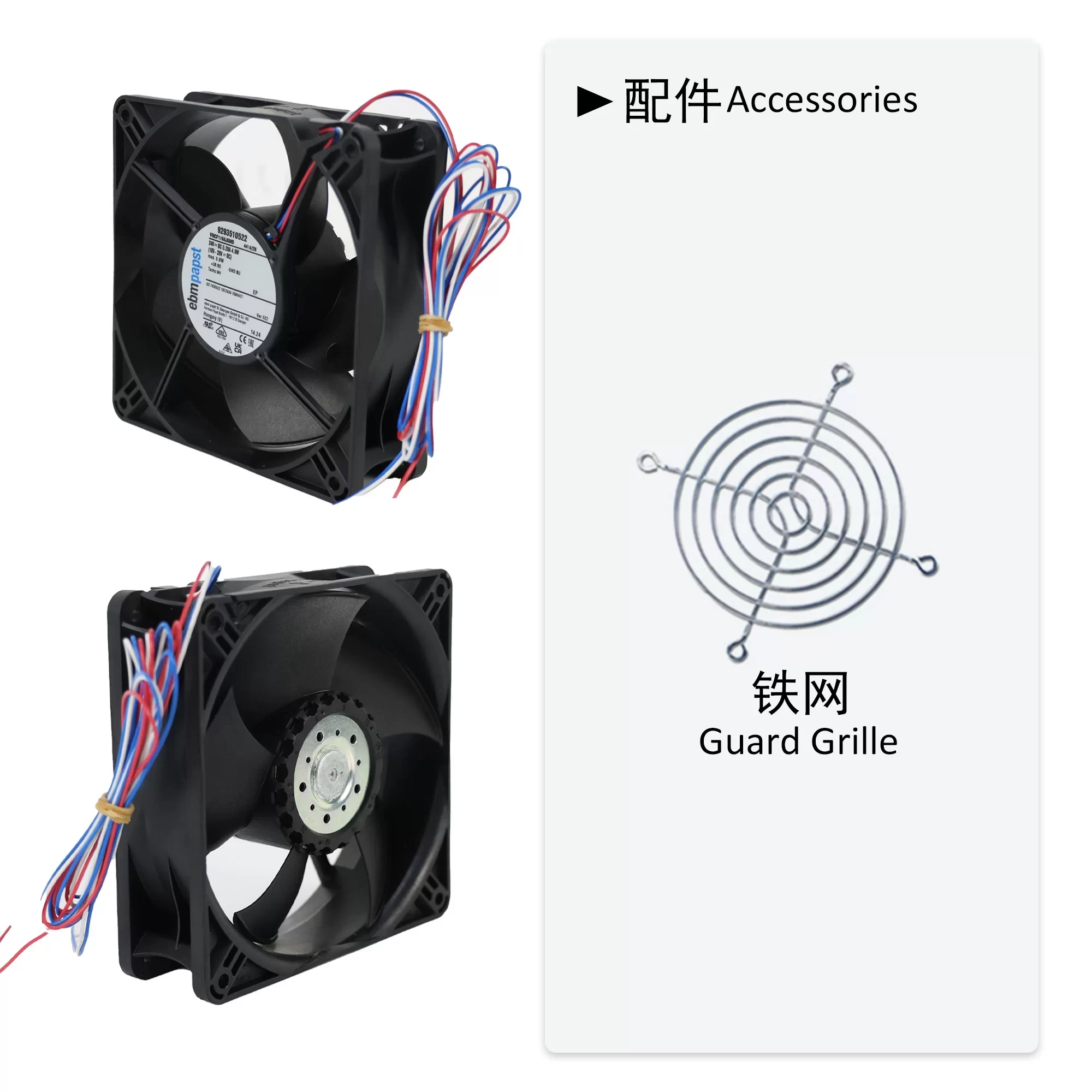

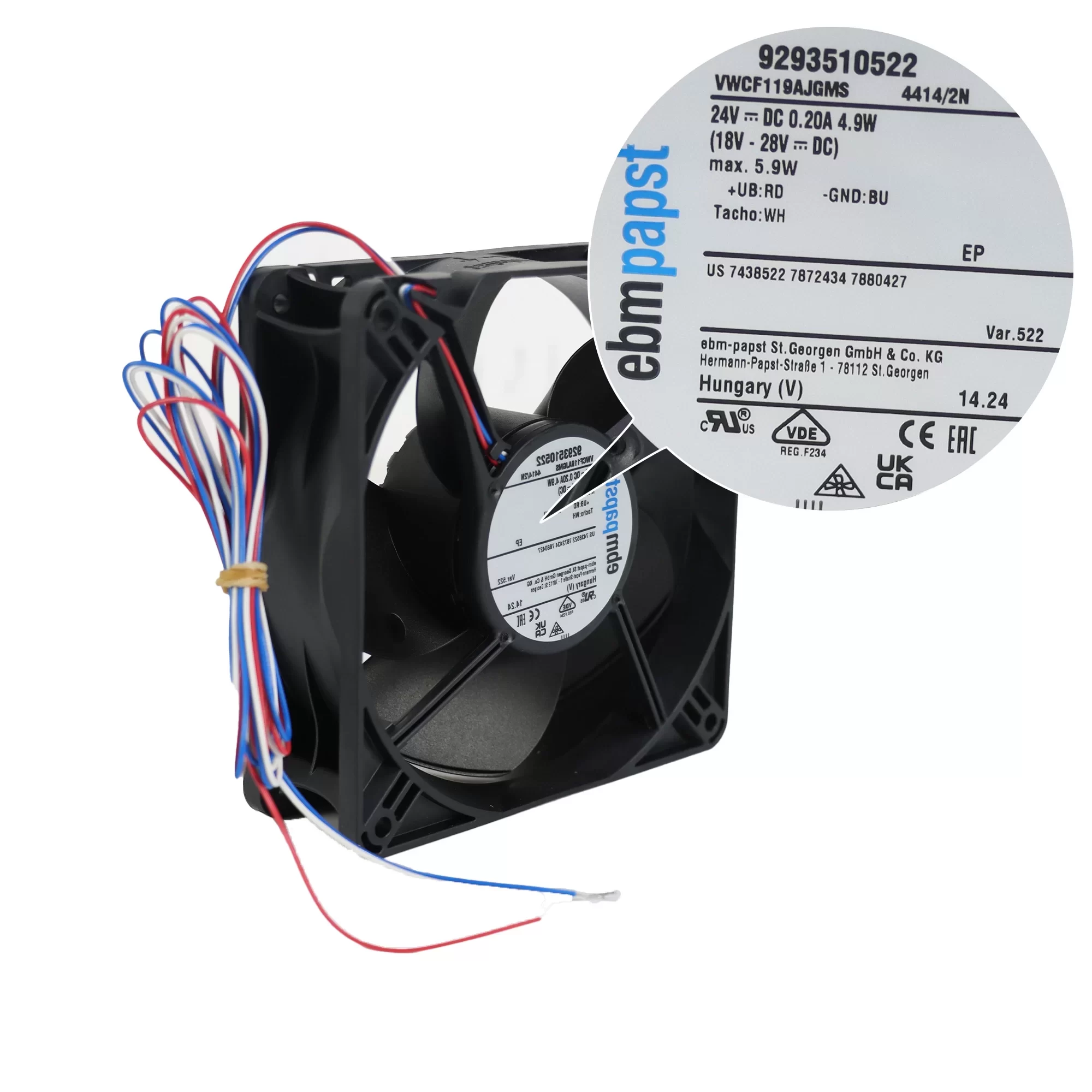

4414/2N-522 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4414/2N-522 is a 24VDC axial fan with dimensions of 119x119x38mm. Identified by part number 9293510522 and new model VWCF119AJGMS, it operates within an 18-28VDC range. It draws 0.225A of current and consumes 5.4W of power. This fan delivers an airflow of 205m³/h (121CFM) and achieves a static pressure of 118Pa. It operates at a speed of 3650RPM, with a noise level of 46dB(A). Featuring durable ball bearings and three wire leads for connection, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -30 to 75°C and has a typical service life of 62,500 hours at 40°C.

4414/2N-522 Fan Parameters
Manufacturer: ebmpapst
Model: 4414/2N-522
Part number: 9293510522
New Model: VWCF119AJGMS
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 28 VDC
Current Rating: 0.225 A
Power Consumption: 5.4 W
Airflow: 205 m³/h (121 CFM)
Static Pressure: 118 Pa
Speed: 3650 RPM
Noise Level: 46 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Operating Temperature: -30 ~ 75°C
Lifetime @ Temp: 62,500 Hours (at 40°C)
Housing Material: Plastic (Fiberglass-reinforced PBT plastic)
Impeller Material: Plastic (Fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 0.285 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for cooling applications in electronic enclosures, server racks, and industrial equipment where efficient air movement and reliability are crucial.
