Description

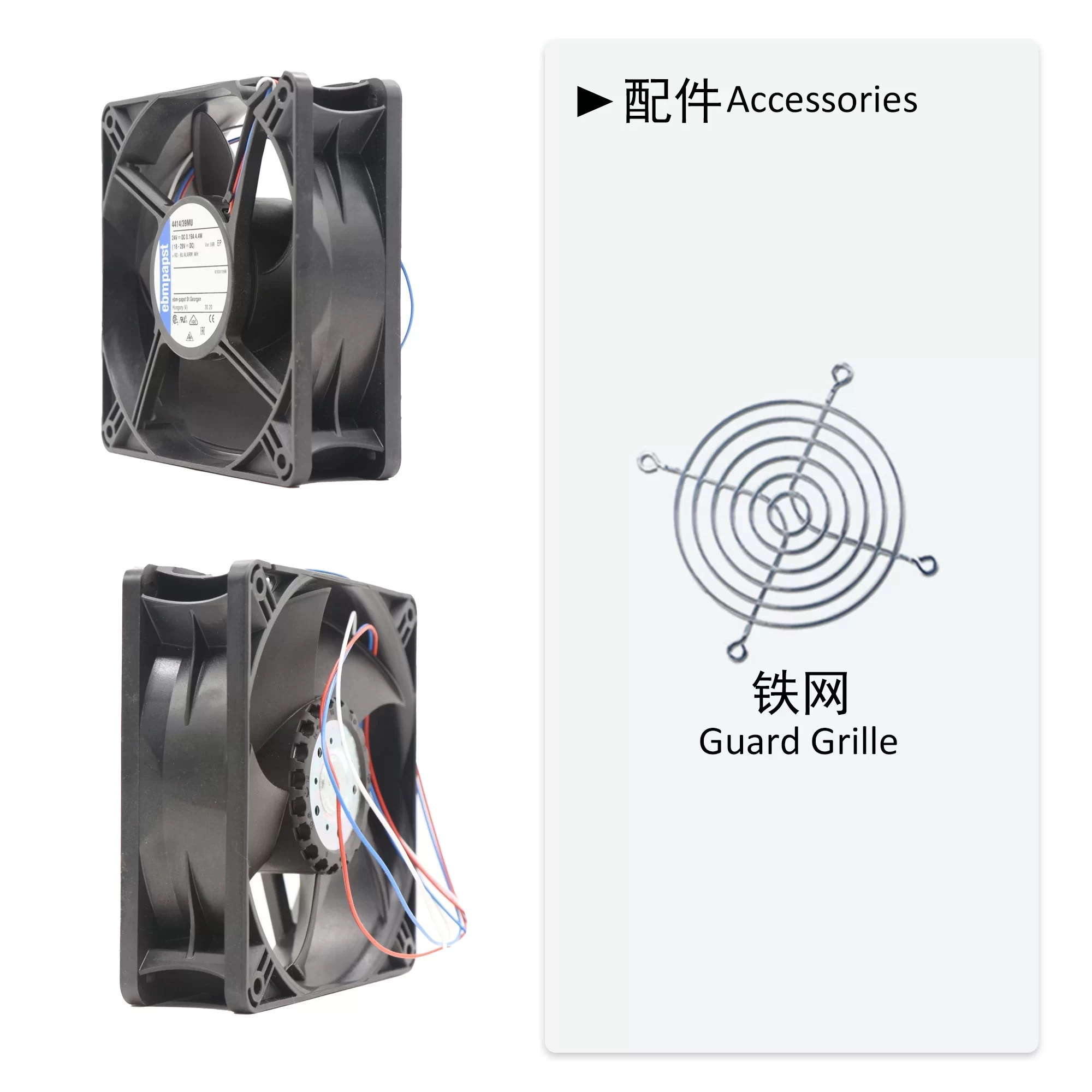

The ebmpapst 4414/39MU-598 is a 24V DC axial fan measuring 119x119x38 mm. Operating within an 18-28V range, it draws 0.19A of current and consumes 4.4W of power. This fan delivers a speed of 3300RPM and a static pressure of 103Pa. Known for its robust and durable design, it is engineered to perform reliably in challenging conditions, including high temperatures and environments with significant dust and high humidity. It operates efficiently within an ambient temperature range of -20 to 70°C. Featuring 3 wire leads, it provides a speed signal output for monitoring.
4414/39MU-598 Fan Parameters
Manufacturer: ebmpapst
Model: 4414/39MU-598
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 28 VDC
Current Rating: 0.19 A
Power Consumption: 4.4 W
Static Pressure: 103 Pa
Speed: 3300 RPM
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Fan Features: Speed Signal
Operating Temperature: -20 ~ 70°C
Weight: 0.275 kg
Application: This ebmpapst DC axial fan is suitable for cooling applications in industrial settings, control cabinets, and other environments where high reliability and resistance to harsh conditions (high temperatures, dust, humidity) are required, along with speed monitoring.
