Description

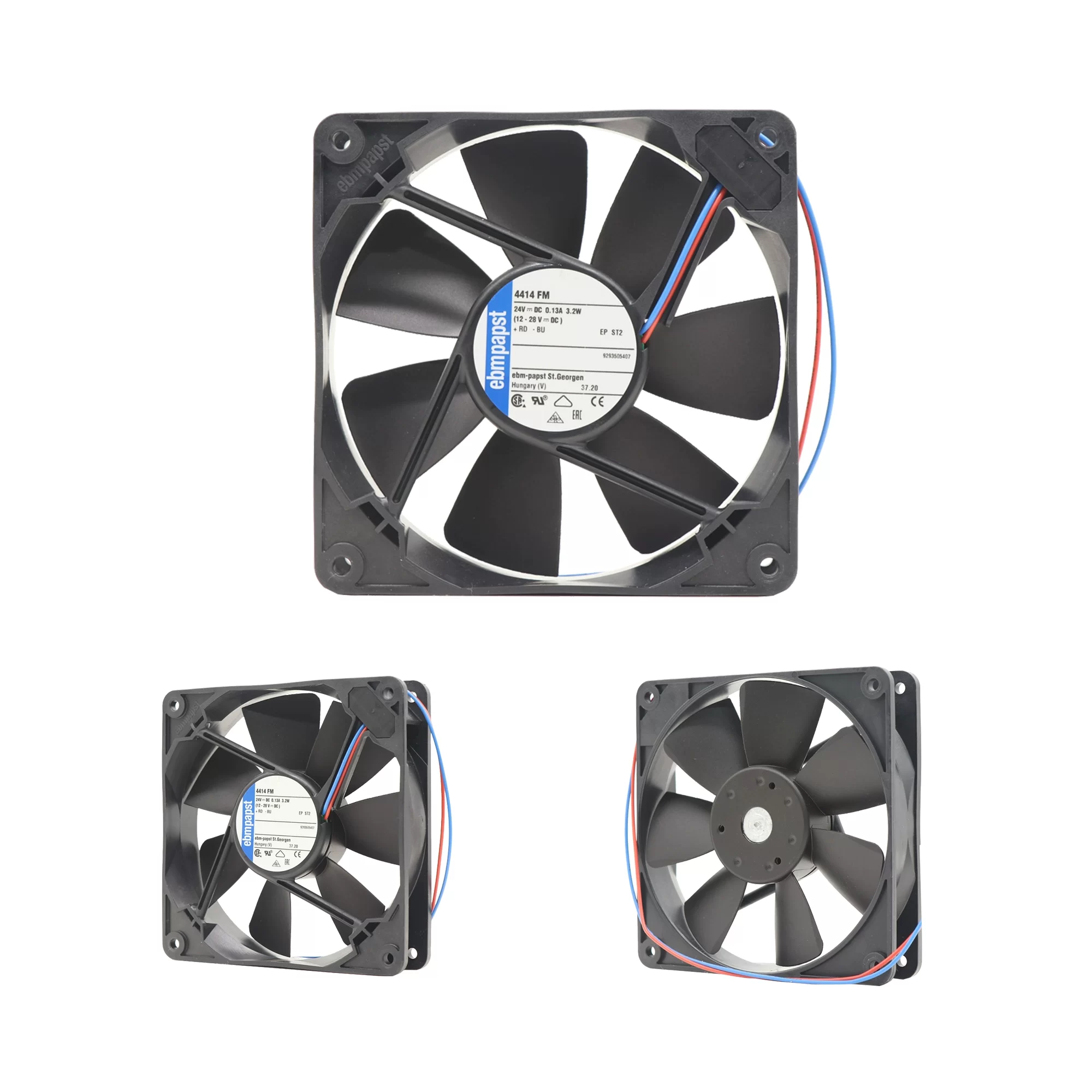

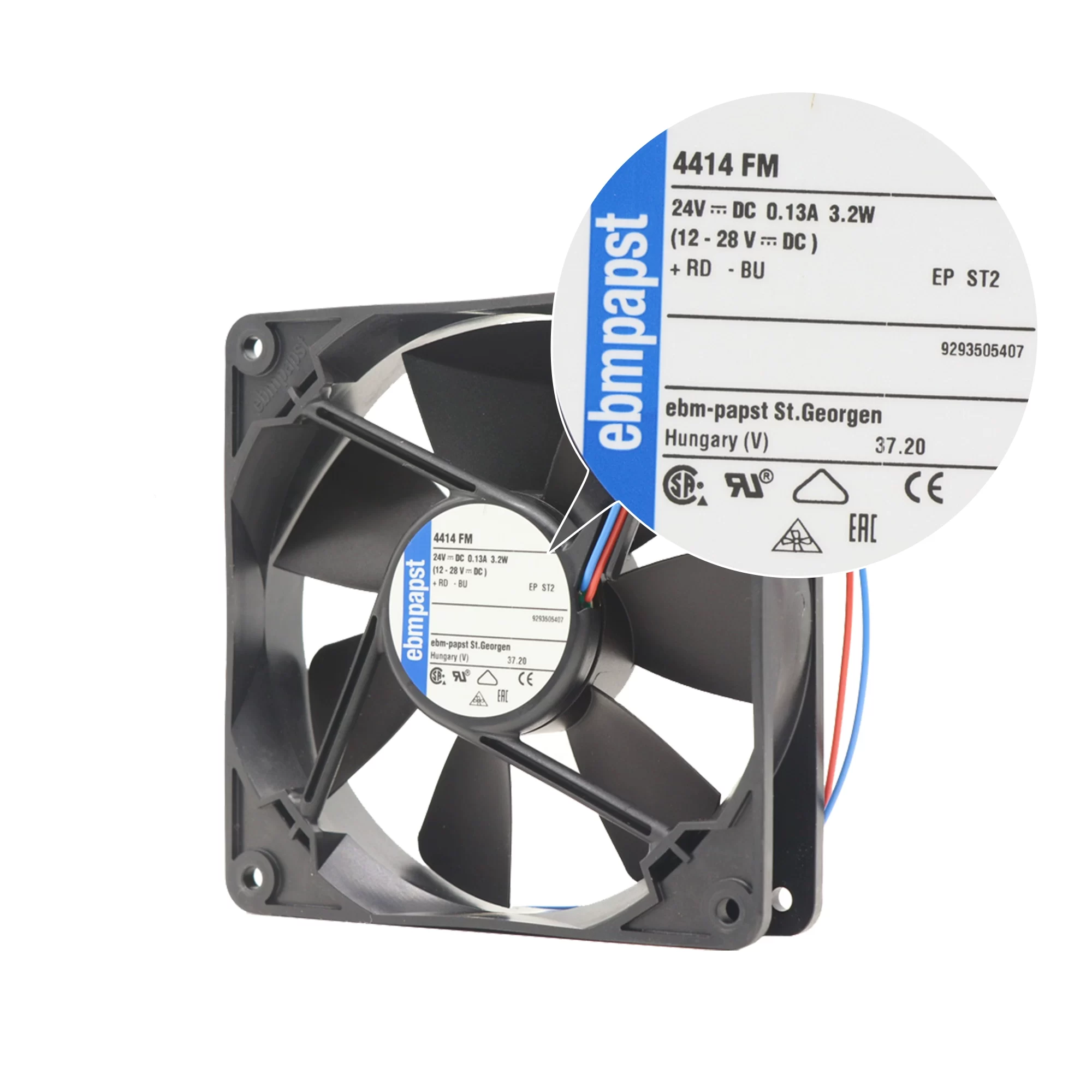

The ebmpapst 4414FM is a DC axial fan measuring 119x119x25mm. It operates on 24 VDC, drawing 0.13 A of current, with a power consumption of 3.2 W. This fan achieves a speed of 2400 RPM, providing an airflow of 140 m³/h (approximately 82.4 CFM). The noise level is 38 dB(A). It features ball bearings for reliable operation and connects via 2-wire Leads. The impeller is made of glass-fiber reinforced PA plastic, and the housing is made of glass-fiber reinforced PBT plastic. This fan is commonly used in various cooling applications for electronic equipment and control cabinets.
4414FM Fan Parameters
Model: 4414FM
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119x119x25 mm
Rated Voltage: 24 VDC
Rated Current: 0.13 A
Nominal Voltage Range: 12 to 28 VDC
Power Consumption: 3.2 W
Speed: 2400 RPM
Airflow: 140 m³/h (82.4 CFM)
Noise Level: 38 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 to 75°C
Expected Life: 70000 Hrs (at 40°C)
Application: Electronic equipment cooling, control cabinets.
