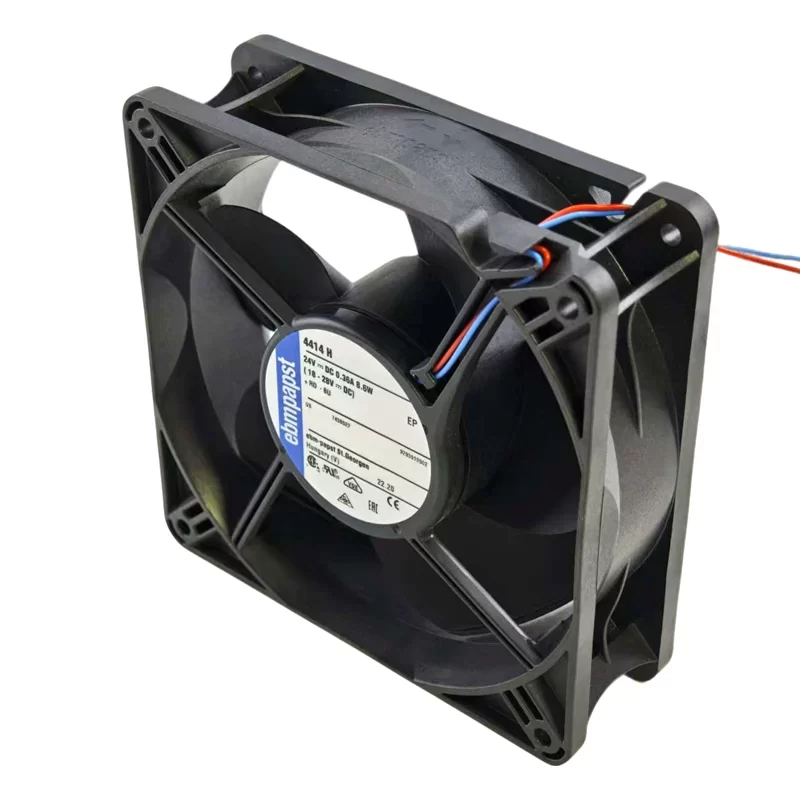

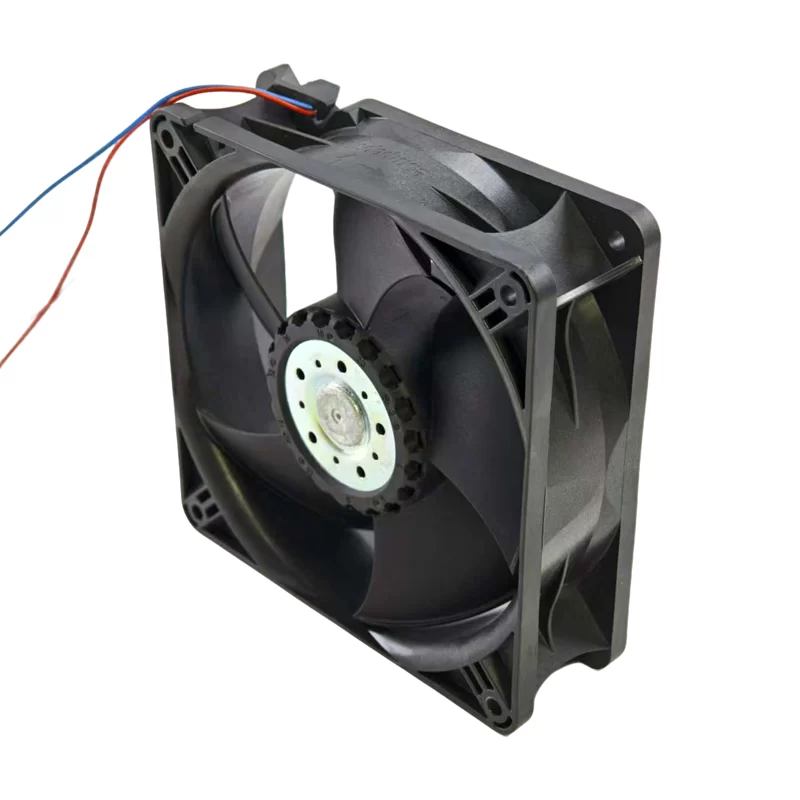

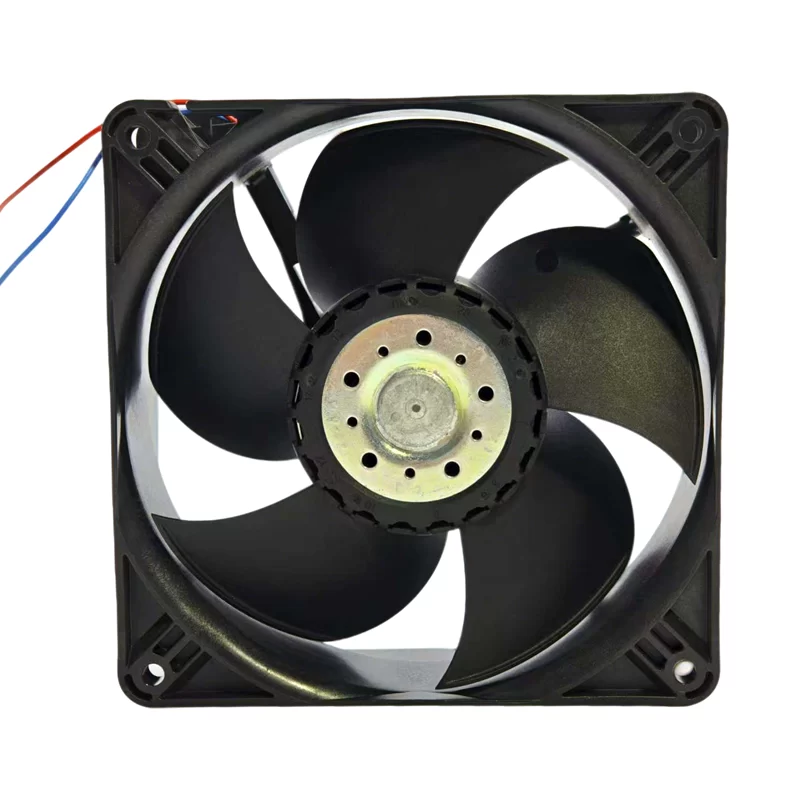

4414H ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4414H is a high-performance DC axial fan with dimensions of 120 x 120 x 38 mm. It operates on a voltage range of 18V to 28V DC, with a nominal voltage of 24V, and consumes 8.6 W of power. It runs at a speed of 4300 RPM, delivering an airflow of 240 m³/h with a noise level of 50 dBA. The fan uses ball bearings for durability and is constructed with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. It is rated for continuous operation within a temperature range of -20 °C to 70 °C, with a service life of 57,500 hours at 40 °C and 27,500 hours at maximum temperature.

4414H Fan Parameters
Manufacturer: ebmpapst
Model: 4414H
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Voltage Range: 18 – 28V
Power Consumption: 8.6 W
Airflow: 240 m³/h
Speed: 4300 RPM
Noise Level: 50 dBA
Bearing Type: Ball bearing
Termination: Two Wire Leads
Housing material: Glass-fiber reinforced PBT plastic
Impeller material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 °C to 70 °C
Service life L10 at 40 °C: 57,500 h
Service life L10 at maximum temperature: 27,500 h
Certifications: VDE, CSA, UL
Weight: 0.25 kg

Application
The 4414H fan is suitable for a wide range of applications that require reliable cooling, including industrial control systems, power converters, and other electronic equipment that uses a DC power source.
