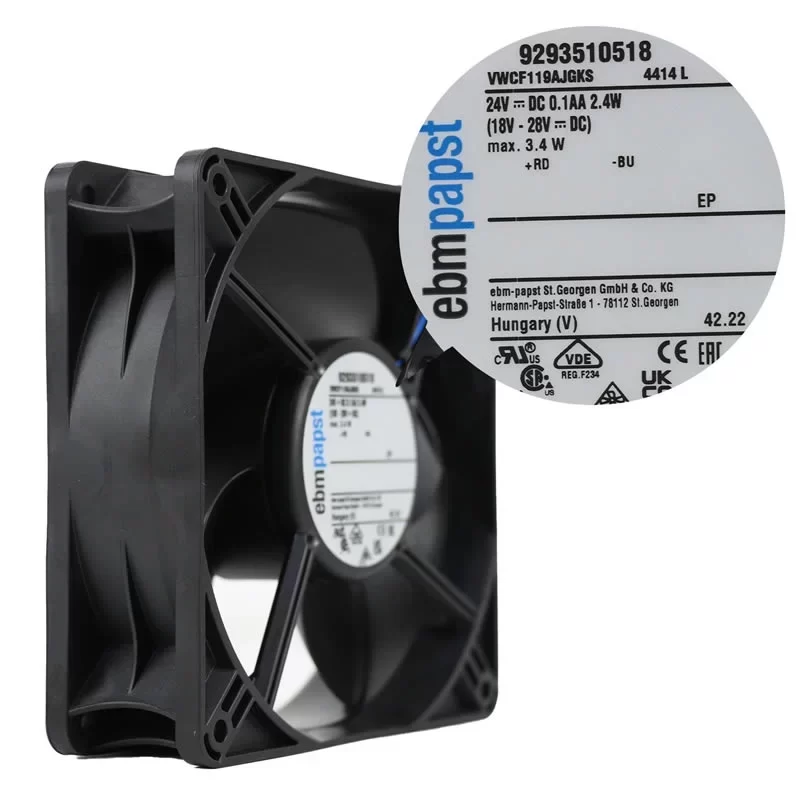

4414L ebmpapst 24V 0.1A 2.4W 119x119x38mm DC Axial Fan

Description

The ebmpapst 4414L (Part No. 9293510518) is a professional-grade 24 VDC axial compact fan from the 4400 series, specifically optimized with the VWCF119AJGKS technical configuration for high-reliability industrial cooling. Featuring a standard 119 x 119 x 38 mm form factor, this unit is driven by a precision brushless DC motor that operates at a nominal current of 0.1 A, consuming 2.4 W under standard conditions, with a maximum power ceiling of 3.4 W for peak performance. The fan delivers a robust airflow of 150 m³/h at 2700 RPM, utilizing an advanced ball bearing system designed to withstand extreme ambient temperatures up to 80 °C. Its aerodynamic construction, comprising a glass-fiber reinforced PBT plastic housing and a PA plastic impeller, ensures structural rigidity and minimized vibration for S1 continuous operation. Equipped with comprehensive electronic protection against reverse polarity and locked-rotor conditions, the 4414L provides a dependable, high-capacity thermal solution for critical infrastructure and industrial automation.

4414L Fan Parameters
Model Number: 4414L
Part Number: 9293510518
Series Reference: VWCF119AJGKS
Manufacturer: ebmpapst
Type: DC Axial Fan
Size: 119 mm
Dimensions: 119 x 119 x 38 mm
Weight: 0.250 kg
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 18.0 – 28.0 VDC
Power Consumption: 2.4 W
Maximum Power Consumption: 3.4 W
Nominal Current: 0.1 A
Speed: 2700 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 150 m³/h
Sound Power Level: 5.0 Bel(A)
Sound Pressure Level: 37 dB(A)
Motor Design: Brushless DC motor with external rotor
Motor Protection: Electronic protection against reverse polarity and locked-rotor
Locked-rotor Protection: Auto-restart and overload protection
Insulation Class: Class E
Electrical Hookup: 2 Lead wires (Red: +24V; Blue: GND); AWG 24, TR 64, stripped and tin-plated
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Exhaust over struts
Impeller Material: Glass-fiber reinforced PA plastic
Housing Material: Glass-fiber reinforced PBT plastic
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -20 – +80 °C
Service Life (L10 @ 40 °C): 67500 h
Service Life (L10 @ Max Temp): 22500 h
Standard Compliance: EN 60950-1, CE
Approval Agency: VDE, UL, CSA

Application
The ebmpapst 4414L axial fan is primarily utilized in industrial control cabinets, telecommunications infrastructure, high-temperature power supplies, server rack ventilation, and medical laboratory equipment.
