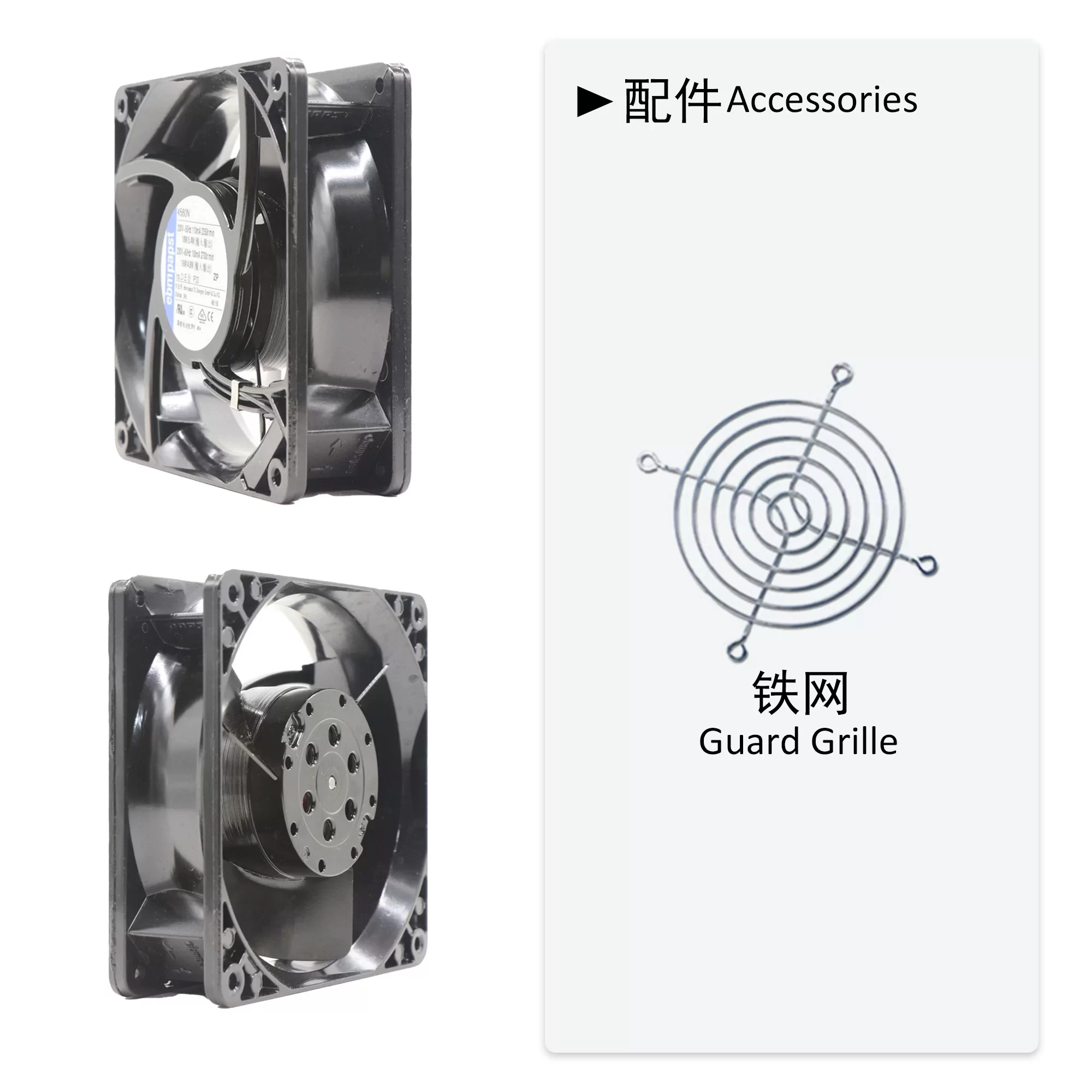

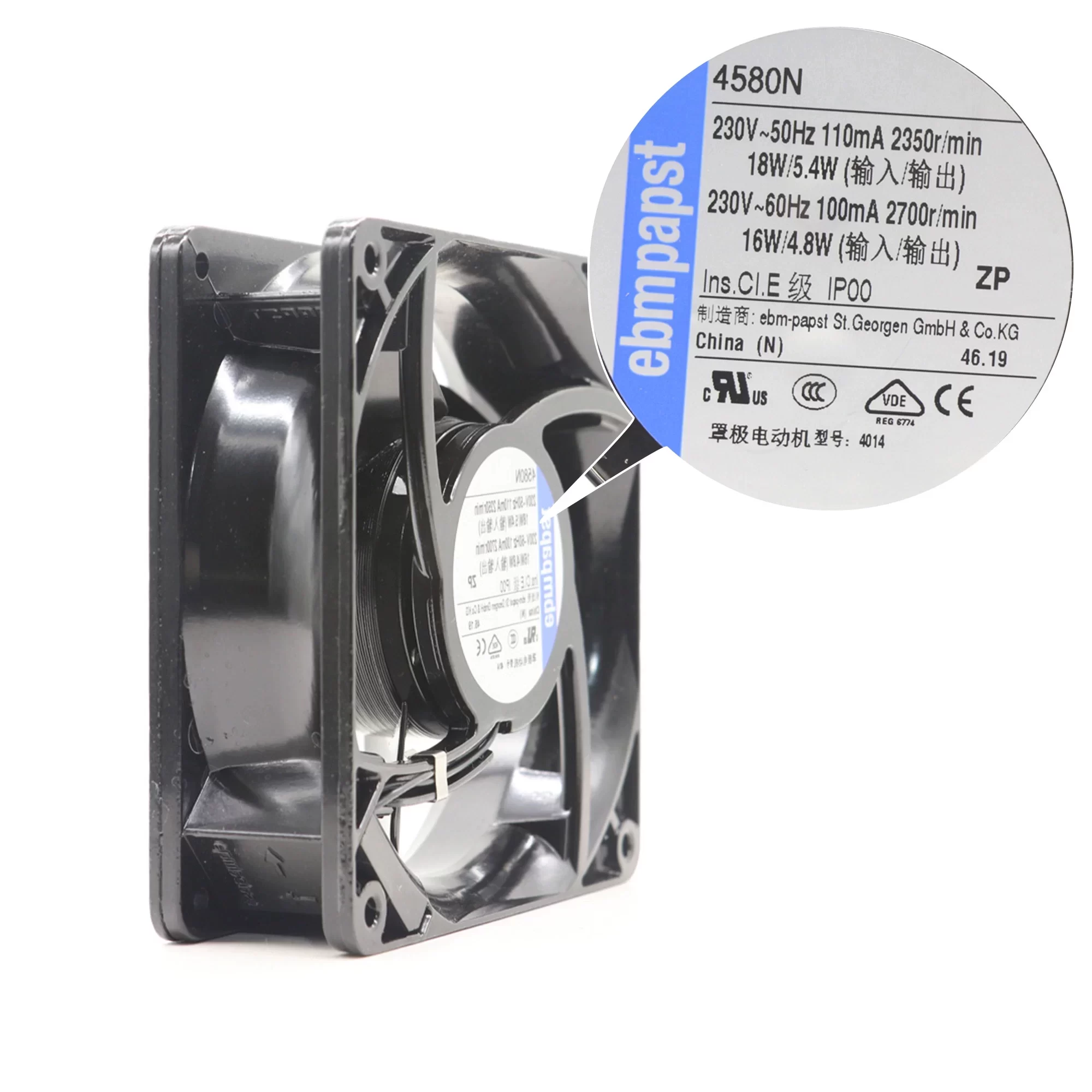

4580N ebmpapst 230V AC Axial Fan

Description

The ebmpapst 4580N is a 230VAC AC axial fan with dimensions of 119x119x38mm. Operating at both 50Hz and 60Hz frequencies, its performance varies by frequency. At 50Hz, it draws 0.11A of current, consumes 18W of power, delivers an airflow of 160m³/h (94CFM), achieves a static pressure of 70Pa, runs at 2350RPM, with a noise level of 46dB(A) and a sound power level of 5.7Bels. At 60Hz, it draws 0.10A, consumes 16W, provides 180m³/h (106CFM) airflow, 75Pa static pressure, operates at 2700RPM, with a noise level of 49dB(A) and a sound power level of 6.0Bels. Featuring durable ball bearings and terminals for connection, it is constructed with a die-cast aluminum housing and a PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 40,000hours at 40°C.

4580N Fan Parameters
Manufacturer: ebmpapst
Model: 4580N
Fan Type: AC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 0.11 A (50Hz), 0.10 A (60Hz)
Power Consumption: 18 W (50Hz), 16 W (60Hz)
Airflow: 160 m³/h (94 CFM) @ 50Hz, 180 m³/h (106 CFM) @ 60Hz
Static Pressure: 70 Pa (50Hz), 75 Pa (60Hz)
Speed: 2350 RPM (50Hz), 2700 RPM (60Hz)
Noise Level: 46 dB(A) (50Hz), 49 dB(A) (60Hz)
Sound Power Level: 5.7 Bels (50Hz), 6.0 Bels (60Hz)
Bearing Type: Ball Bearing
Termination: Terminals
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 40,000 Hours (at 40°C)
Housing Material: Die-cast aluminum
Impeller Material: PA plastic
IP Rating: IP20
Weight: 0.55 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst AC axial fan is suitable for cooling a wide range of electronic enclosures, server racks, and industrial control panels, providing reliable ventilation in various environments.
