Description

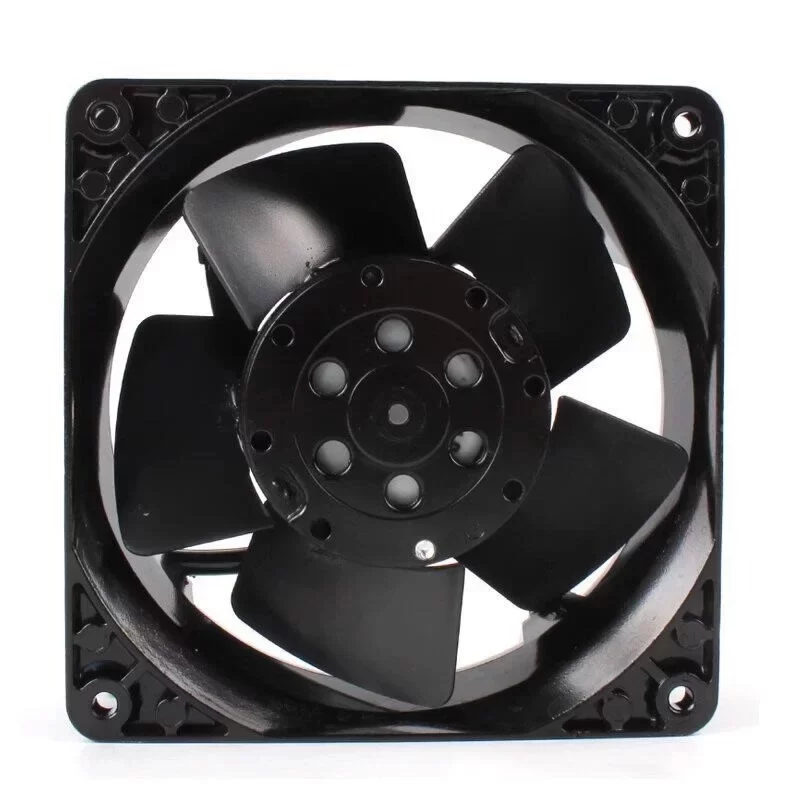

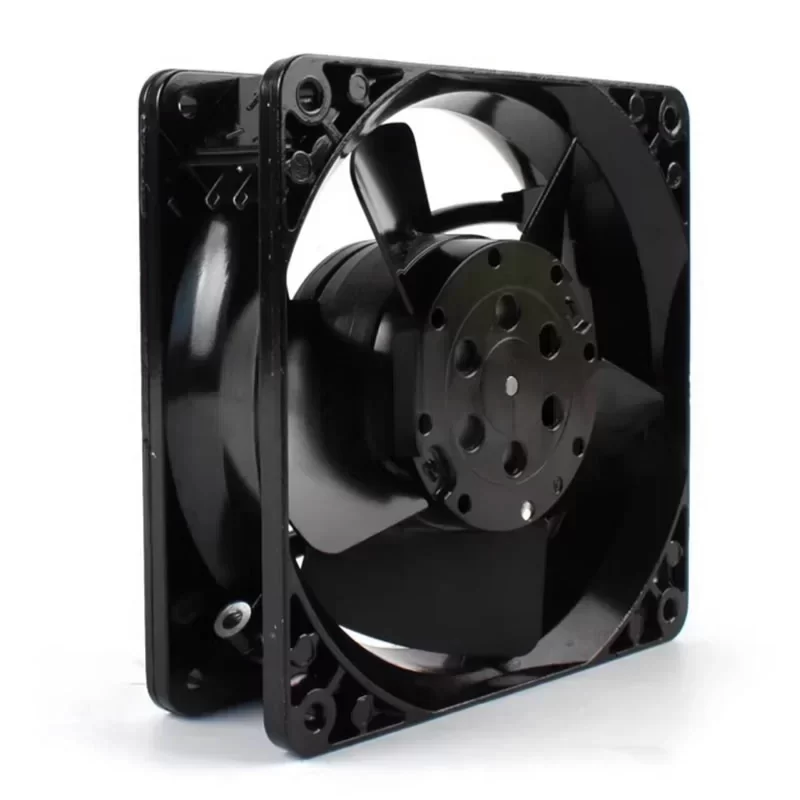

The ebmpapst 4606N is a high-performance 115VAC single-phase AC Axial Fan with dimensions of 119 x 119 x 38 mm, featuring a 5-blade sheet steel impeller design. Specifically engineered for mission-critical cooling in industrial control cabinets and electronic enclosures, this 119 mm unit is driven by a shaded-pole motor with maintenance-free ball bearings. Operating on a 115 VAC supply, it delivers a Power Input of 19 W (50 Hz) / 18 W (60 Hz) and a Current Draw of 0.23 A / 0.21 A at a rated speed of 2650 / 3100 RPM. This unit provides a Max. Air Flow of 105.9 CFM (180.0 m³/h / 3.00 m³/min) and a Max. Static Pressure of 12.24 mmH₂O (120.0 Pa / 0.48 inAq). Featuring a rugged die-cast aluminum housing and an IP20 protection rating, it ensures superior thermal management and an extended service life in continuous S1 environments at the end.
4606N Fan Parameters
Model Number: 4606N
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 119 x 119 x 38 mm
Weight: 550 g
Bearing Type: Ball bearing
Nominal Voltage: 115 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Current Draw: 0.23 / 0.21 A
Power Input: 19 / 18 W
Power Output: 5.7 / 5.4 W
Rated Speed: 2650 / 3100 RPM
Max. Air Flow: 94.2 / 105.9 CFM (160.0 / 180.0 m³/h / 2.67 / 3.00 m³/min)
Max. Static Pressure: 10.20 / 12.24 mmH₂O (100.0 / 120.0 Pa / 0.40 / 0.48 inAq)
Noise Level: 45 / 51 dB(A)
Sound Power Level: 5.4 / 5.9 Bel
Number of Blades: 5
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Direction of Airflow: Exhaust over struts
Insulation Class: “B”
Degree of Protection: IP20
Motor Protection: Impedance protected
Connection: 2 Flat terminals (2.8 x 0.5 mm)
Mode: S1
Protection Class: I
Operating Temperature: -40 to +85 °C (60 Hz) / -40 to +75 °C (50 Hz)
Standard Compliance: VDE; CSA; UL; CE
Application
The ebmpapst 4606N fan is the primary cooling component for industrial automation systems, high-power power supplies, and telecommunication racks requiring reliable 115V AC axial airflow via a high-strength 5-blade configuration.
