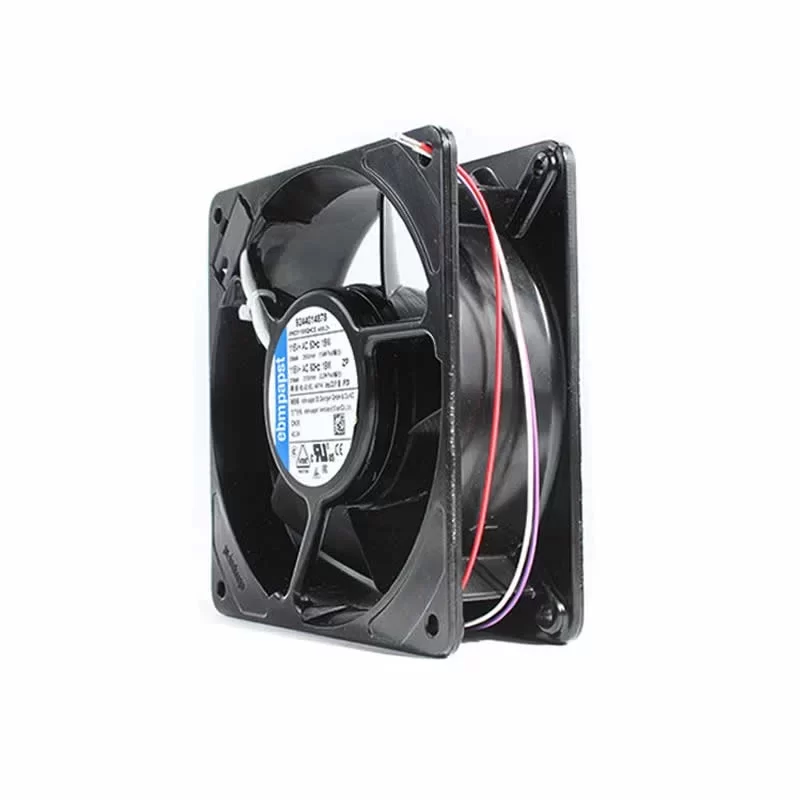

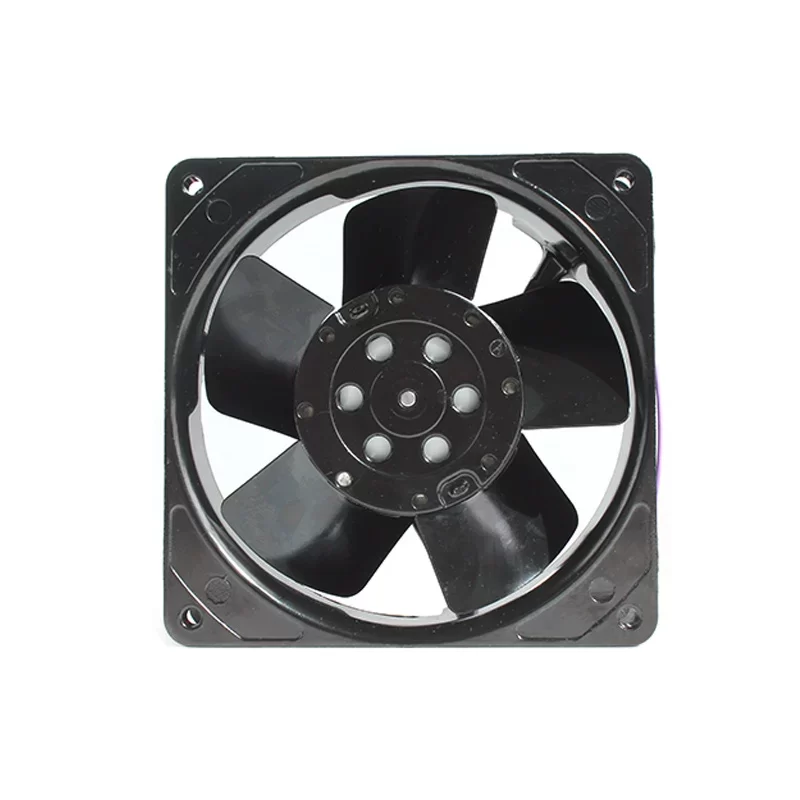

4606ZH ebmpapst 115V 119mm 12038 18W AC Axial Fan

Description

The ebmpapst 4606ZH is a high-performance 115V AC Axial Fan with dimensions of 119.0 x 119.0 x 38.0 mm, featuring an all-metal construction for maximum durability in extreme environments. Operating at 115 VAC (50/60 Hz), this unit delivers an airflow of up to 180 m³/h (105.9 CFM) at a rated speed of 3100 RPM, with a power input of 18 W. The fan is built with a die-cast metal housing and a metal impeller, balanced to grade 2.5 for minimal vibration, and utilizes a precision ball bearing system that supports an operating temperature of up to 85 °C at 60 Hz. Equipped with a 3-wire electrical connection via a 310 mm lead wire and plug, the 4606ZH is a mission-critical thermal management solution for industrial ovens, high-temperature telecommunications cabinets, and heavy-duty power electronics.

4606ZH Fan Parameters
Manufacturer: ebmpapst
Model Number: 4606ZH
Motor Design: Shaded-pole motor
Type: AC Axial Fan
Nominal Voltage: 115 VAC
Frequency: 50 / 60 Hz
Dimensions: 119.0 x 119.0 x 38.0 mm
Impeller Size: 119 mm
Number of Blades: 5
Mass: 0.540 kg
Balancing Grade: 2.5

[Electrical Data]
Nominal Speed (50/60 Hz): 2650 / 3100 RPM
Power Consumption (50/60 Hz): 19 / 18 W
Termination: 3-wire Lead with Plug (AWG 24, 310 mm ± 10 mm)
Insulation Diameter: 1.20 mm
Motor Bearing: Ball bearing
Motor Protection: Impedance protected

[Performance & Acoustics]
Air Flow (50/60 Hz): 150 / 180 m³/h (88.2 / 105.9 CFM)
Max. Static Pressure (50/60 Hz): 70 / 80 Pa (0.28 / 0.32 inAq)
Sound Pressure Level (50/60 Hz): 37 / 42 dB(A)
Rotational Direction: Clockwise (looking at rotor)
Airflow Direction: Air outlet over struts

[Materials & Construction]
Housing Material: Metal
Impeller Material: Metal
Mounting Position: Any
Max. Mounting Torque: Wire outlet corner: 120 Ncm; Remaining corners: 350 Ncm
Screw Size: ISO 4762 – M4 (degreased)

[Reliability & Protection]
Min. Ambient Temp (50/60 Hz): -40 °C
Max. Ambient Temp (50 Hz): 75 °C
Max. Ambient Temp (60 Hz): 85 °C
Min. Storage Temp: -40 °C
Max. Storage Temp: 100 °C
Approval: VDE, CSA, UL, CE

[Application]
The ebmpapst 4606ZH is specifically engineered for high-temperature 115V AC applications where structural integrity is paramount, utilizing an all-metal design and balancing grade of 2.5 to ensure low-vibration operation in industrial heaters, professional kitchen equipment, and aerospace testing chambers. The 38mm deep metal frame provides the thermal mass necessary to operate at ambient temperatures as high as 85 °C, while the integrated 310 mm lead wire and plug assembly facilitate quick installation in mission-critical telecommunications racks and heavy-duty power conversion systems where consistent heat extraction is essential.
