4656EZ ebmpapst 230V AC Axial Fan 108mm

Description

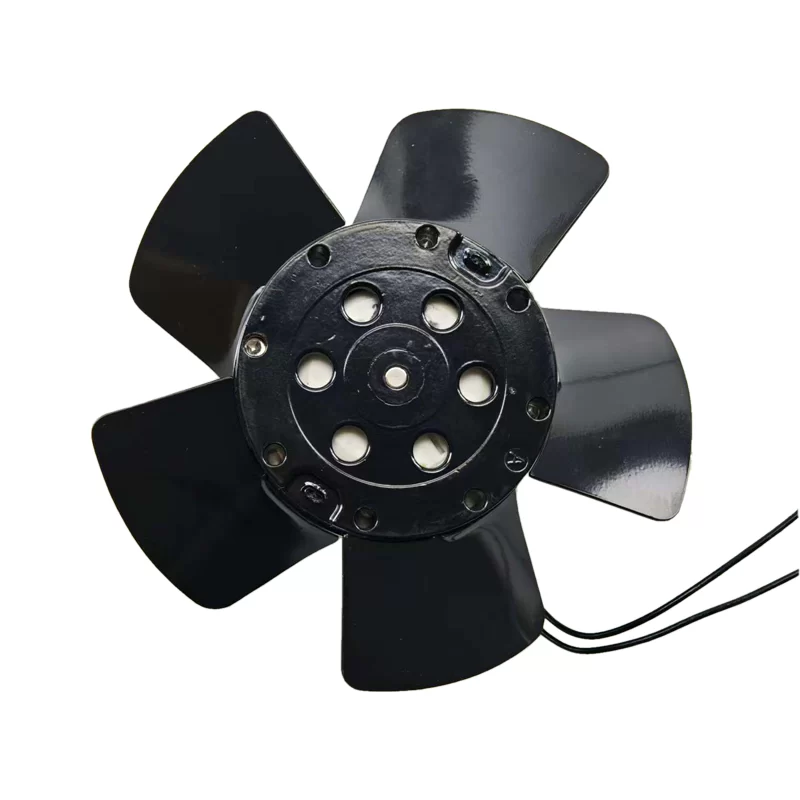

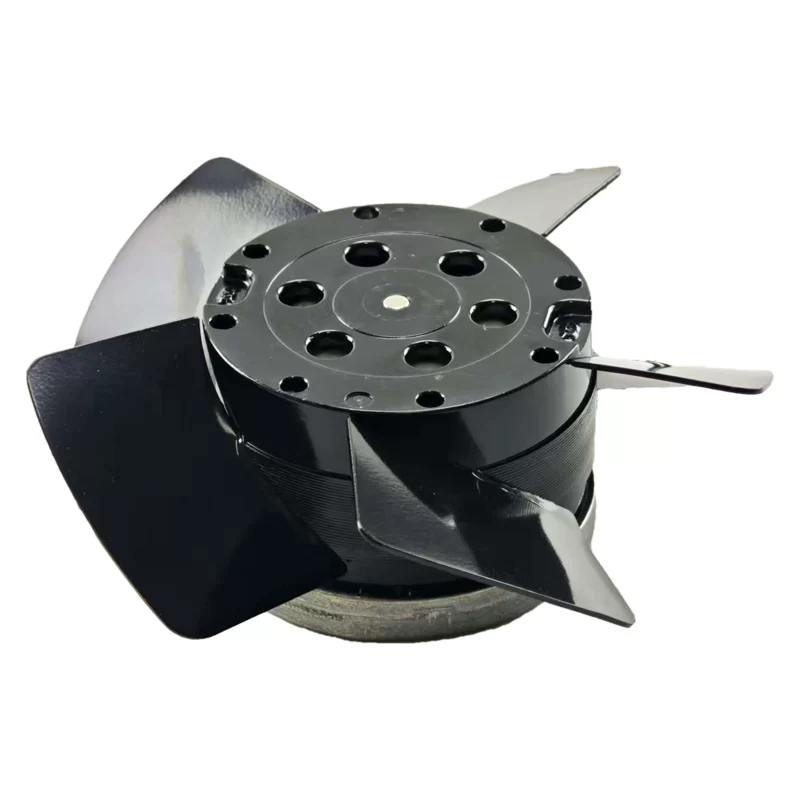

The ebmpapst 4656EZ is an AC axial fan designed for efficient cooling. It features dimensions of 108 x 108 x 39 mm and operates on 230V at 50/60 Hz, with a power consumption of 19/18W. This fan delivers an airflow of 125/140 m³/h (73.7/82.5 CFM) against a static pressure of 72/77 Pa. It achieves speeds of 2600/2950 RPM with noise levels of 42/45 dBA. Equipped with ball bearings and a metal impeller, it is rated for operation up to 40 °C with a life expectancy of 37,500 hours at 50 Hz. It has a two-wire lead termination and carries multiple certifications including CE, EAC, UL, VDE, and CCC.

4656EZ Fan Parameters
Manufacturer: ebmpapst
Model: 4656EZ
Fan Type: AC Axial Fan
Dimensions: 108 x 108 x 39 mm
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Power Consumption: 19/18W
Airflow: 125/140 m³/h
Airflow: 73.7/82.5 CFM
Static Pressure: 72/77 Pa
Speed: 2600/2950 RPM
Noise Level: 42/45 dBA
Bearing Type: Ball bearing
Termination: Two Wire Leads
Impeller Material: Metal
Operating Temperature: 40 °C
Life Expectancy: 37,500 h / 50 Hz
Certifications: CE EAC UL VDE CCC
Weight: 380g

Application
The 4656EZ fan is suitable for applications requiring robust cooling and ventilation, such as industrial equipment, control cabinets, HVAC systems, and electronic enclosures, where reliable performance at specific voltage and frequency is needed.
