Description

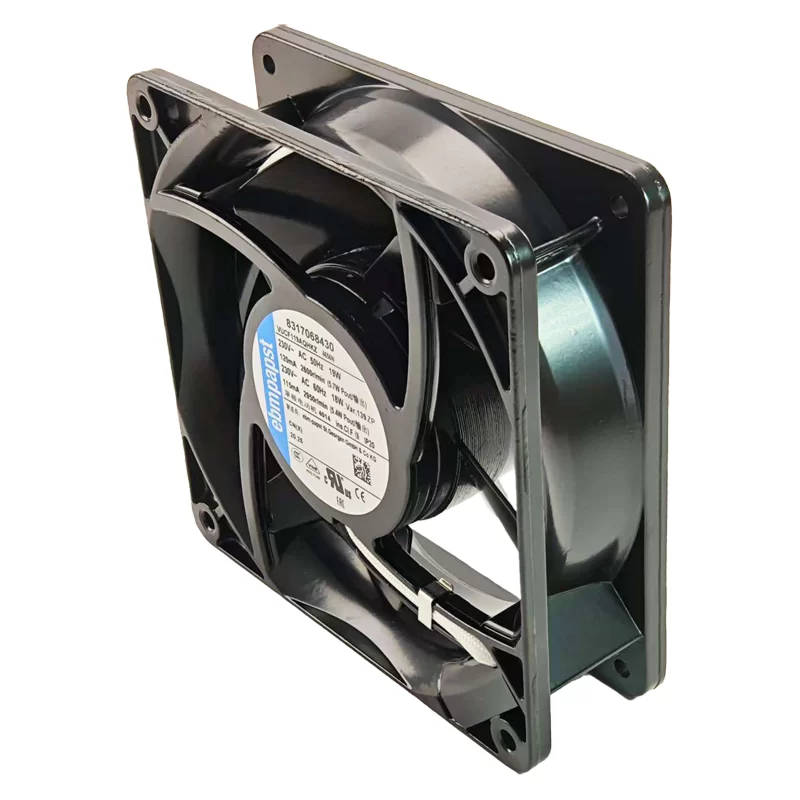

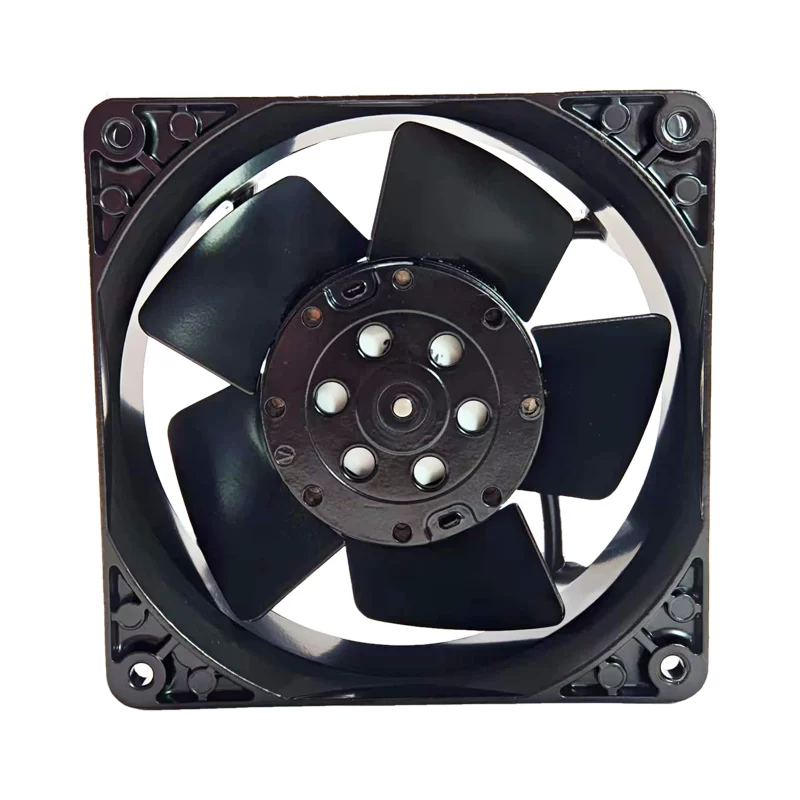

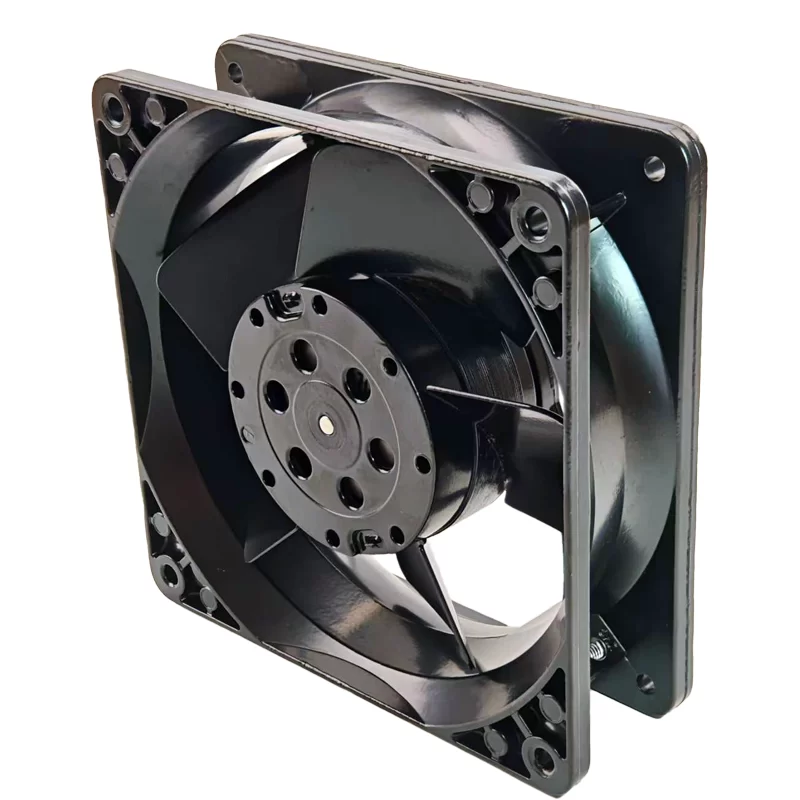

The ebmpapst 4656N is a compact AC axial fan with dimensions of 119mm x 119mm x 38mm. It operates on 230 VAC at 50 Hz, drawing approximately 0.083A of current and consuming 19W of power. This fan provides an airflow of 94.1 CFM (160 m³/h) and achieves a rotational speed of 2650 RPM, with a noise level of 47 dB(A). It features a robust die-cast aluminum housing and a steel impeller, along with ball bearings for a long service life of 37,500 hours at 40°C. Protected from overload by impedance protection, it is widely used for cooling in control cabinets, electronic enclosures, and other industrial applications.
4656N Fan Parameters
Model: 4656N
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.083A
Power Consumption: 19 W
Speed: 2650 RPM
Airflow: 94.1 CFM (160 m³/h)
Noise Level: 47 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Sheet Steel (painted black)
Termination: 2 Flat Plugs (3.0 x 0.5 mm)
Airflow Direction: Intake over struts
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -40°C to +85°C
Life Expectancy: 37,500 hours (at 40°C)
Weight: 0.55 kg
Features: Protected from overload by impedance protection.
Application: Control cabinets, electronic enclosures, power supplies, industrial machinery, general cooling.
