Description

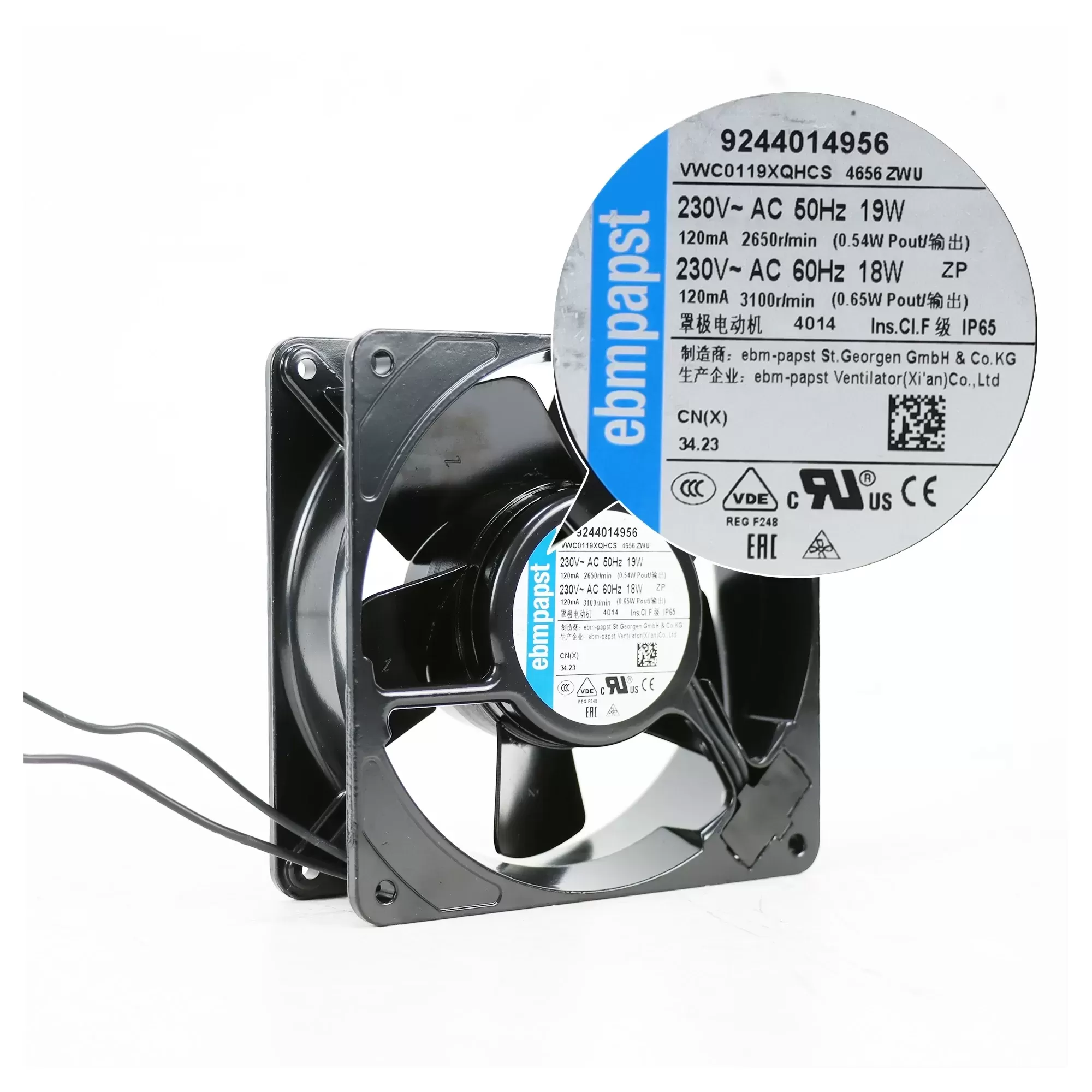

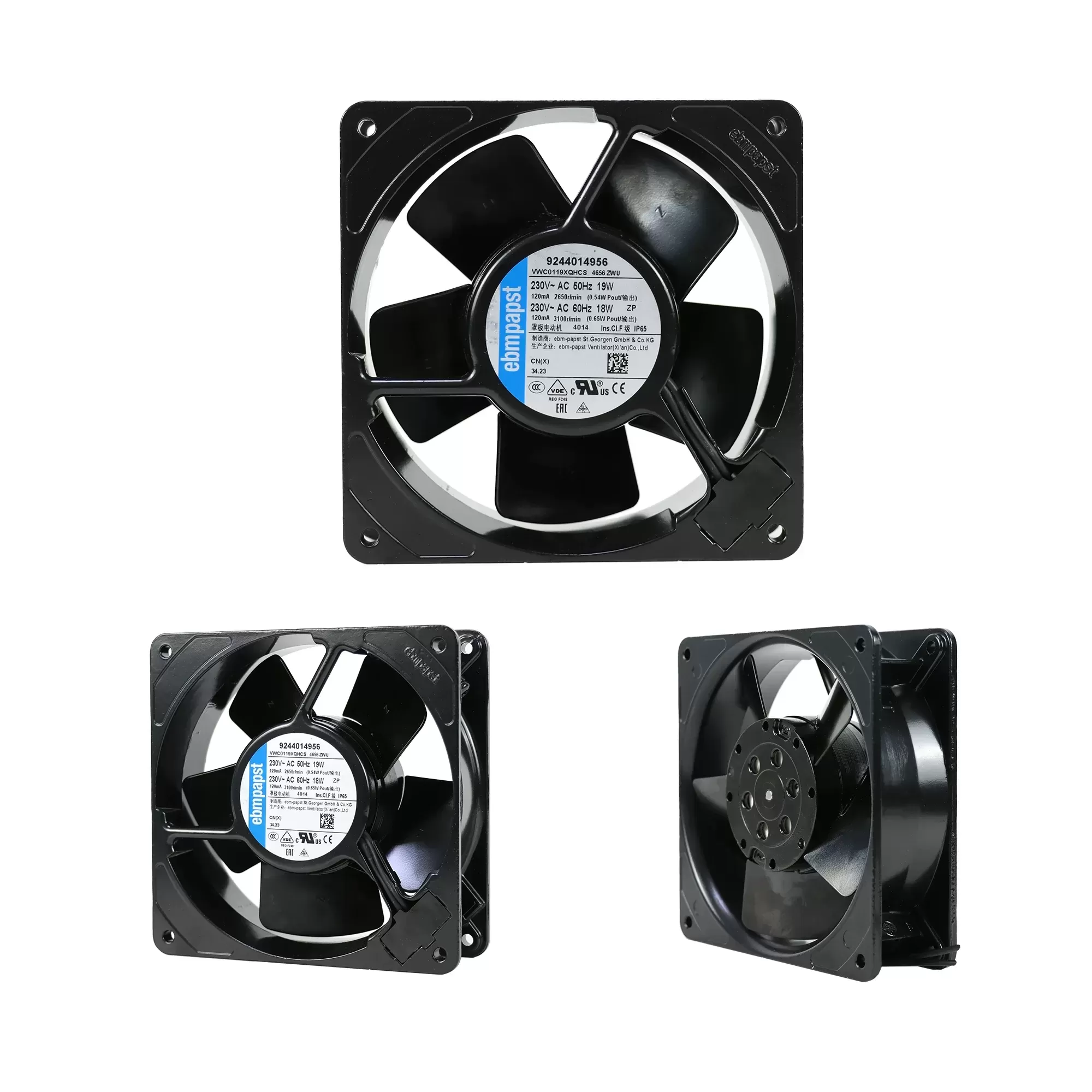

The ebmpapst 4656ZWU is an AC axial fan measuring 119x119x38mm. It operates on 230 VAC at 50/60 Hz, with a power consumption of 19 W at 50 Hz and 18 W at 60 Hz. This fan achieves a speed of 3100 RPM, providing an airflow of 106 CFM (approximately 180 m³/h). The noise level is 42 dB(A). It features ball bearings for reliable operation and connects via lead wires. The housing material is metal (die-cast aluminum) and the impeller is sheet steel, painted black. It has an IP65 ingress protection rating and operates in a temperature range of -40 to 80°C. Approvals include VDE, CSA, UL. It is designed for optimal cooling in various applications, including electronic components and machinery.
4656ZWU Fan Parameters
Model: 4656ZWU
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 119x119x38 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Power Consumption: 19 W (at 50 Hz) / 18 W (at 60 Hz)
Speed: 3100 RPM
Airflow: 106 CFM (180 m³/h)
Noise Level: 42 dB(A)
Bearing Type: Ball Bearing
Termination: Lead Wires
Housing Material: Metal (Die-cast aluminum)
Impeller Material: Sheet steel, painted black
Ingress Protection: IP65
Operating Temperature: -40 to 80°C
Expected Life L10 at 40°C: 37500 h
Motor Protection: Protected from overload by impedance protection
Approval: VDE, CSA, UL
Weight: 0.540 kg
