Description

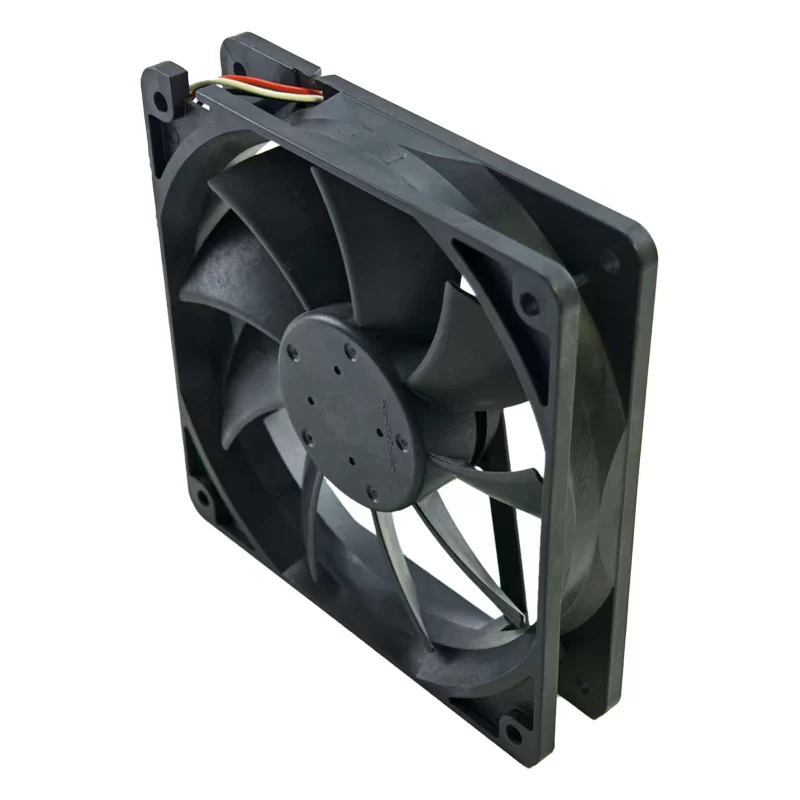

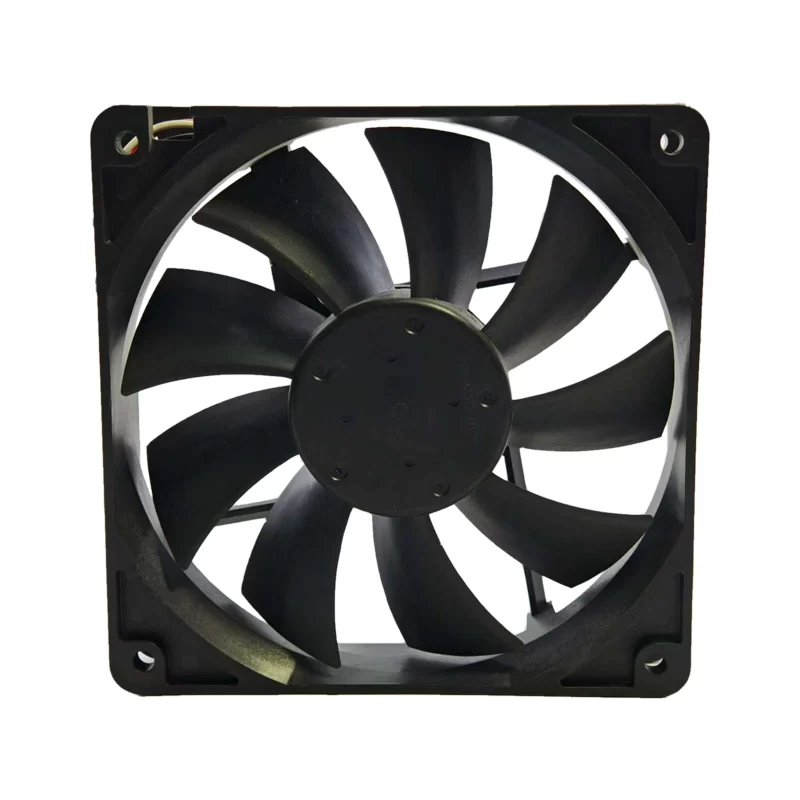

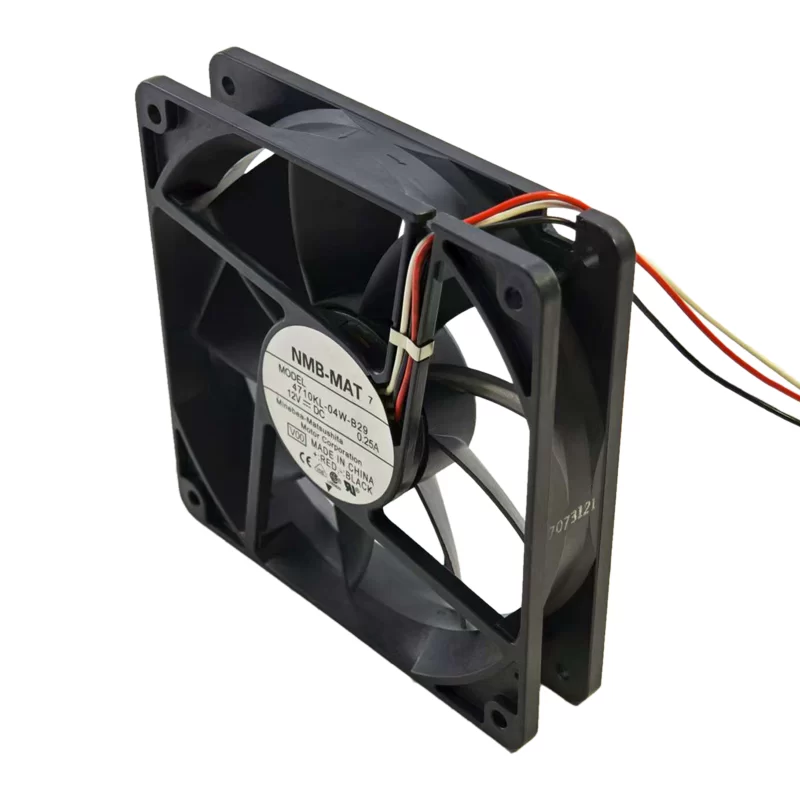

The NMB 4710KL-04W-B29-V00 is a quiet DC axial fan measuring 120 x 120 x 25 mm. It operates on 12V DC, drawing a current of 0.19 A and consuming 2.28 W of power. The fan provides an airflow of 75.9 CFM (129.0 m³/h) and generates a static pressure of 0.100 inch H₂O (24.9 Pa). It runs at a speed of 1900 RPM with a low noise level of 31 dB(A). The fan uses ball bearings for enhanced durability and features 3-wire leads. This fan is a reliable solution for applications where a quiet operation is a priority.
4710KL-04W-B29-V00 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 4710KL-04W-B29-V00
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.19 A
Label Current: 0.25 A
Power Consumption: 2.28 W
Airflow: 75.9 CFM (129.0 m³/h)
Static Pressure: 0.100 inch H₂O (24.9 Pa)
Speed: 1900 RPM
Noise Level: 31 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Weight: 180 g
Application: The 4710KL-04W-B29-V00 is a low-power, low-noise DC axial fan suitable for a wide range of applications where quiet operation is critical. Its performance characteristics make it an excellent choice for audiovisual equipment, home automation devices, PC systems, and office environments where a balance between cooling and acoustic performance is desired.
