Description

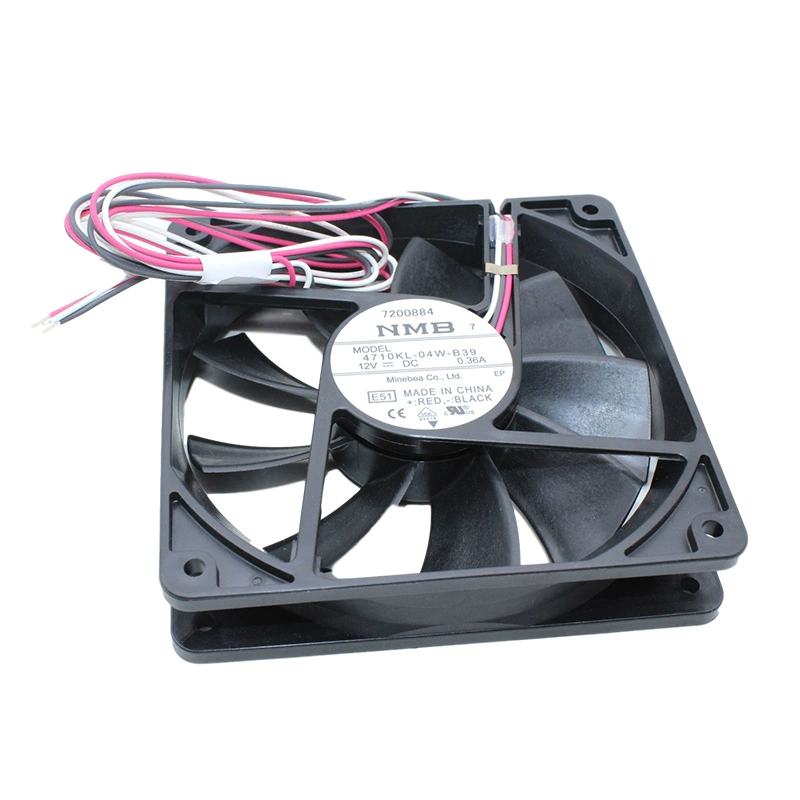

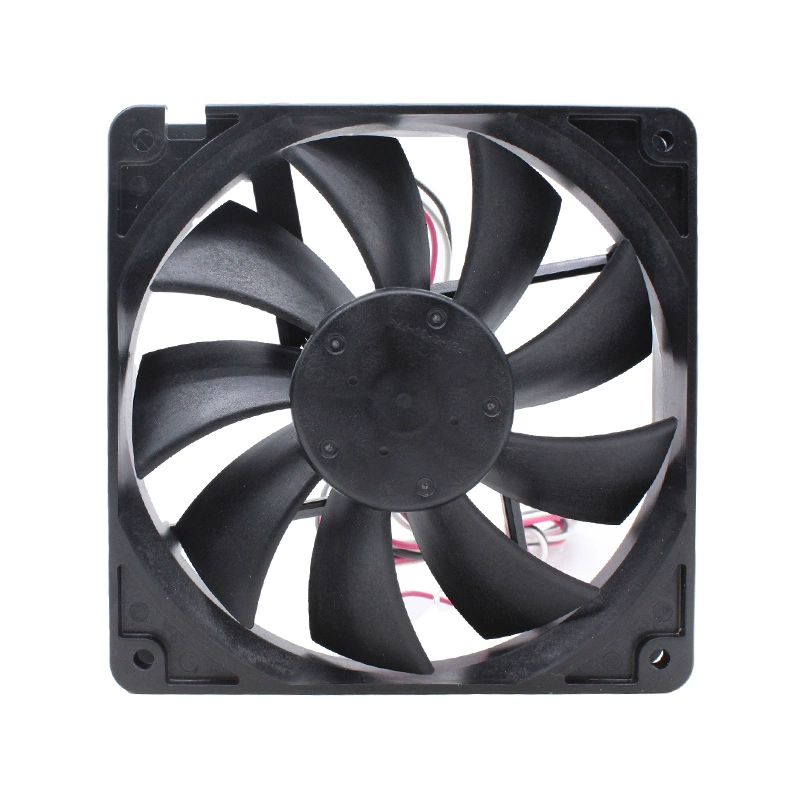

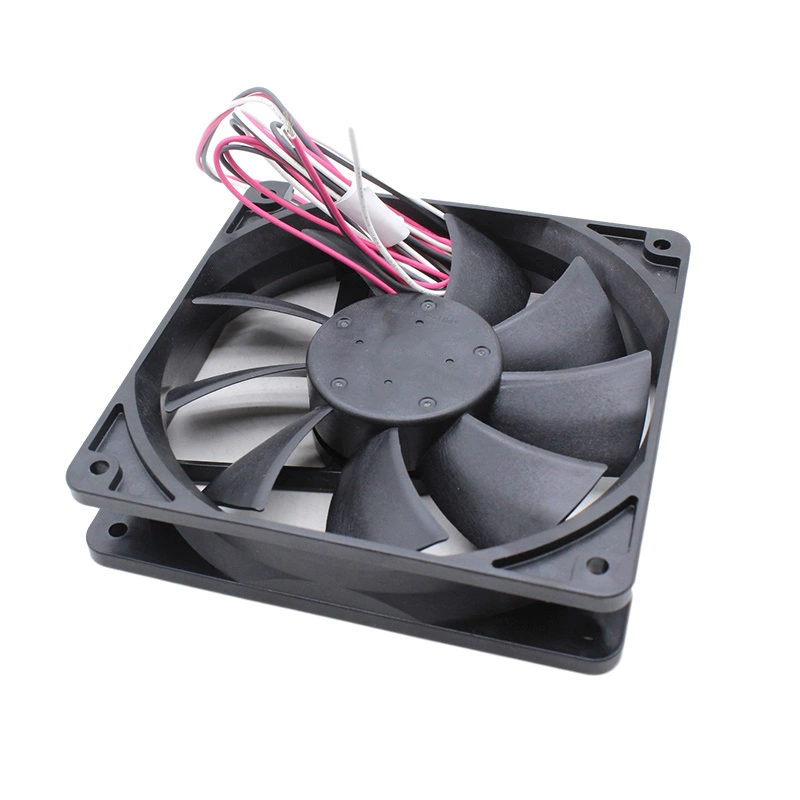

The NMB 4710KL-04W-B39-E51 is a high-performance 12V DC axial cooling fan. Measuring 120mm x 120mm x 25mm, this fan is designed for effective thermal management in various electronic systems, servers, and industrial applications. It operates at a rated current of 0.36A, consuming 4.32W of power. This allows it to achieve a speed of 2200 RPM, delivering an airflow of 88.2 CFM and a static pressure of 0.129 inch-H2O. Its noise level is 35 dBA. The fan features durable ball bearings for an extended operational lifespan. This model is commonly found with 3-wire leads, which typically include power, ground, and a tachometer output for speed monitoring.
Model Number: 4710KL-04W-B39-E51
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 12V DC
Rated Current: 0.36A
Rated Power: 4.32W (calculated: 12V * 0.36A)
Speed: 2200 RPM
Airflow: 88.2 CFM (2.5 m³/min)
Static Pressure: 0.129 inch-H2O (32.1 Pa)
Noise Level: 35 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer)
Operating Temperature: -10°C to +70°C
