Description

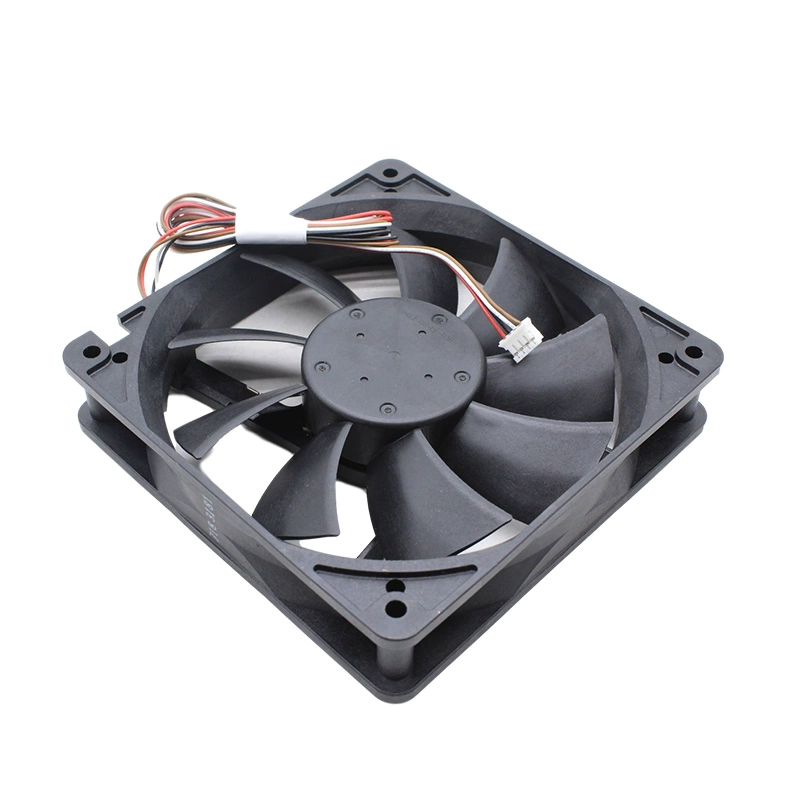

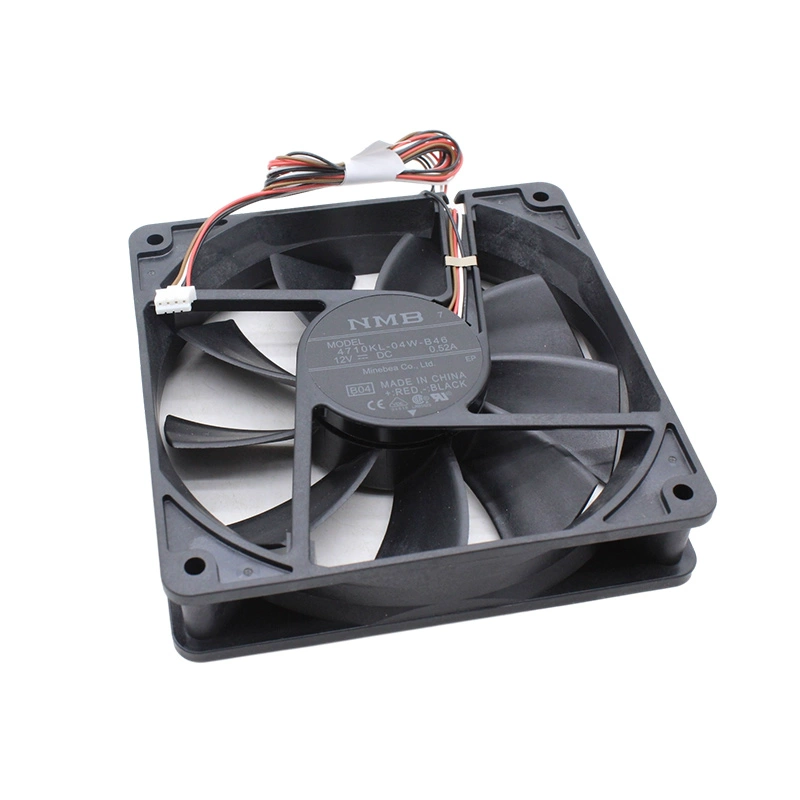

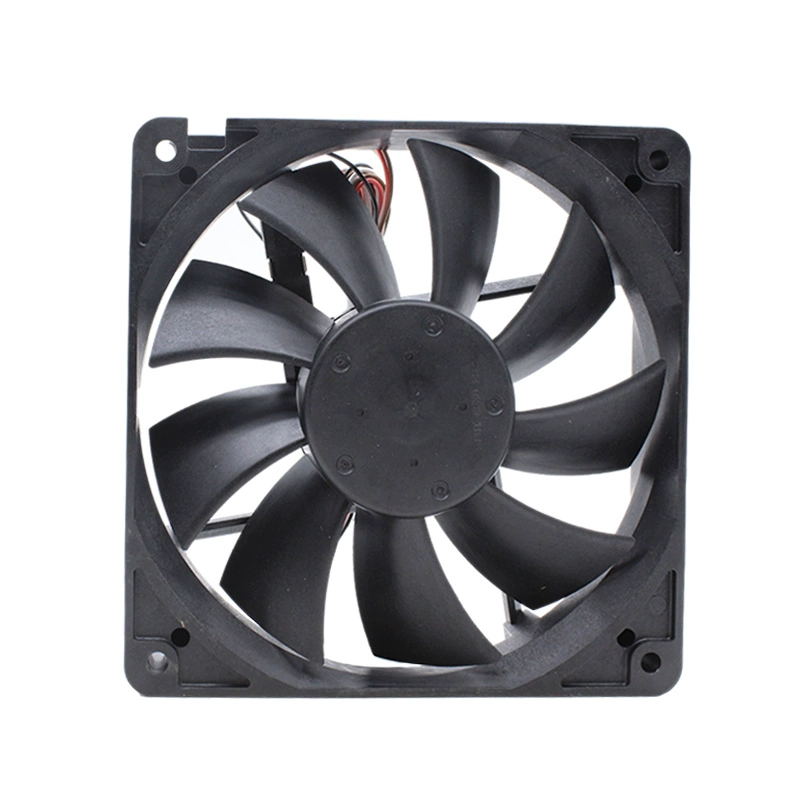

The NMB 4710KL-04W-B46-B04 is a high-performance 12V DC axial cooling fan. Measuring 120mm x 120mm x 25mm, this fan is designed for effective thermal management in PC chassis, servers, and other electronic systems. It operates at a rated current of 0.52A, consuming 6.24W of power. This allows it to achieve a speed of 3600 RPM, delivering a substantial airflow of 83.12 CFM and a static pressure of 0.184 inch-H2O. Its noise level is 53 dBA. The fan features durable double ball bearings for an extended operational lifespan of 80,000 hours. It comes with a 4-wire connector, providing power, ground, speed measurement (tachometer), and an alarm output.
Model Number: 4710KL-04W-B46-B04
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V DC
Rated Current: 0.52A
Rated Power: 6.24W
Speed: 3600 RPM
Airflow: 83.12 CFM (0.215 m³/min)
Static Pressure: 0.184 inch-H2O (58 Pa)
Noise Level: 53 dBA
Connector: 4-Wire Leads
Bearing Type: Double Ball Bearing
Life Expectancy: 80,000 hours
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Speed Measurement Function (Tachometer), Alarm Function
