Description
Product Summary

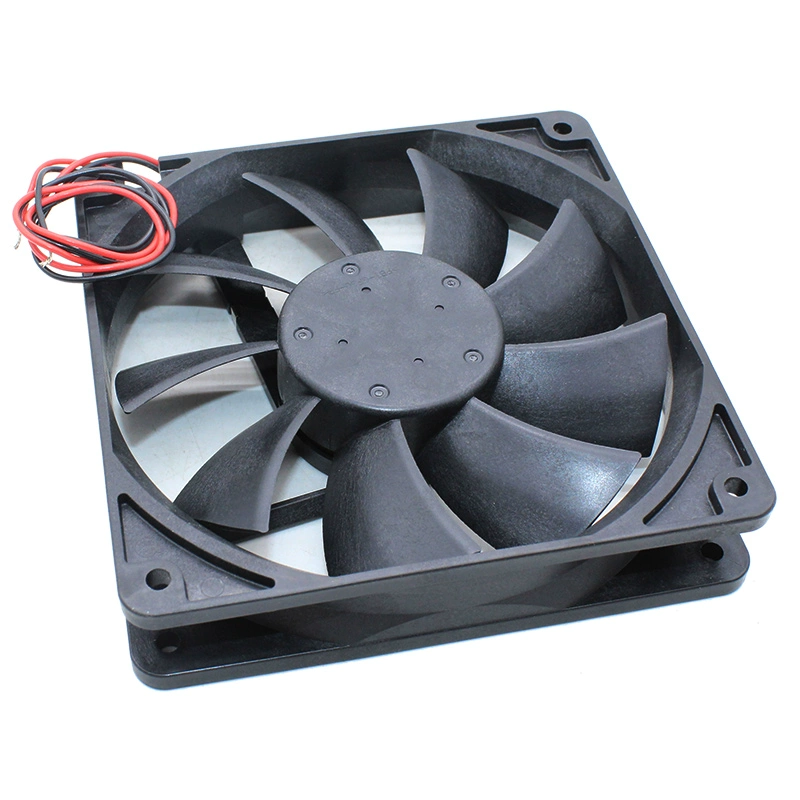

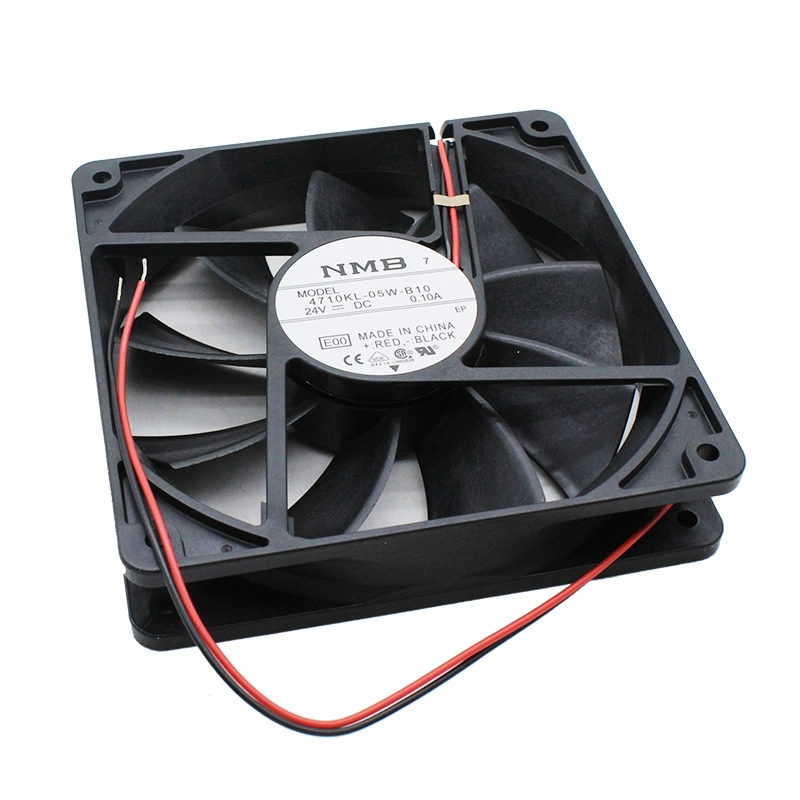

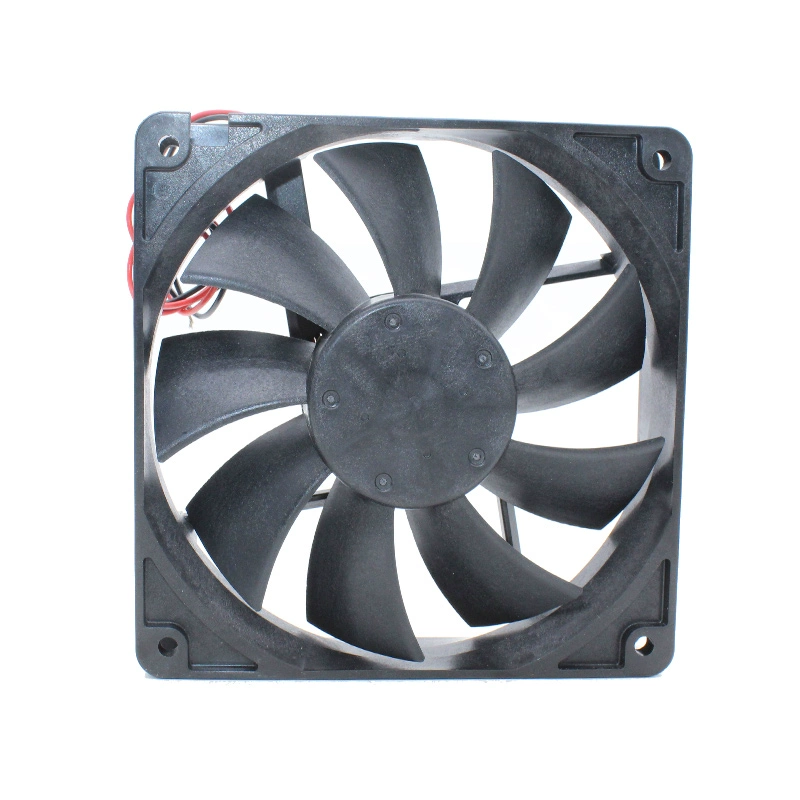

The NMB 4710KL-05W-B10-E00 is a reliable 24V DC axial cooling fan. Measuring 119mm x 119mm x 25mm, this fan is designed for general purpose thermal management in various electronic devices, industrial equipment, and power supplies. It operates at a rated current of 0.10A, consuming 2.4W of power. This allows it to achieve a speed of 1600 RPM, delivering an airflow of 63.5 CFM and a static pressure of 0.072 inch-H2O. Its noise level is 27 dBA, making it a relatively quiet option. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. It comes with 2-wire leads for simple power connection.
Model Number: 4710KL-05W-B10-E00
Manufacturer: NMB Technologies Corporation (Minebea)
Type: DC Axial Cooling Fan
Dimensions: 119mm x 119mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Rated Current: 0.10A
Rated Power: 2.4W (calculated: 24V * 0.10A)
Speed: 1600 RPM
Airflow: 63.5 CFM (1.80 m³/min)
Static Pressure: 0.072 inch-H2O (17.9 Pa)
Noise Level: 27 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10 Life)
Frame Material: Plastic (UL94V-0)
Impeller (Blade) Material: Plastic (UL94V-0)
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
