Description

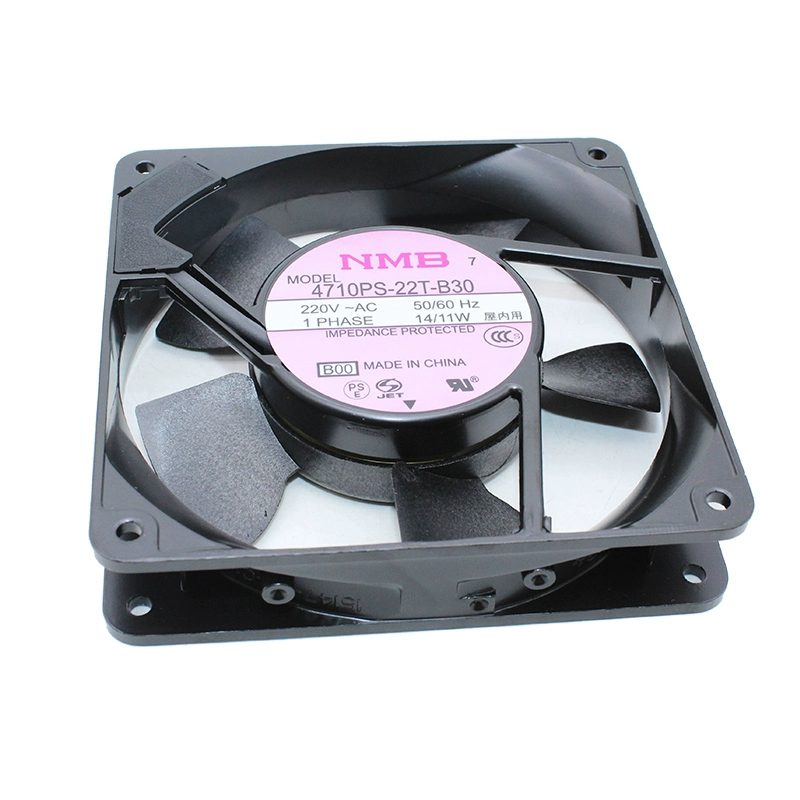

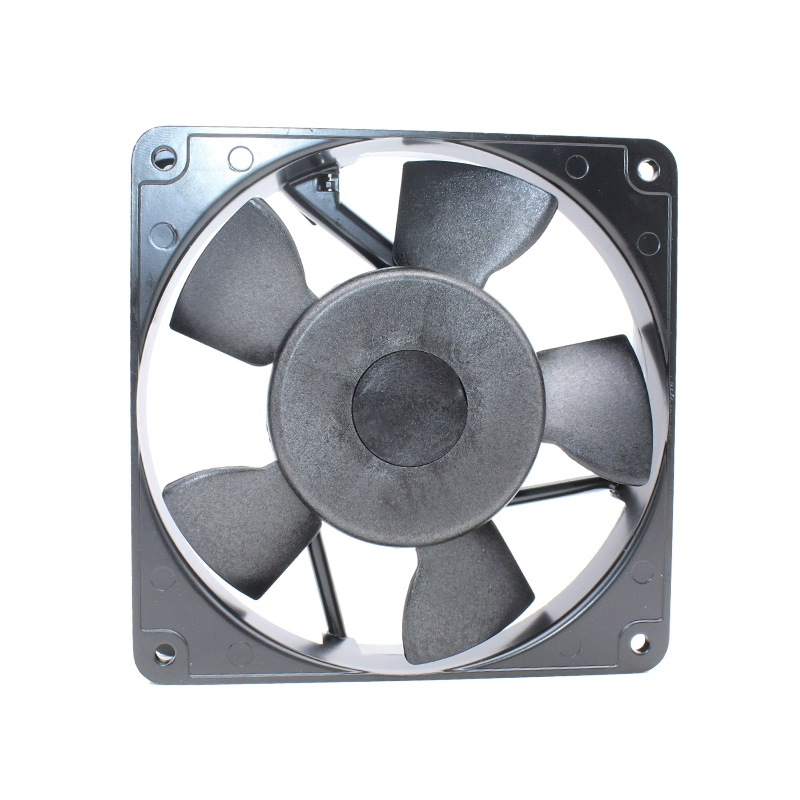

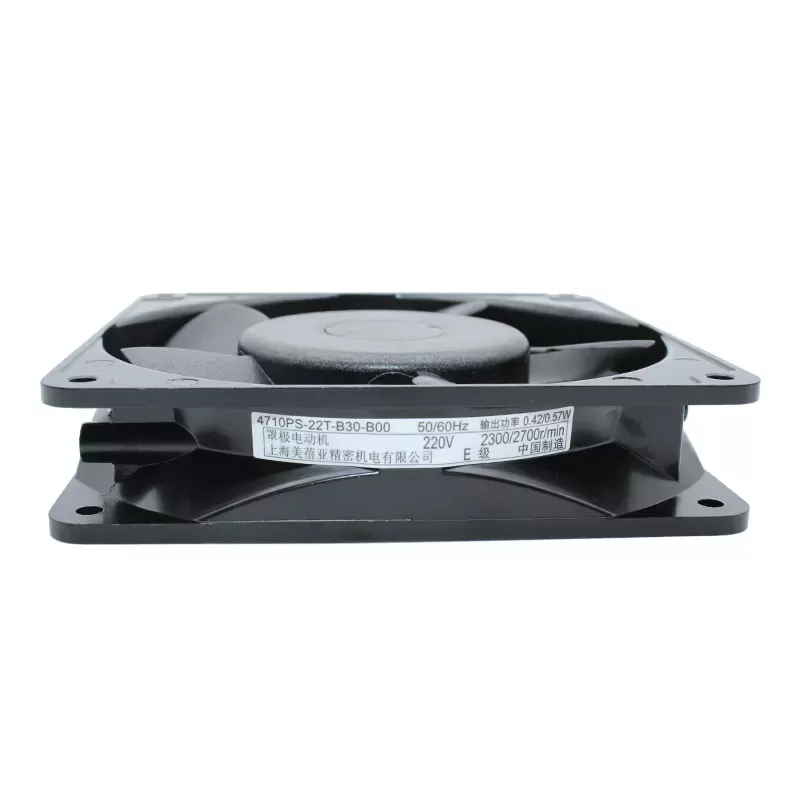

The NMB 4710PS-22T-B30-B00 is a reliable 220V AC axial cooling fan from NMB Technologies Corporation, with compact dimensions of 119mm x 119mm x 25mm. Designed for continuous operation in various industrial and electronic systems, this fan exhibits performance variations depending on the operating frequency. At 60Hz, it draws 0.08A (11W), spins at 2700 RPM, and delivers 71.4 CFM of airflow with a noise level of 38.0 dBA. When operating at 50Hz, it draws 0.10A (14W), runs at 2300 RPM, and provides 64.3 CFM of airflow with a quieter 34.0 dBA noise level. Equipped with durable ball bearings, it boasts an exceptional life expectancy of 100,000 hours at 25°C. The fan uses 2-wire leads for connection and features impedance protection, ensuring stable and long-term thermal management.
Model Number: 4710PS-22T-B30-B00
Manufacturer: NMB Technologies Corporation
Type: AC Axial Cooling Fan
Dimensions: 119mm x 119mm x 25mm
Rated Voltage: 220V AC
Frequency: 50Hz / 60Hz
Rated Current (50Hz): 0.10A
Rated Current (60Hz): 0.08A
Rated Power (50Hz): 14W
Rated Power (60Hz): 11W
Speed (50Hz): 2300 RPM
Speed (60Hz): 2700 RPM
Airflow (50Hz): 64.3 CFM / 1.8 m³/min
Airflow (60Hz): 71.4 CFM / 2.0 m³/min
Static Pressure (50Hz): 0.16 inch-H2O / 41.2 Pa
Static Pressure (60Hz): 0.16 inch-H2O / 41.2 Pa
Noise Level (50Hz): 34.0 dBA
Noise Level (60Hz): 38.0 dBA
Connector: 2 Terminals
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Polycarbonate
Features: Impedance Protected
