Description

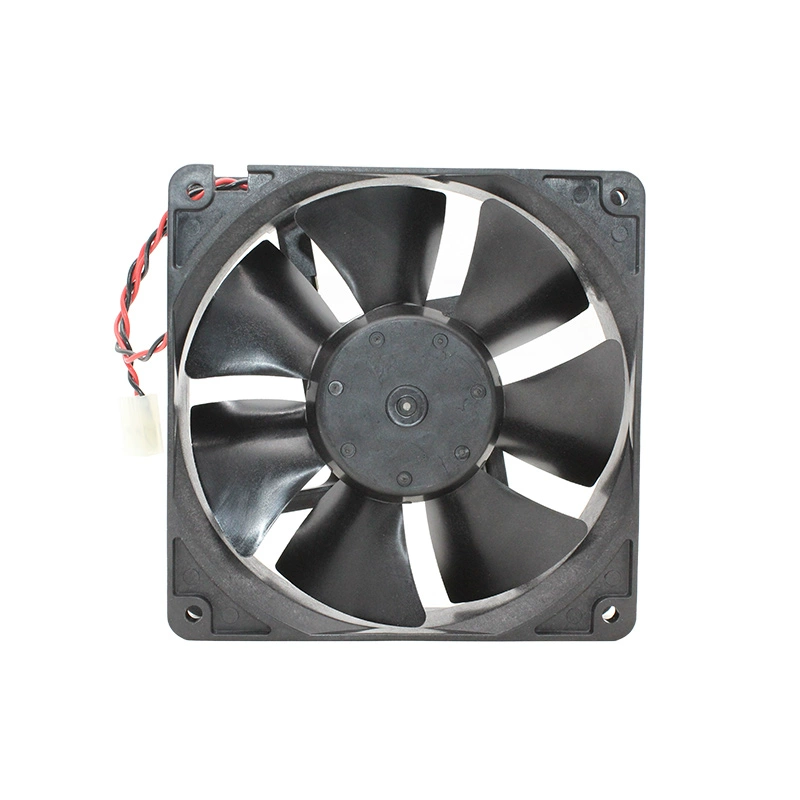

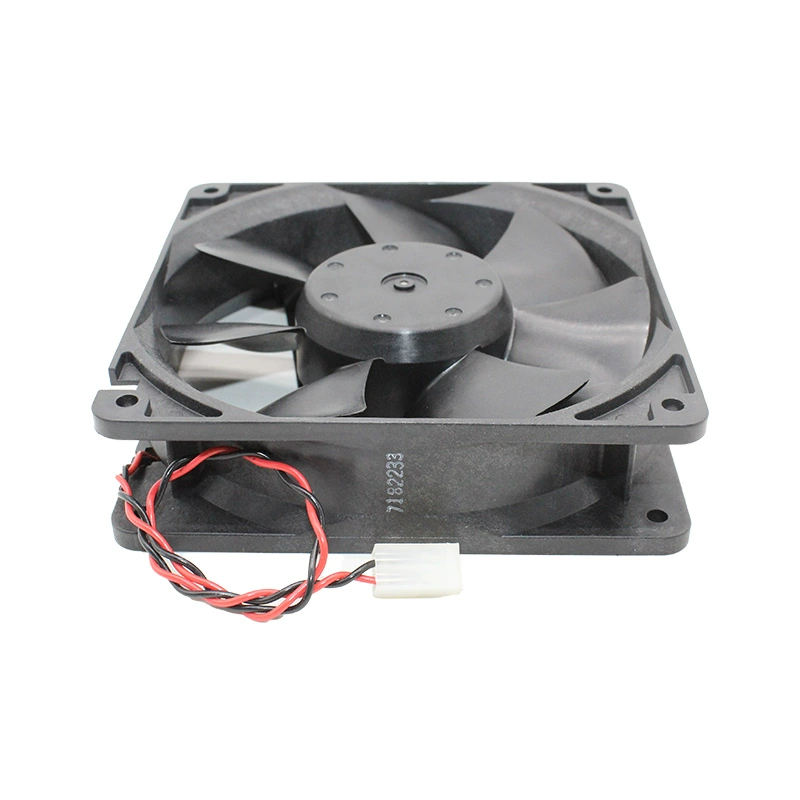

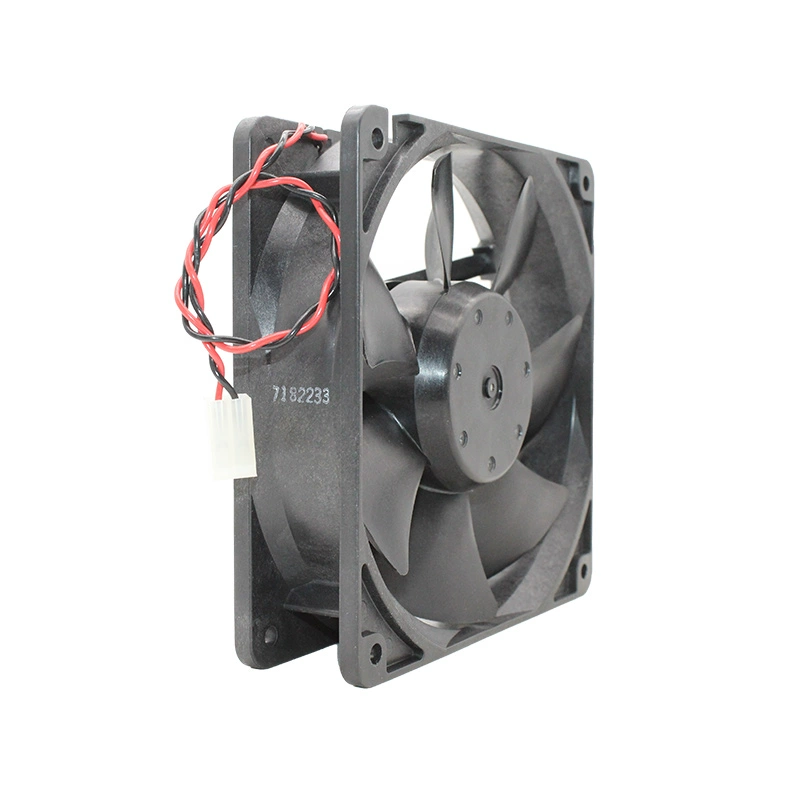

The NMB 4712KL-05W-B30-P00 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 119mm x 119mm x 32mm. Operating at a rated current of 0.40A (9.6W), this fan is designed for applications requiring enhanced airflow and static pressure. It achieves a speed of 3300 RPM, delivering 120 CFM of airflow and a static pressure of 0.35 inch-H2O, with a noise level of 48 dBA. Equipped with durable ball bearings, it ensures a long operational life of 50,000 hours at 25°C. The fan utilizes 2-wire leads, providing a straightforward power connection along with features like auto-restart and polarity protection, making it a suitable choice for various industrial, electronic, and power supply cooling systems demanding more robust thermal management.
Model Number: 4712KL-05W-B30-P00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 119mm x 119mm x 32mm
Rated Voltage: 24V DC
Rated Current: 0.40A
Rated Power: 9.6W
Speed: 3300 RPM
Airflow: 120 CFM / 3.40 m³/min
Static Pressure: 0.35 inch-H2O / 87 Pa
Noise Level: 48 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
