Description

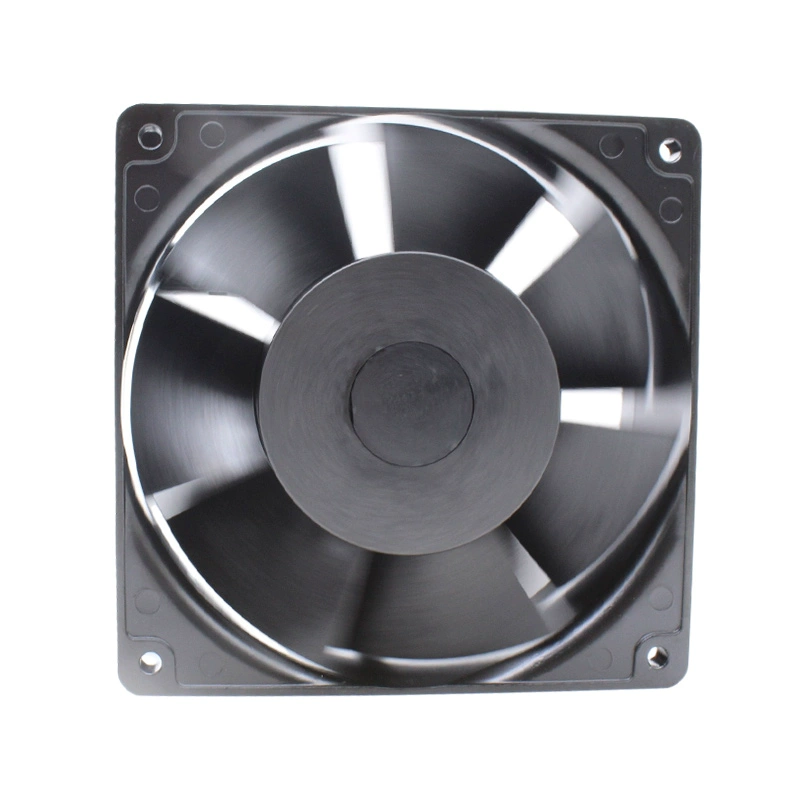

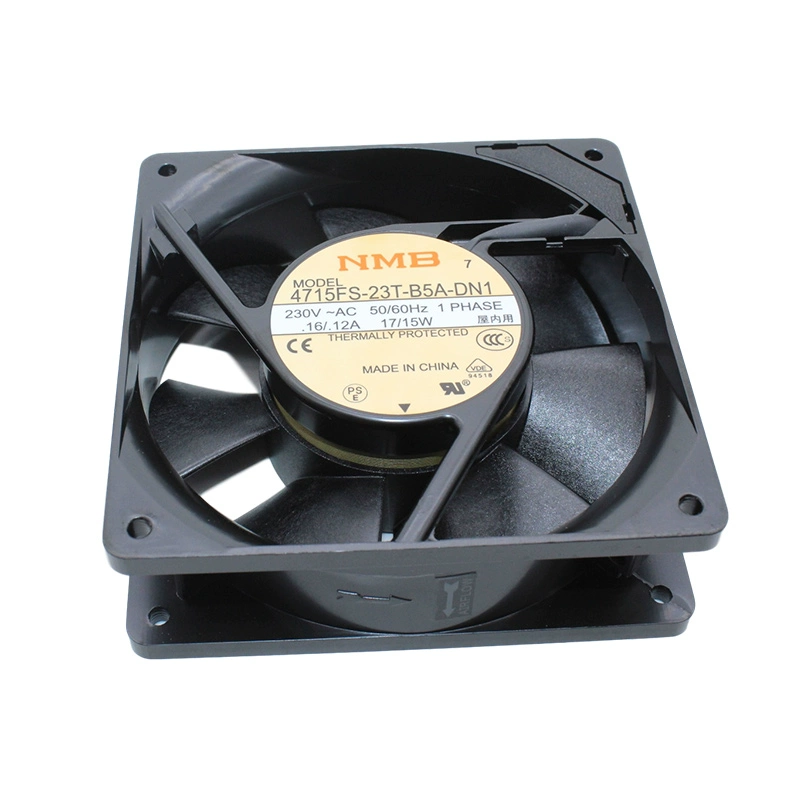

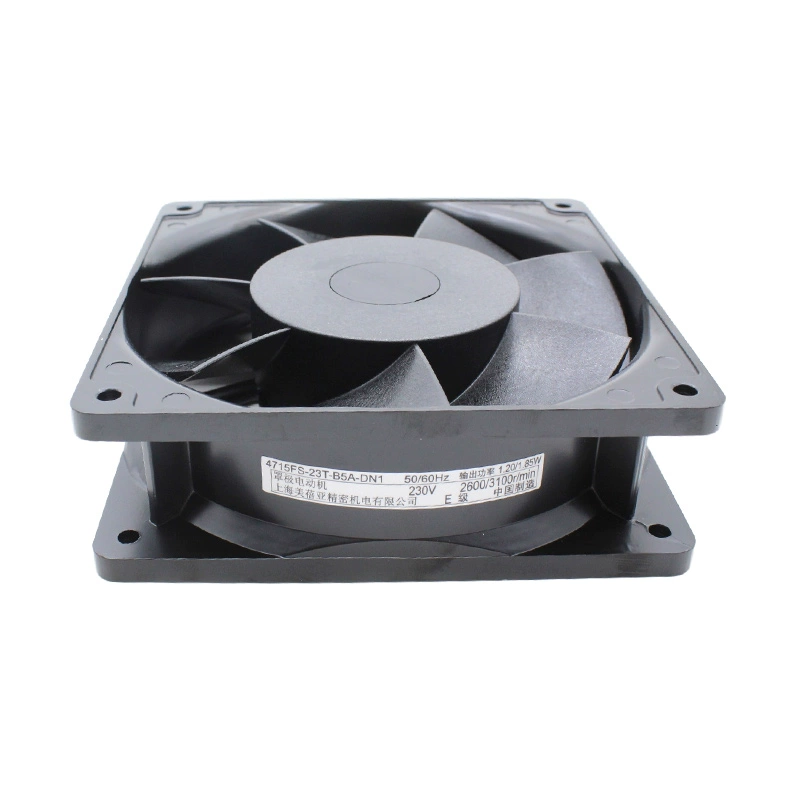

The NMB 4715FS-23T-B5A-DN1 is a high-performance 230V AC axial cooling fan manufactured by NMB Technologies Corporation, with dimensions of 119mm x 119mm x 38mm. Designed for continuous operation in various industrial and electronic systems, this fan operates at a rated current of 0.16A (17W) at 50Hz and 0.12A (15W) at 60Hz. It delivers a substantial airflow of 110 CFM at a rotational speed of 3100 RPM, generating a static pressure of 0.37 inch-H2O, suitable for general cooling applications. Equipped with robust ball bearings, it ensures an extended operational life of 100,000 hours at 25°C, while producing a noise level of 45.0 dBA. The fan utilizes 2-wire leads with quick connect terminals for straightforward power connection, incorporating impedance protection and auto-restart features for enhanced reliability.
Model Number: 4715FS-23T-B5A-DN1
Manufacturer: NMB Technologies Corporation
Type: AC Axial Cooling Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 230V AC
Rated Current: 0.16A / 0.12A (50Hz / 60Hz)
Rated Power: 17W / 15W (50Hz / 60Hz)
Speed: 3100 RPM
Airflow: 110 CFM / 3.1 m³/min
Static Pressure: 0.37 inch-H2O / 92.5 Pa
Noise Level: 45.0 dBA
Connector: 2-Wire Leads (Quick Connect Terminals / Blade Type)
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Plastic
Features: Impedance Protected, Auto Restart
