Description

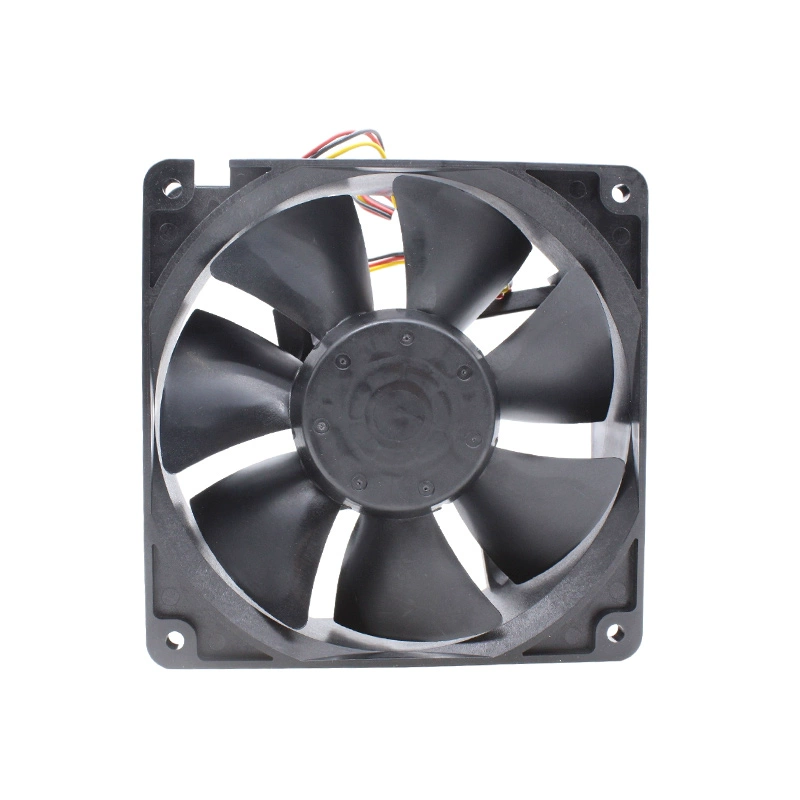

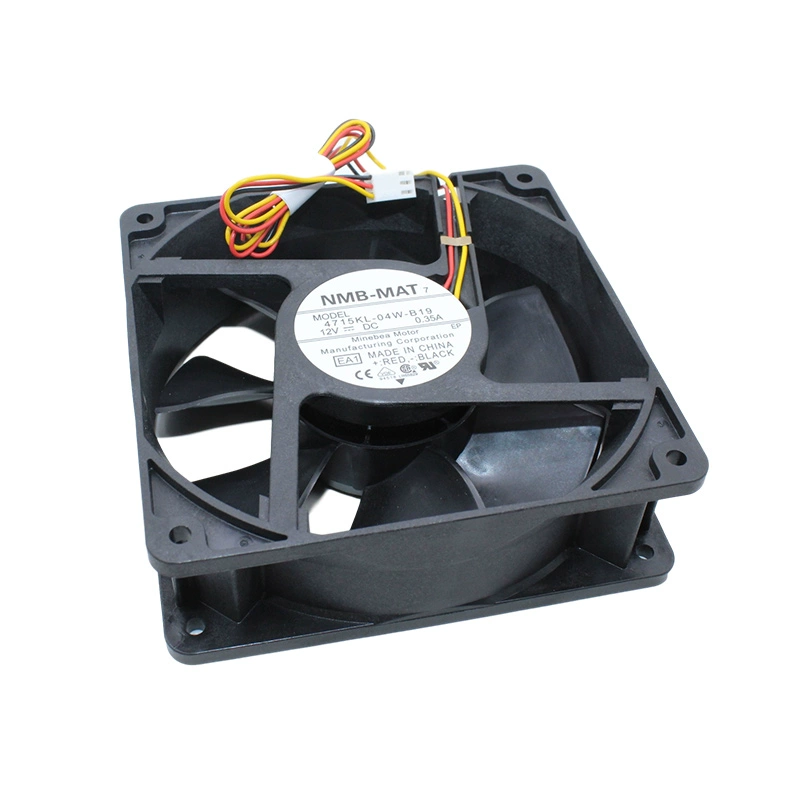

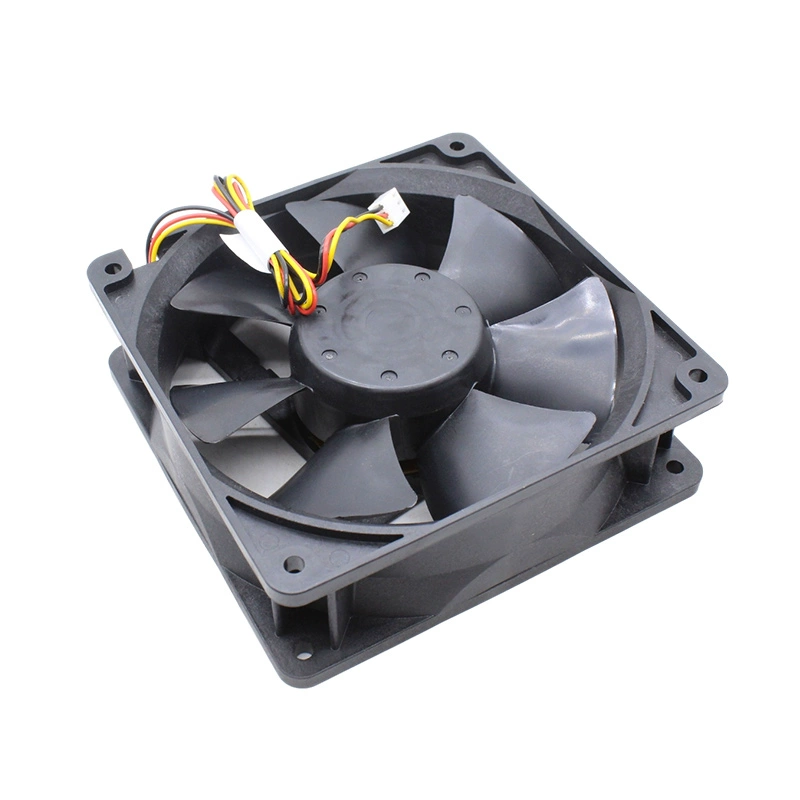

The NMB 4715KL-04W-B19-EA1 is a reliable DC Axial Cooling Fan from NMB Technologies, designed for effective thermal management in various electronic systems. Operating on 12V DC power, it draws 0.35A of current, resulting in 4.2W of power consumption. Measuring 119mm x 119mm x 38mm, this fan is well-suited for cooling applications in computer cases, power supplies, industrial control cabinets, and other equipment requiring good airflow. It rotates at a speed of 2800 RPM, delivering an airflow of 101.7 CFM and generating a static pressure of 0.23 inch-H2O. With a noise level of 40 dBA, it offers effective cooling. Equipped with 3-wire leads, it includes a speed sensor (tachometer) for monitoring fan speed and utilizes durable ball bearings. The fan boasts a life expectancy of 50,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 4715KL-04W-B19-EA1
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.35A
Rated Power: 4.2W
Speed: 2800 RPM
Airflow: 101.7 CFM
Static Pressure: 0.23 inch-H2O
Noise Level: 40 dBA
Dimensions: 119mm x 119mm x 38mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), Polarity Protection
