Description

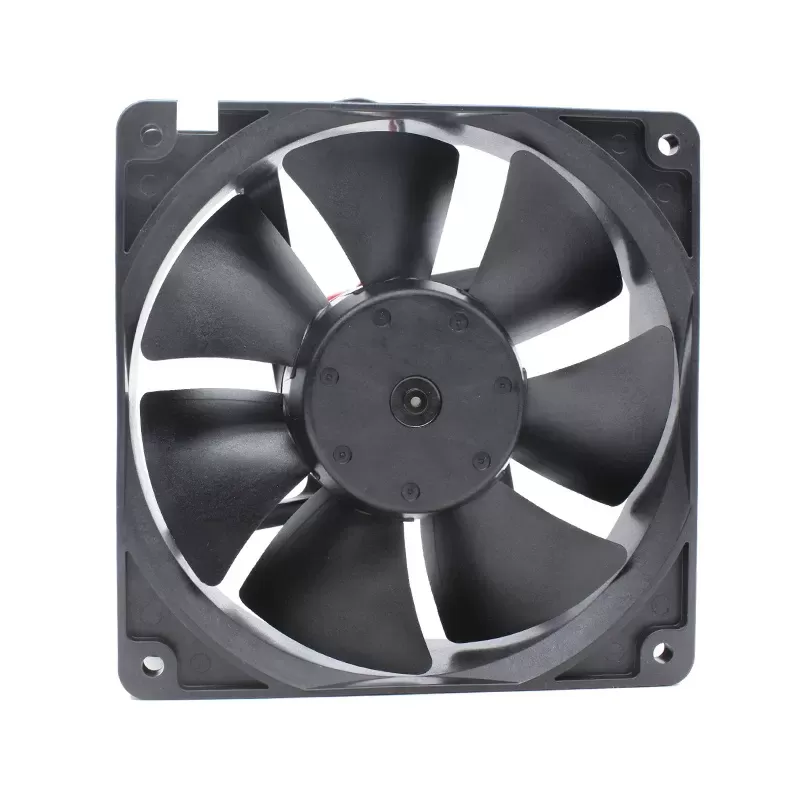

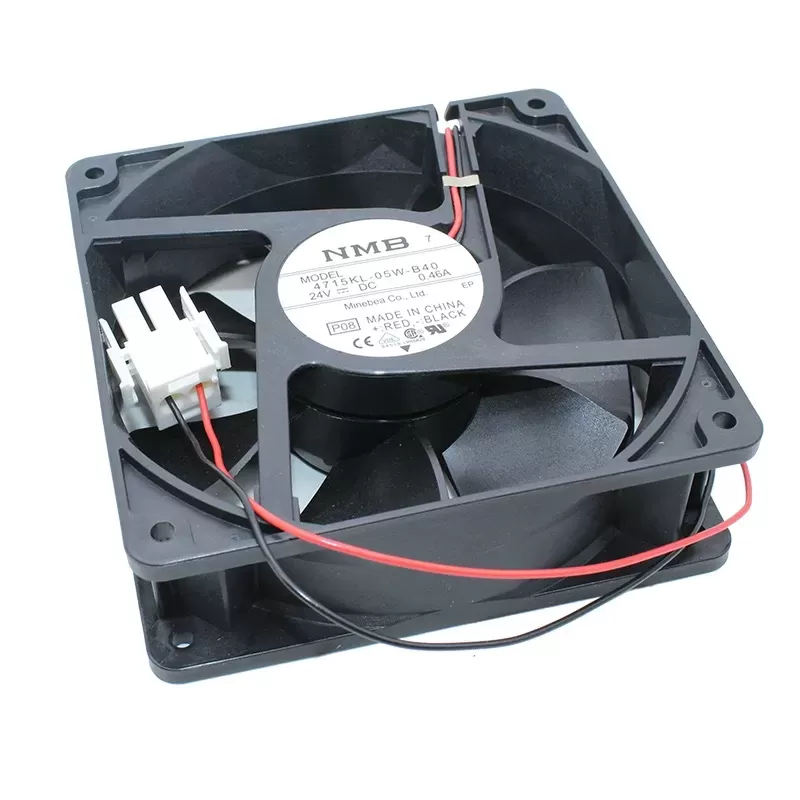

The NMB 4715KL-05W-B40-P08 is a powerful 24V DC axial cooling fan measuring 119mm x 119mm x 38mm. Operating at a rated current of 0.46A (11.04W), this fan is engineered for effective thermal management in various electronic systems and equipment requiring substantial airflow. It achieves a rotational speed of 3700 RPM, delivering 145.0 CFM of airflow with a static pressure of 0.42 inch-H2O (104.5 Pa). Its noise level is 49.0 dBA. The fan is equipped with ball bearings for a long operational life of 50,000 hours at 25°C. Connectivity is via 2-wire leads, and integrated features include auto-restart and polarity protection, ensuring reliable performance.
Model Number: 4715KL-05W-B40-P08
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 27.6V DC
Rated Current: 0.46A
Rated Power: 11.04W
Speed: 3700 RPM
Airflow: 145.0 CFM / 4.10 m³/min
Static Pressure: 0.42 inch-H2O / 104.5 Pa
Noise Level: 49.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
