Description

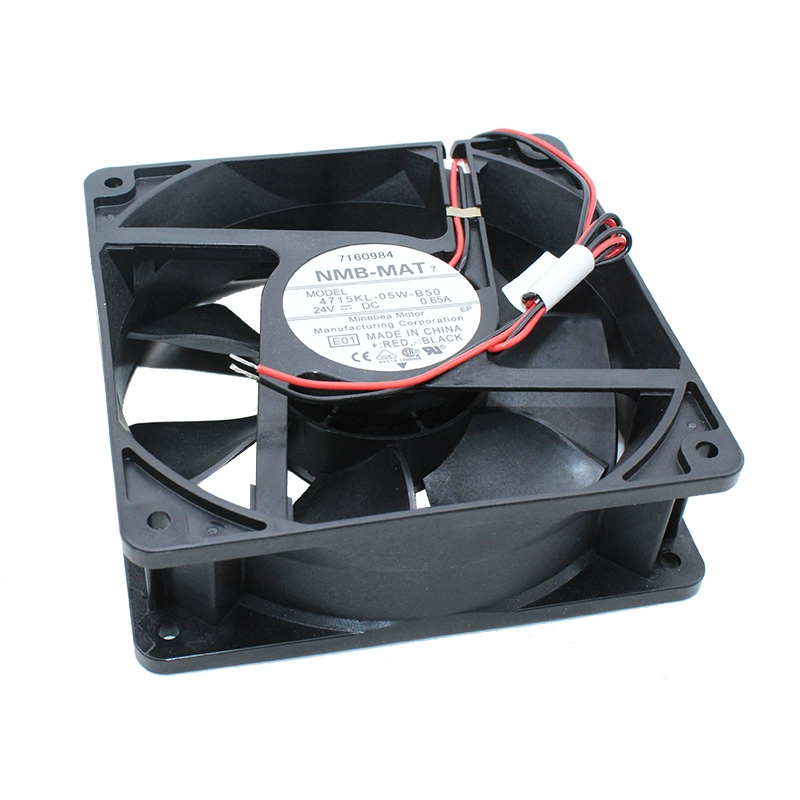

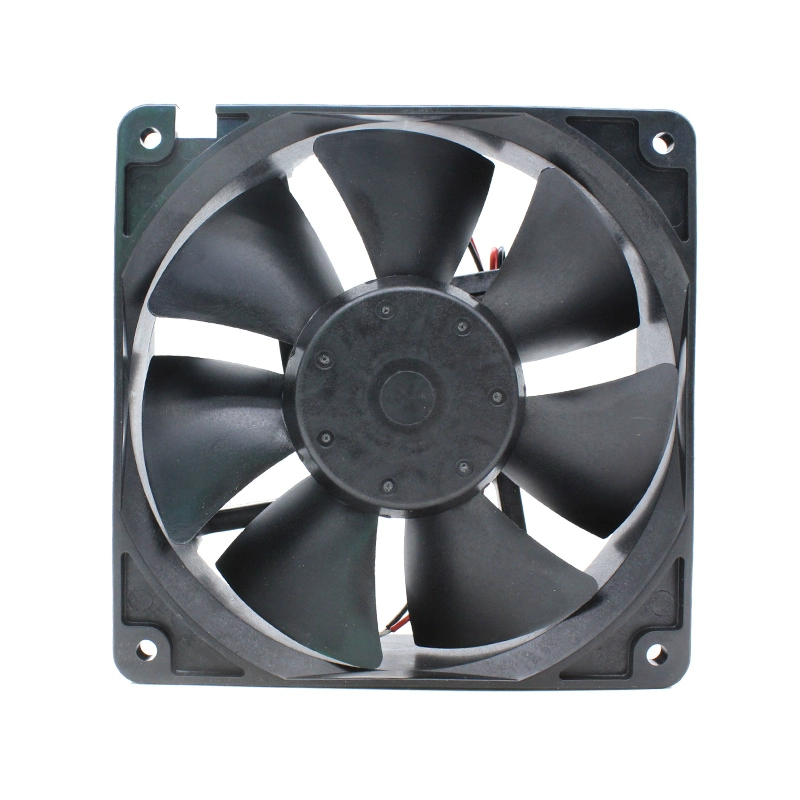

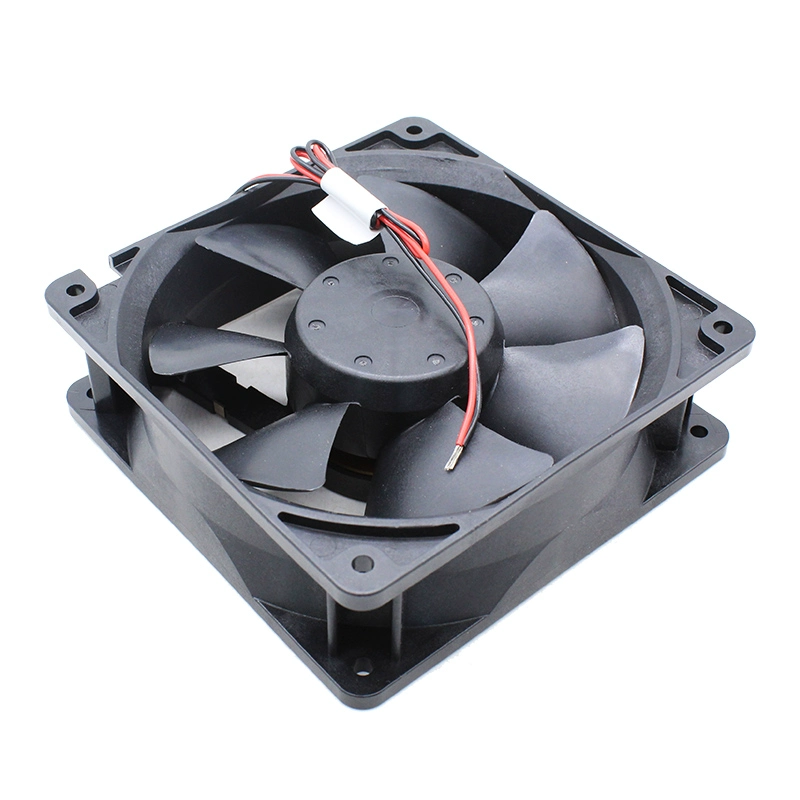

The NMB 4715KL-05W-B50-E01, now specified with a robust 0.65A current, represents an even more powerful version of this 24V DC axial cooling fan from NMB Technologies, maintaining its 120x120x38mm form factor. This variant draws 15.6W, delivering the same high fan speed of 3600 RPM, substantial 130.0 CFM of airflow, and 0.44 inch-H2O static pressure as the 0.50A version. This consistency in performance metrics for a higher current often indicates a more robust motor design for sustained operation or to meet specific load conditions. Equipped with durable ball bearings, it maintains a reliable life expectancy of 50,000 hours at 25°C. Its 2-wire configuration provides straightforward power connection, making it a dependable choice for high-performance cooling applications that require significant air movement and reliability, all while operating at a noise level of 50.0 dBA.
Model Number: 4715KL-05W-B50-E01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 18V to 25.8V DC
Rated Current: 0.65A
Rated Power: 15.6W
Speed: 3600 RPM
Airflow: 130.0 CFM / 3.68 m³/min
Static Pressure: 0.44 inch-H2O / 109.6 Pa
Noise Level: 50.0 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
