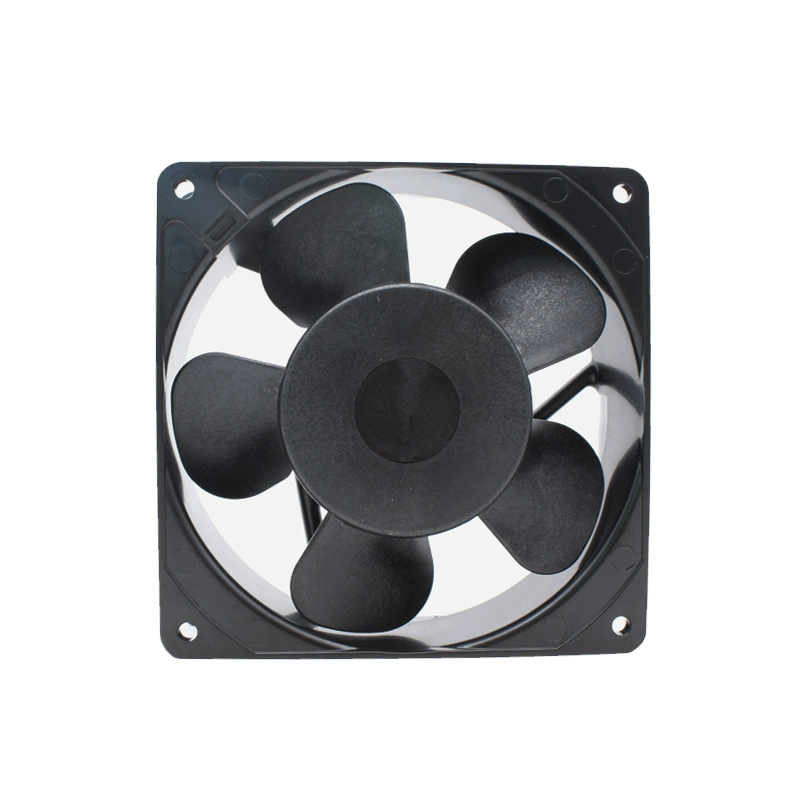

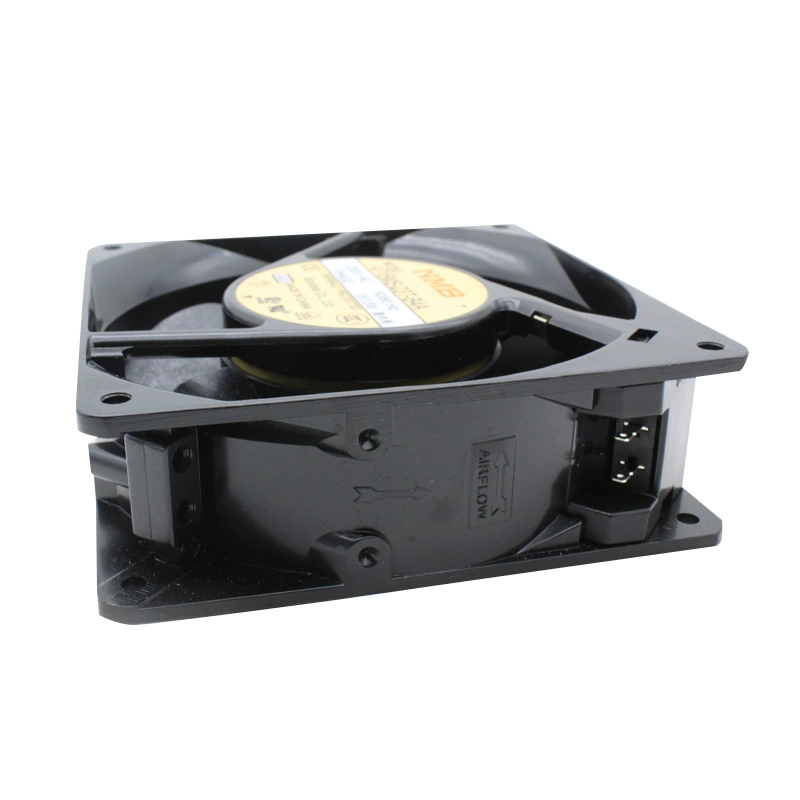

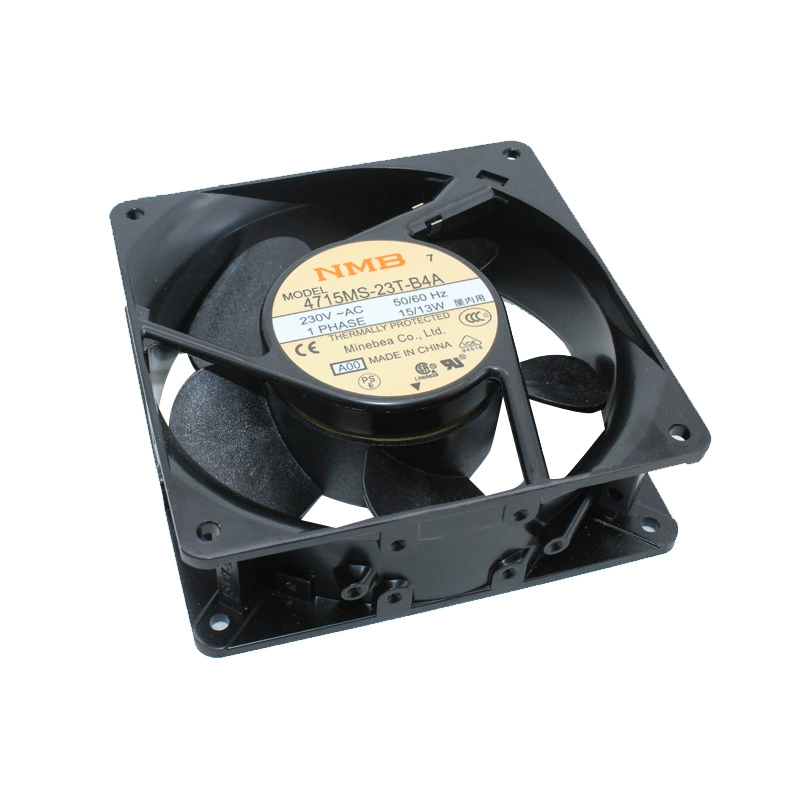

4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan

$20.78

SKU: 4715MS-23T-B4A-A00
Tag:

Description

The NMB 4715MS-23T-B4A-A00 is a robust AC Axial Cooling Fan from NMB Technologies, designed for reliable and continuous thermal management in various applications. Operating on 230V AC power at both 50Hz and 60Hz, its electrical and performance characteristics vary slightly with frequency. At 230V/50Hz, it draws 0.12A and consumes 15W, achieving a speed of 2450 RPM with an airflow of 85 CFM and static pressure of 0.22 inch-H2O, producing 35 dBA of noise. At 230V/60Hz, it draws 0.13A and consumes 13W, operating at 2750 RPM with 95 CFM airflow, 0.26 inch-H2O static pressure, and 39 dBA noise. Measuring 119mm x 119mm x 38mm, this fan is widely used in power supplies, control cabinets, and other industrial or IT equipment. Equipped with 2 terminals and durable ball bearings, it boasts a long life expectancy of 100,000 hours at 25°C. Constructed with an aluminum frame and plastic impeller, it operates reliably within a temperature range of -10°C to 70°C and includes impedance and thermal protection for enhanced safety and longevity.
4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan

Model Number: 4715MS-23T-B4A-A00
Manufacturer: NMB Technologies
Type: AC Axial Cooling Fan
Rated Voltage: 230V AC
Operating Voltage Range: 175V to 265V AC
Frequency: 50/60 Hz
Rated Current: 0.12A (at 230V, 50Hz) / 0.13A (at 230V, 60Hz)
Rated Power: 15W (at 50Hz) / 13W (at 60Hz)
Speed: 2450 RPM (at 50Hz) / 2750 RPM (at 60Hz)
Airflow: 85 CFM (at 50Hz) / 95 CFM (at 60Hz)
Static Pressure: 0.22 inch-H2O (at 50Hz) / 0.26 inch-H2O (at 60Hz)
Noise Level: 35 dBA (at 50Hz) / 39 dBA (at 60Hz)
Dimensions: 119mm x 119mm x 38mm
Connector: 2 Terminals (Quick Connect / Faston)
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Reinforced Plastic (PBT or Polycarbonate)
Features: Impedance Protected, Thermally Protected

4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan
4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan
4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan
4715MS-23T-B4A-A00 NMB 230V AC Axial cooling fan

Additional information

Weight 0.5 kg
