Description

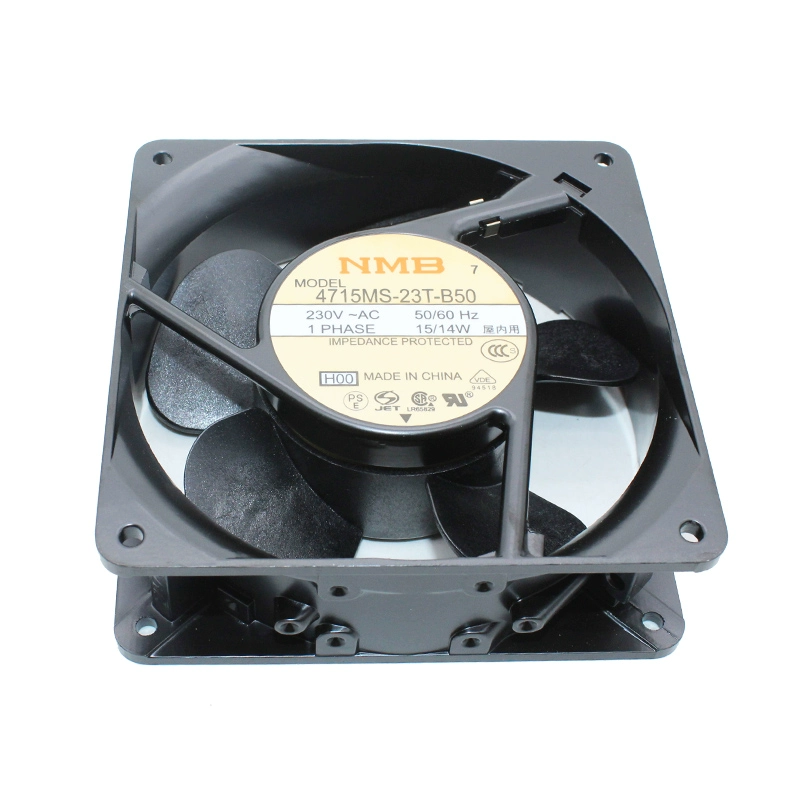

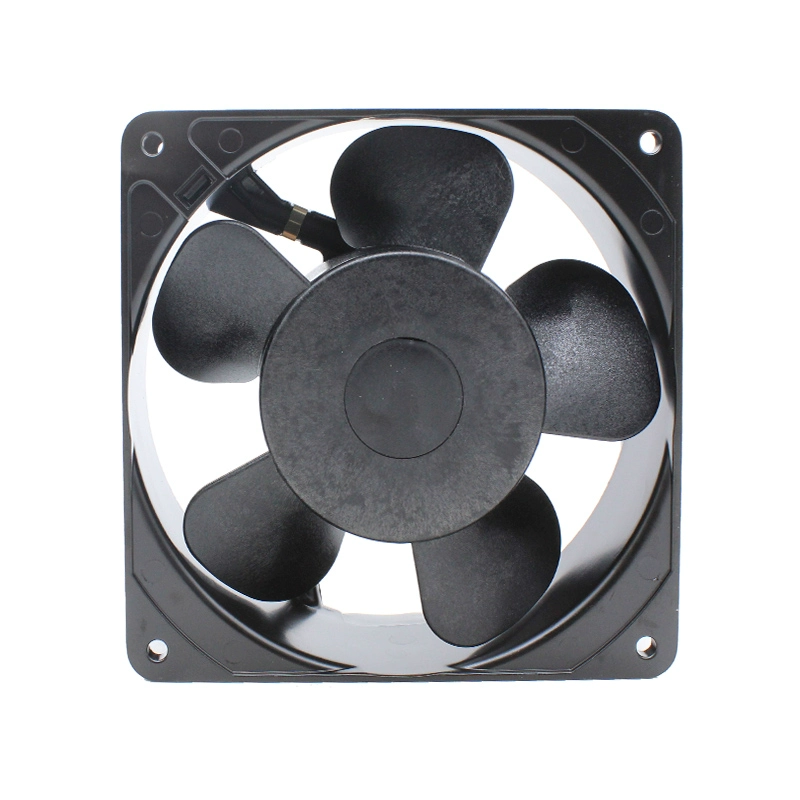

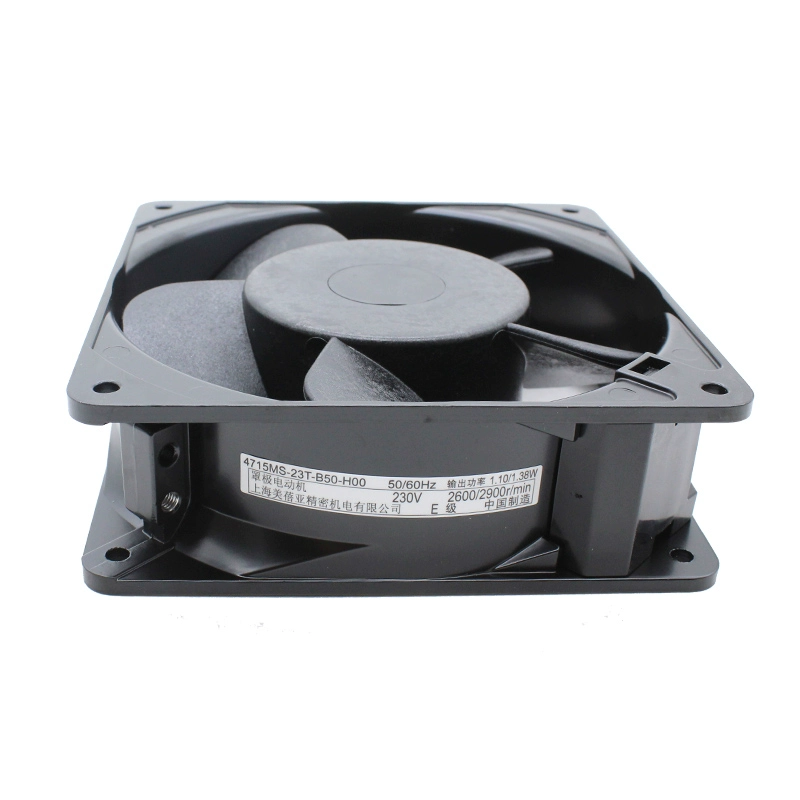

The NMB 4715MS-23T-B50-H00 is a robust 230V AC axial cooling fan from NMB Technologies Corporation, featuring standard dimensions of 119mm x 119mm x 38mm. It is designed for reliable and high-performance airflow in industrial equipment, power supplies, and server cabinets. Operating at a typical rated current of 0.12A (14W) at 60Hz, this fan achieves a speed of 2900 RPM, delivering a strong airflow of 102 CFM and a static pressure of 0.283 inch-H2O, with a noise level of 41.0 dBA. Equipped with durable ball bearings, it boasts an impressive operational life expectancy of 100,000 hours at 25°C. The fan uses 2-wire leads for connection and is impedance protected for enhanced reliability in continuous operation.
Model Number: 4715MS-23T-B50-H00
Manufacturer: NMB Technologies Corporation
Type: AC Axial Cooling Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 230V AC
Rated Current: 0.12A
Rated Power: 14W (at 60Hz) / 15W (at 50Hz)
Speed: 2900 RPM (at 60Hz) / 2600 RPM (at 50Hz)
Airflow: 102 CFM (at 60Hz) / 88.2 CFM (at 50Hz) / 2.89 m³/min (at 60Hz) / 2.50 m³/min (at 50Hz)
Static Pressure: 0.283 inch-H2O (at 60Hz) / 70.5 Pa (at 60Hz) / 0.255 inch-H2O (at 50Hz) / 63.7 Pa (at 50Hz)
Noise Level: 41.0 dBA (at 60Hz) / 37.0 dBA (at 50Hz)
Connector: 2 terminals
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Polycarbonate (PC), Fiberglass Reinforced
Features: Impedance Protected
