Description

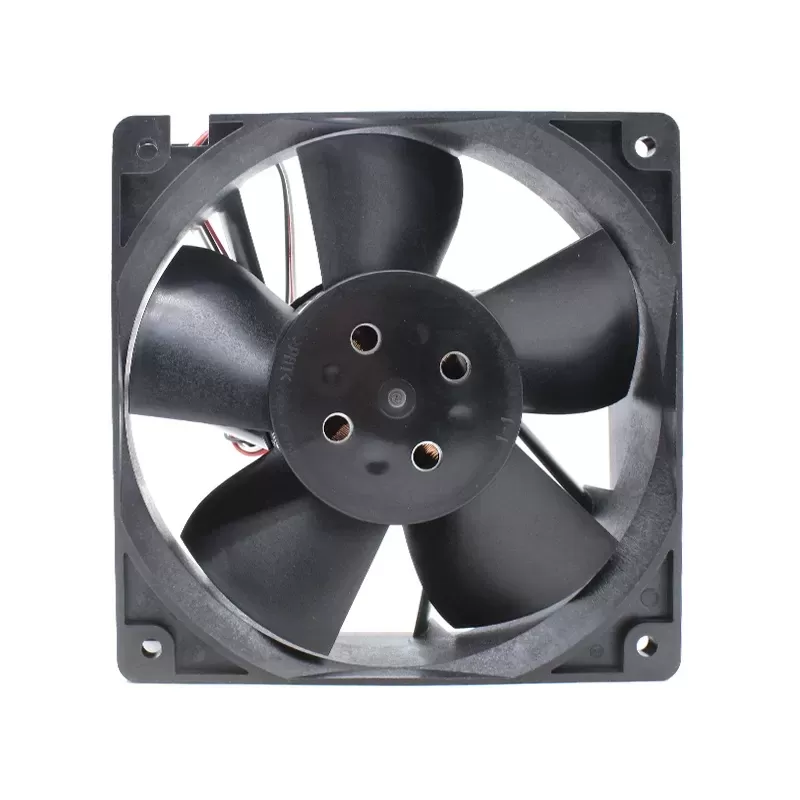

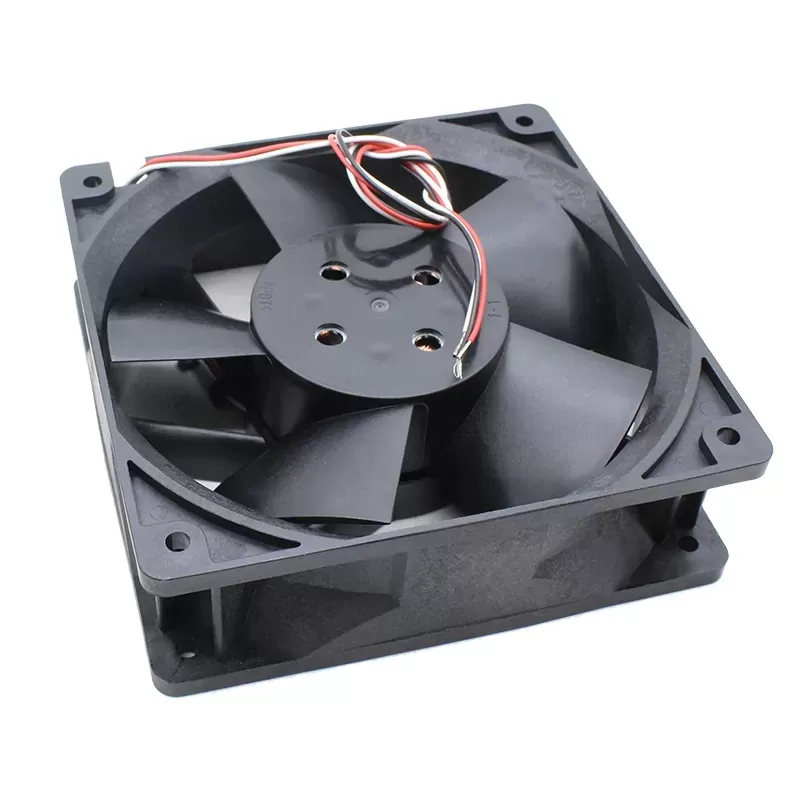

The NMB 4715VL-05W-B69-E01, now specified with a robust 0.89A current, is an even more powerful 24V DC axial cooling fan from NMB Technologies, maintaining its 120x120x38mm dimensions. This variant is engineered for highly demanding thermal management applications that require significant airflow and static pressure. It consumes 21.36W to operate at an estimated 5700 RPM, delivering an impressive 215.0 CFM of airflow and a high static pressure of 1.20 inch-H2O. Equipped with durable ball bearings, it boasts a very long life expectancy of 100,000 hours at 25°C. Its 3-wire configuration includes a speed sensor for real-time monitoring of fan status, which is essential for maintaining optimal system performance and reliability, even with its estimated noise level of 63.5 dBA.
Model Number: 4715VL-05W-B69-E01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 18V to 27.6V DC
Rated Current: 0.89A
Rated Power: 21.36W
Speed: 5700 RPM
Airflow: 215.0 CFM / 6.09 m³/min
Static Pressure: 1.20 inch-H2O / 299 Pa
Noise Level: 63.5 dBA
Dimensions: 120mm x 120mm x 38mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor, Polarity Protection
