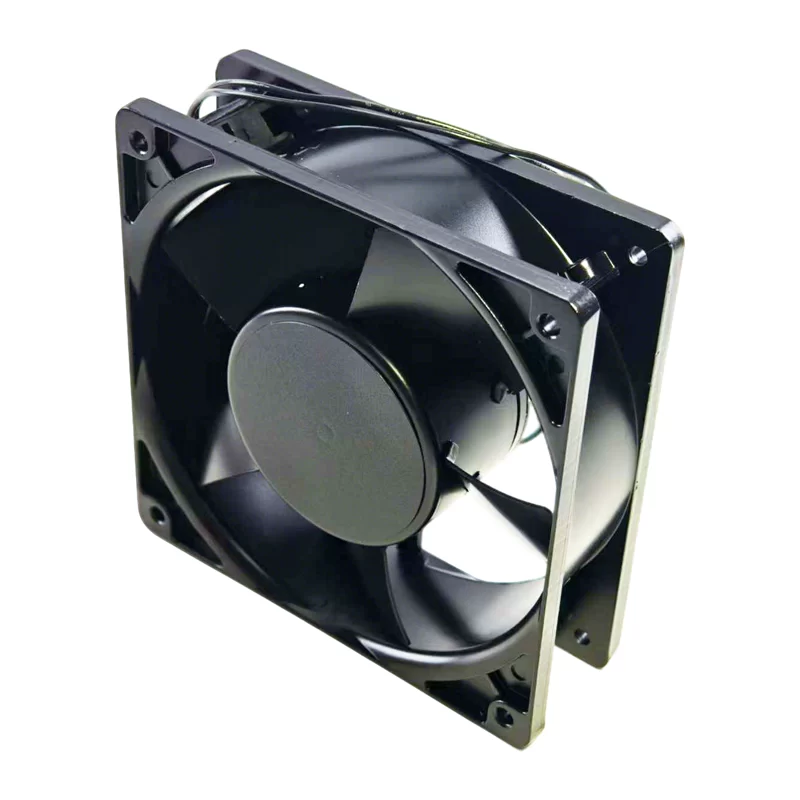

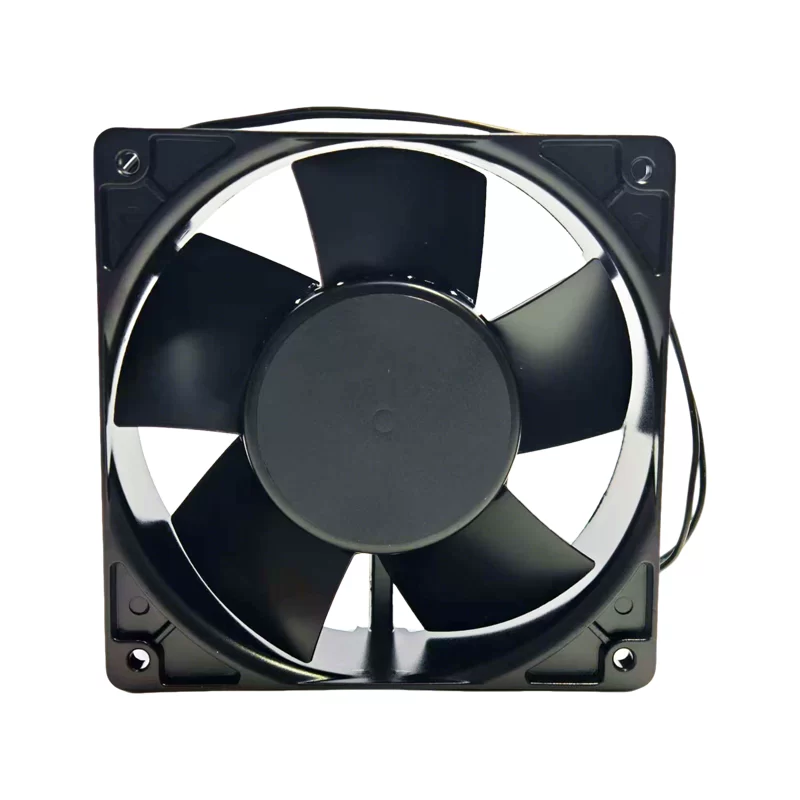

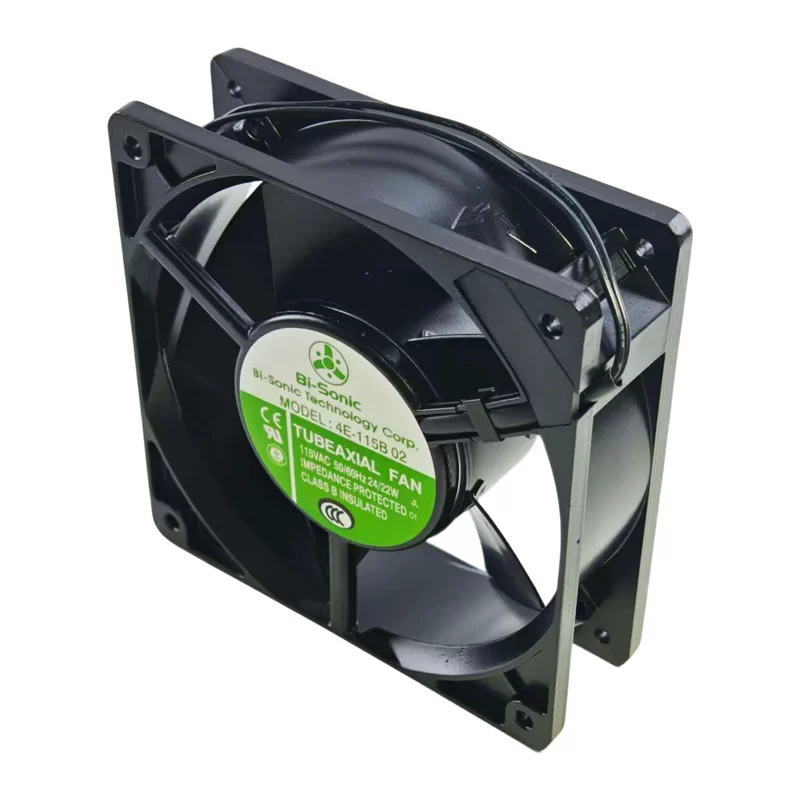

4E-115B 02 Bi-Sonic 115V AC Axial Fan

Description

The Bi-Sonic 4E-115B 02 is a durable AC axial fan with dimensions of 120 x 120 x 38 mm. It operates on 115V AC at a dual frequency of 50/60 Hz. The fan has a power consumption of 24/22 W, drawing an estimated 0.21/0.19 A of current. It runs at speeds of 2650/3100 RPM, delivering an airflow of approximately 95 CFM (161 m³/h) with a static pressure of 0.24 inch H₂O (60 Pa) and a noise level of 41 dB(A). The fan uses ball bearings for a long service life and features three-wire leads. This fan is ideal for general ventilation in industrial and commercial settings.

4E-115B 02 Fan Parameters
Manufacturer: Bi-Sonic
Model: 4E-115B 02
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 115V AC
Frequency: 50/60 Hz
Current Rating: 0.21 / 0.19 A
Power Consumption: 24 / 22 W
Airflow: 95 CFM (161 m³/h)
Static Pressure: 0.24 inch H₂O (60 Pa)
Speed: 2650 / 3100 RPM
Noise Level: 41 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Housing Material: Aluminum
Impeller Material: PBT Plastic
Operating Temperature: -20 °C ~ 80 °C
Weight: 400 g

Application
The 4E-115B 02 is a reliable AC fan designed for continuous operation. Its robust performance is suitable for general ventilation, cooling of electrical cabinets, HVAC systems, and industrial equipment where consistent airflow is required.
