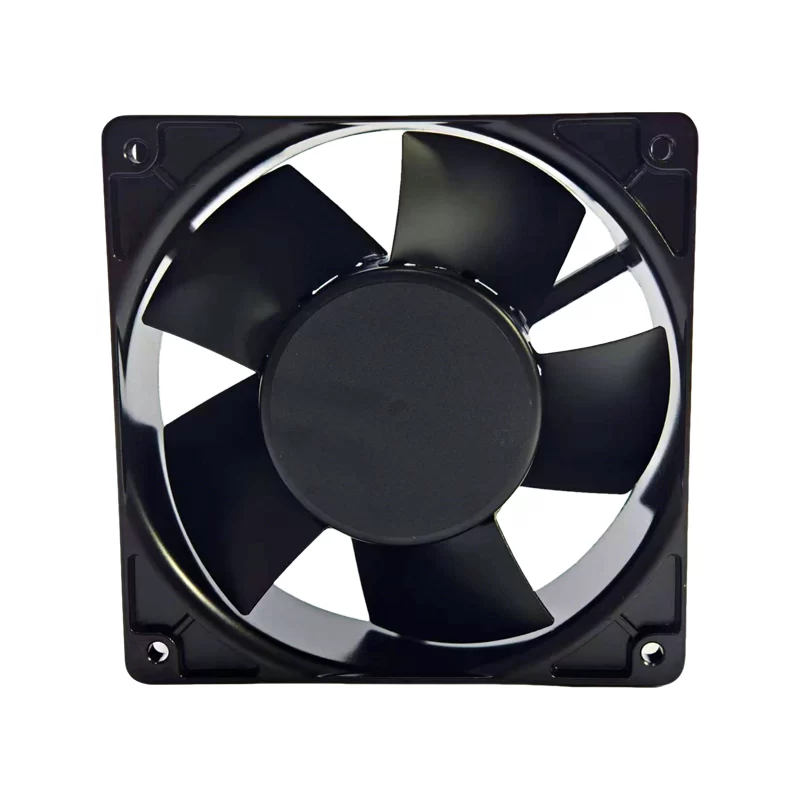

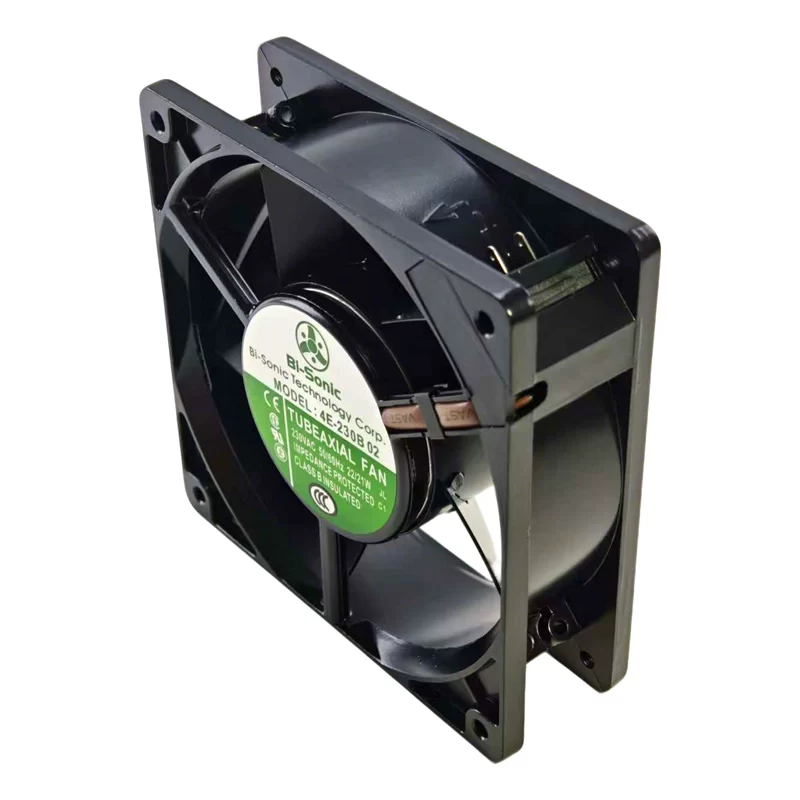

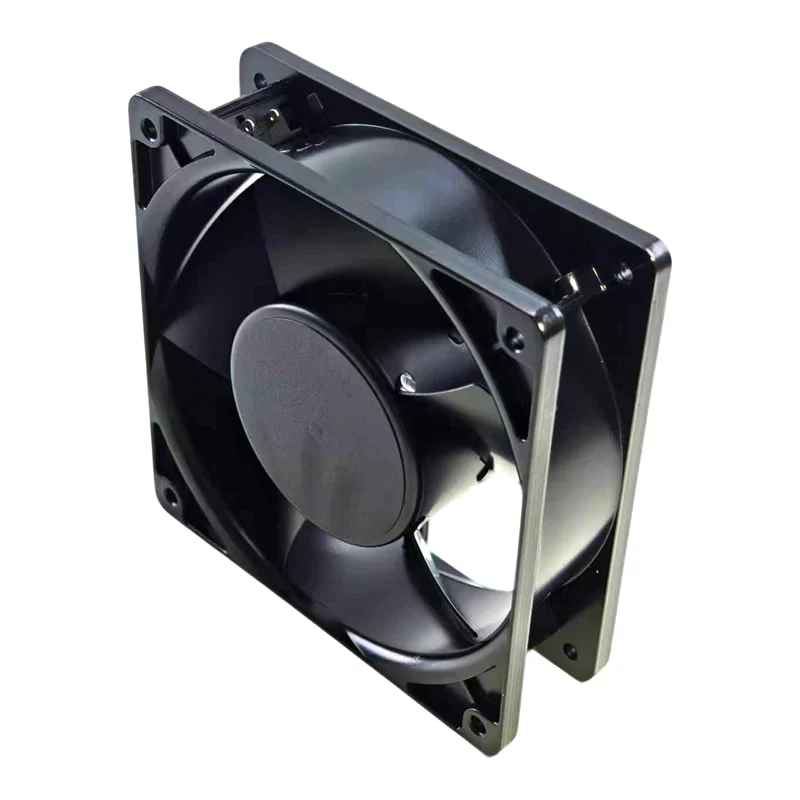

4E-230B 02 B-Sonic 230V AC Axial Fan

Description

The B-Sonic 4E-230B 02 is a high-performance multi-frequency AC axial fan with dimensions of 120 x 120 x 38 mm . It operates on 230V at both 50 Hz and 60 Hz. At 50 Hz, it draws 0.14 A of current, consumes 22 W of power, and delivers 179.4 CFM (304.8 m³/h) of airflow at 2700 RPM with a noise level of 46 dB(A). At 60 Hz, it draws 0.13 A, consumes 21 W, and delivers 203.4 CFM (345.6 m³/h) of airflow at 3000 RPM with a noise level of 50 dB(A). The fan achieves a static pressure of 0.29/0.27 inch H₂O (72.2/67.2 Pa) and connects via a two-wire termination.

4E-230B 02 Fan Parameters
Manufacturer: B-Sonic
Model: 4E-230B 02
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 230V
Rated Frequency: 50/60 Hz
Current Rating: 0.14/0.13 A
Power Consumption: 22/21 W
Airflow: 179.4/203.4 CFM (304.8/345.6 m³/h)
Static Pressure: 0.29/0.27 inch H₂O (72.2/67.2 Pa)
Speed: 2700/3000 RPM
Noise Level: 46/50 dB(A)
Termination: Two Wire Leads
Weight: 600 g
Application: The 4E-230B 02 is suitable for cooling in power supplies, industrial control cabinets, and commercial refrigeration systems.
