5114N ebmpapst 24V DC Axial Fan

Description

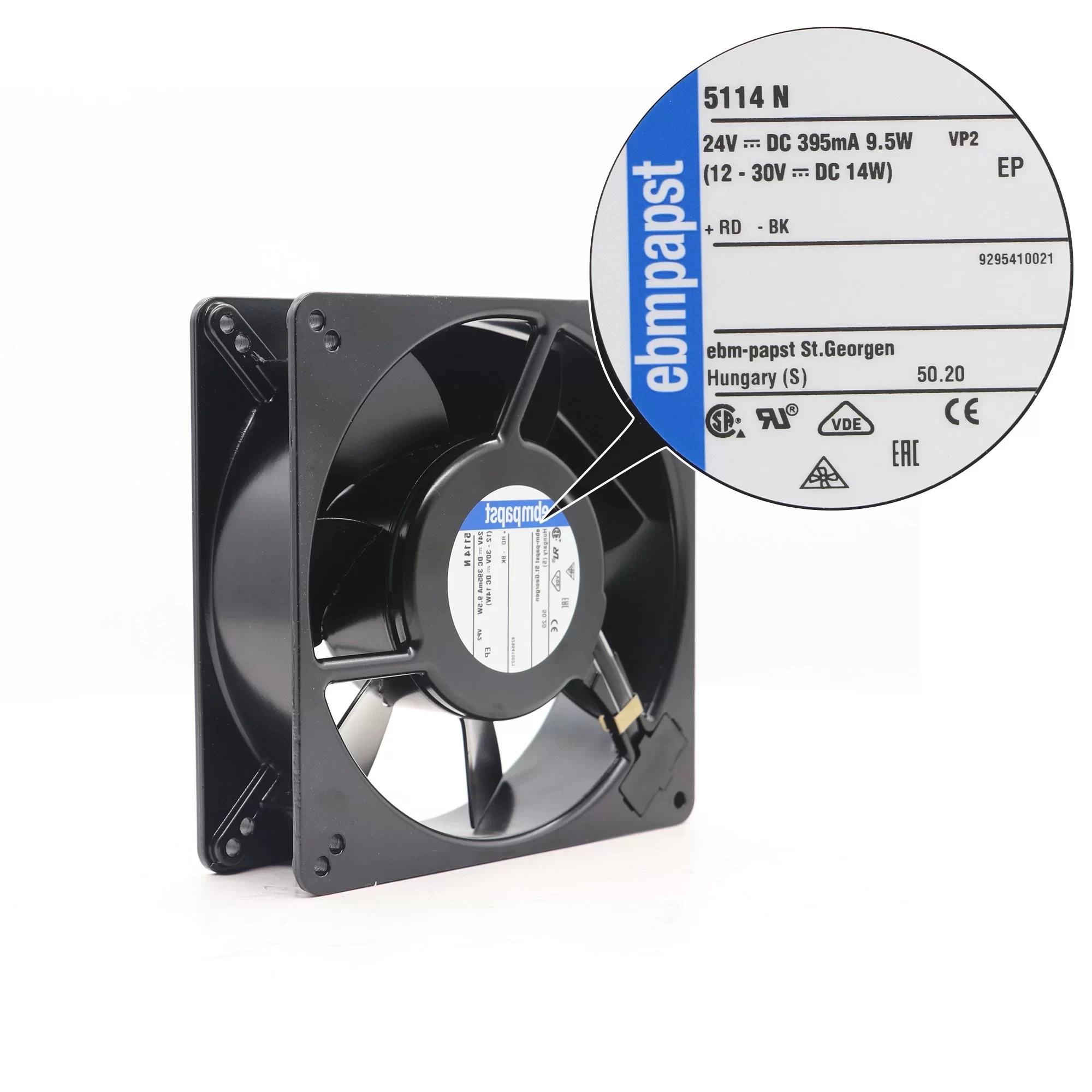

The ebmpapst 5114N is a 24VDC axial fan with dimensions of 135x135x38mm. Operating within a 12-30VDC range, it draws 0.395A of current and consumes 9.5W of power. This fan delivers an airflow of 260m³/h (153CFM) and operates at a speed of 2900RPM, with a noise level of 48dB(A) and a sound power level of 6.1Bels. Featuring durable ball bearings and two wire leads for connection, it is constructed with a die-cast aluminum housing and a PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 72°C and has a typical service life of 80,000hours at 40°C. This fan is ideal for various industrial and electronic cooling applications.

5114N Fan Parameters
Manufacturer: ebmpapst
Model: 5114N
Fan Type: DC Axial Fan
Dimensions: 135 x 135 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 30 VDC
Current Rating: 0.395 A
Power Consumption: 9.5 W
Airflow: 260 m³/h (153 CFM)
Speed: 2900 RPM
Noise Level: 48 dB(A)
Sound Power Level: 6.1 Bels
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 72°C
Lifetime @ Temp: 80,000 Hours (at 40°C)
Housing Material: Die-cast aluminum
Impeller Material: PA plastic
IP Rating: IP20
Weight: 0.65 kg
Approval Agency: CE
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronic equipment, control cabinets, and industrial systems that require efficient and quiet air movement.
