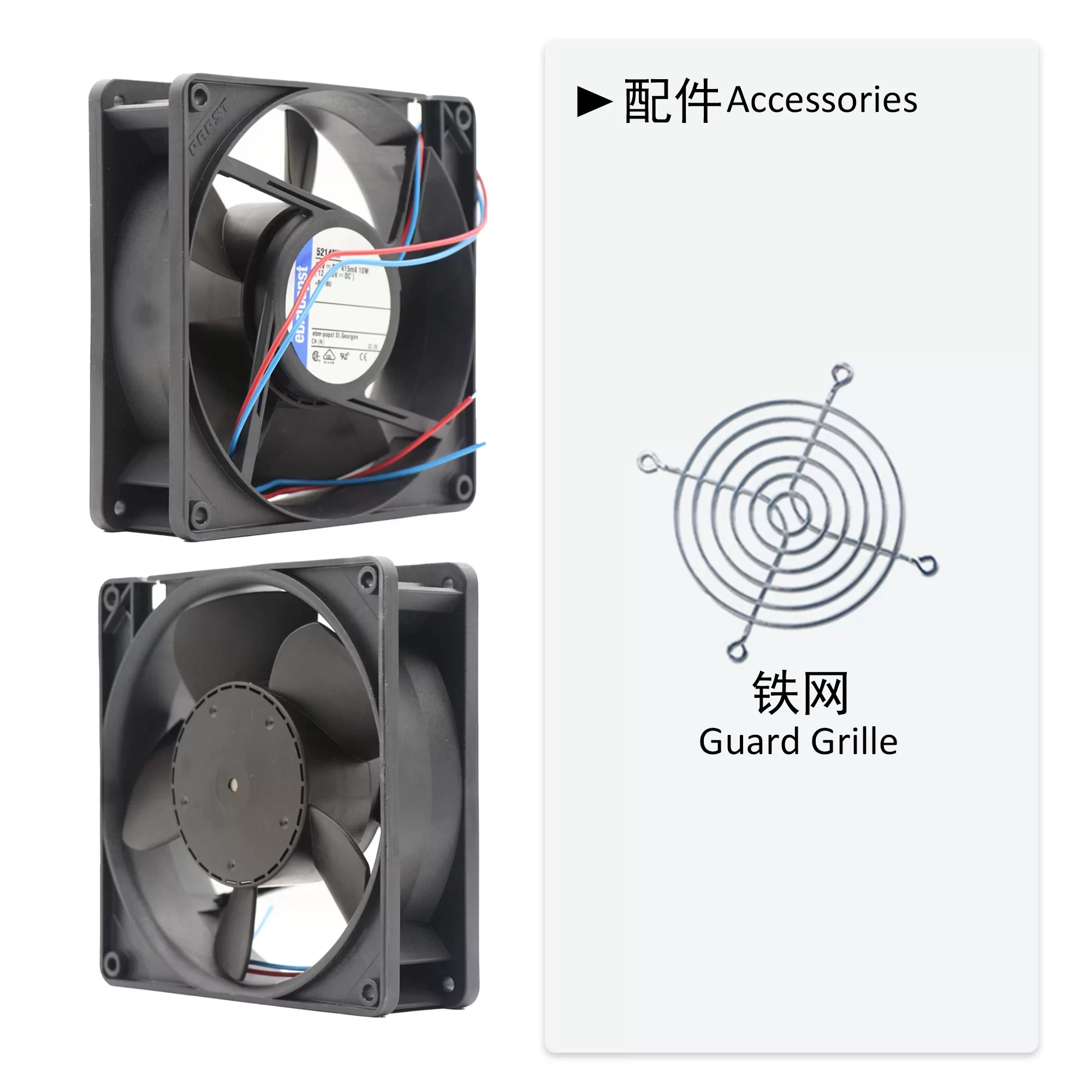

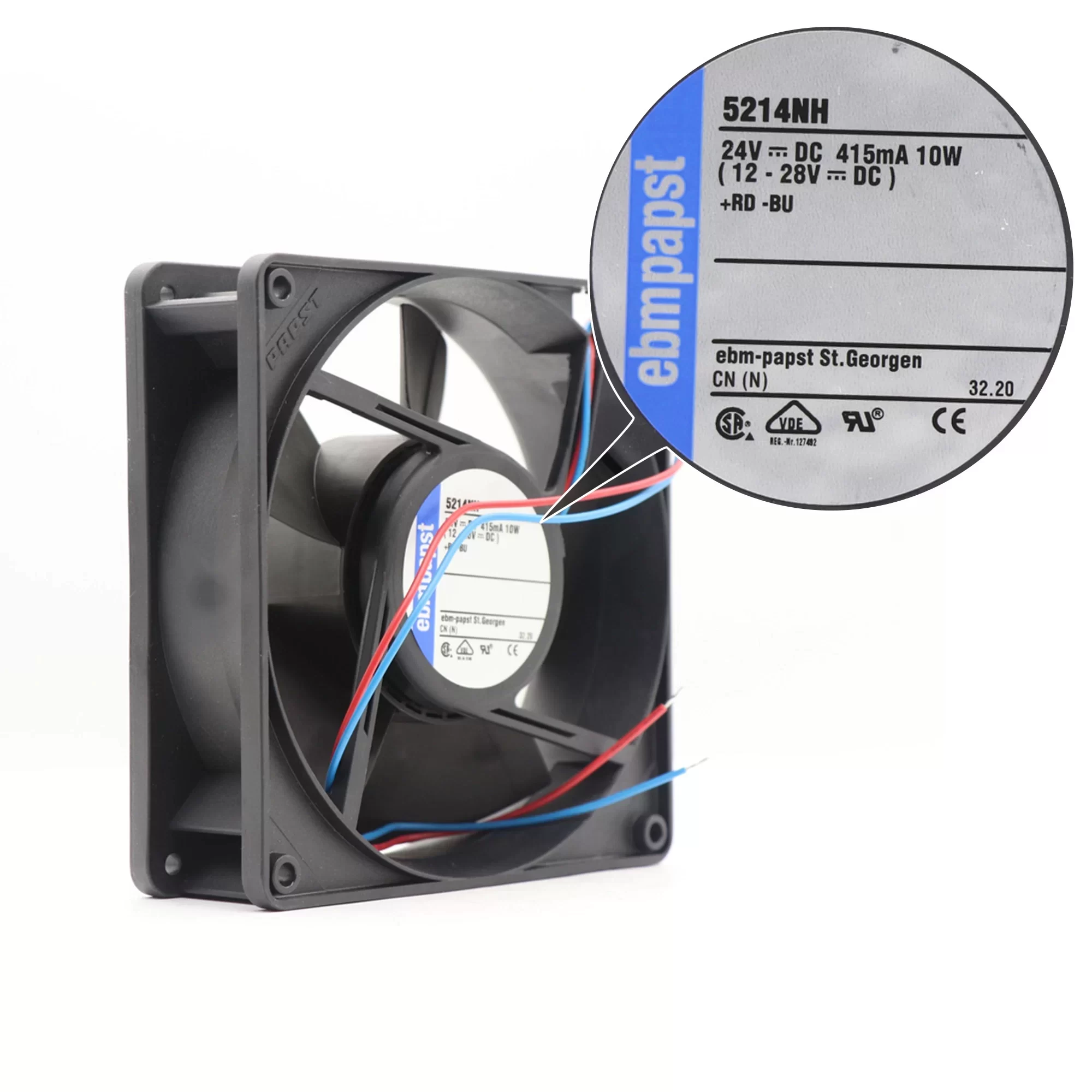

5214NH ebmpapst 24V DC Axial Fan

Description

The ebmpapst 5214NH is a robust 24V DC axial fan with dimensions of 127x127x38mm. Operating within a 12-28V range, it draws 415mA of current and consumes 10W of power. This fan delivers an airflow of 225m³/h (132CFM) at a speed of 3650RPM, with a noise level of 51dB(A). It features durable ball bearings and comes with 2 wire leads. Built with a glass-fiber reinforced PBT plastic frame and PA plastic impeller, it ensures reliable performance within an ambient temperature range of -20 to 75°C, and is certified by VDE, CSA, UL, and CE.

5214NH Fan Parameters
Manufacturer: ebmpapst
Model: 5214NH
Fan Type: Axial Fan
Dimensions: 127 x 127 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 415 mA
Power Consumption: 10 W
Airflow: 225 m³/h (132 CFM)
Static Pressure: Not specified
Speed: 3650 RPM
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 75°C
Frame Material: Glass-fiber reinforced PBT plastic
Blade Material: PA plastic
IP Rating: IP20
Weight: 0.22 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, telecommunications equipment, power supplies, and control cabinets where reliable airflow is needed.
