Description

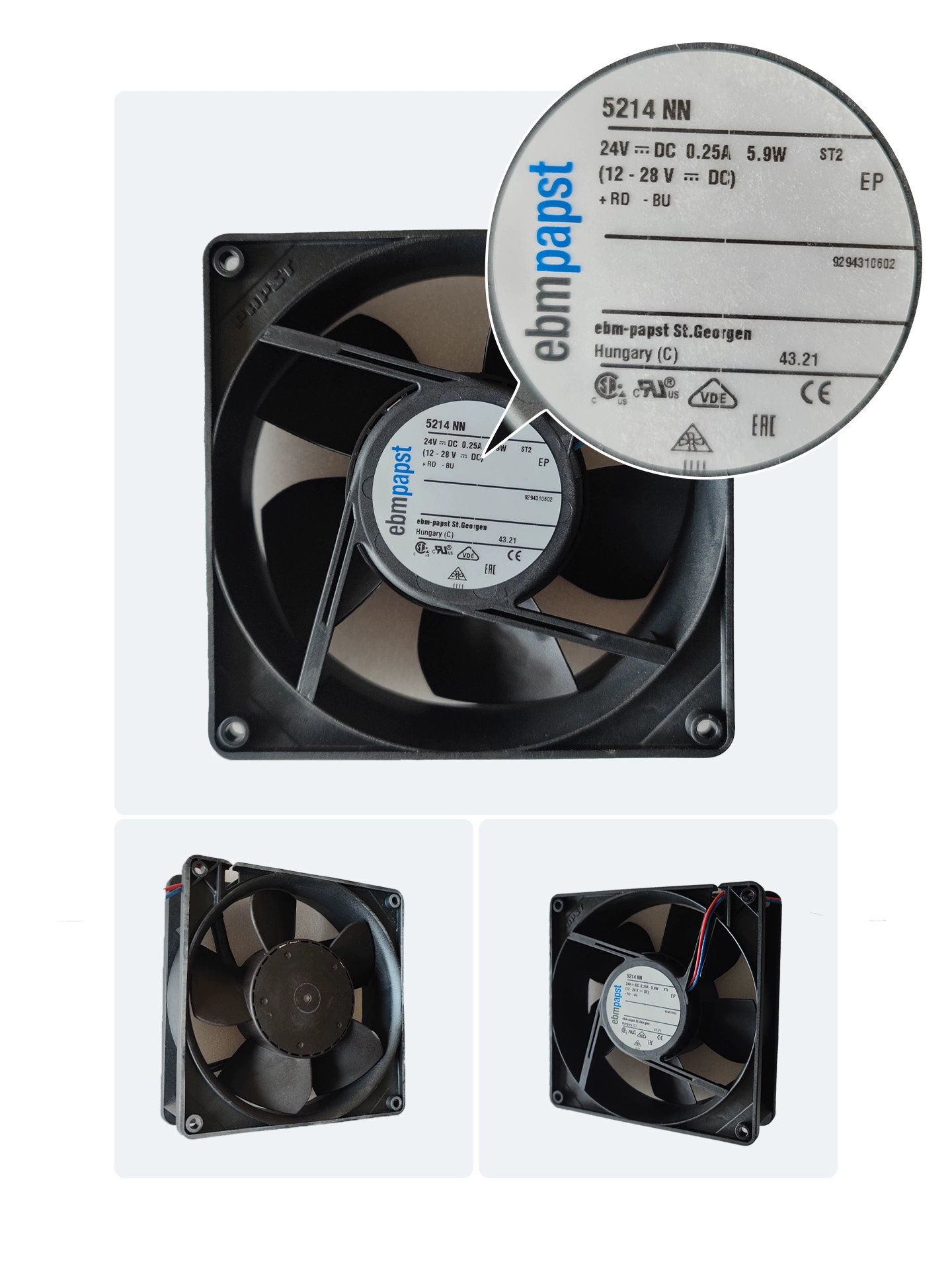

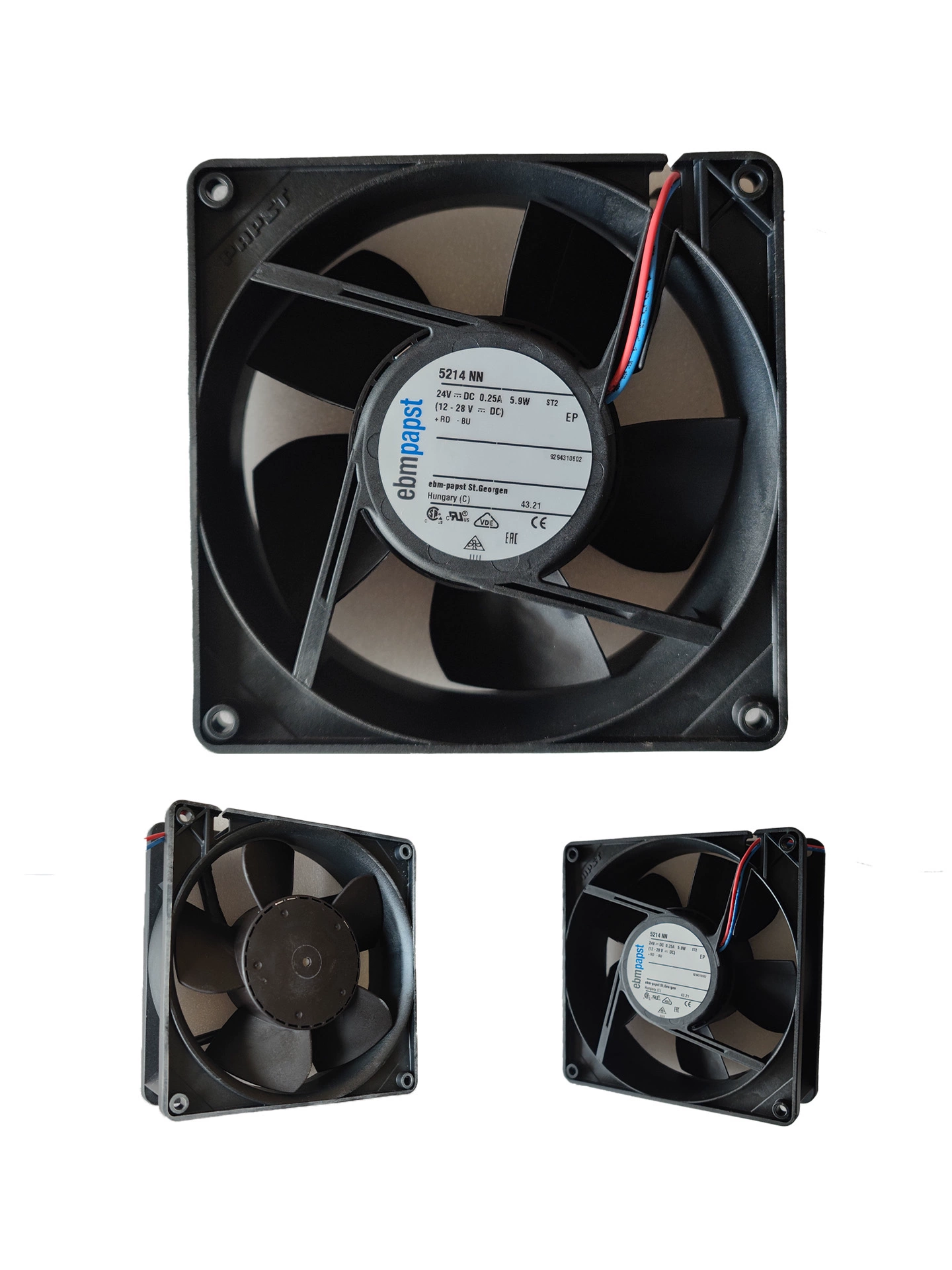

The ebmpapst 5214NN is a DC axial fan measuring 120x120x38mm. It operates on 24 VDC, drawing 0.25 A of current, with a power consumption of 5.9 W. This fan achieves a speed of approximately 2200 RPM, providing an airflow of around 80 CFM (2.26 m³/min). The noise level is typically 35 dB(A). It features ball bearings for durable operation and connects via 2-wire Leads. This fan is commonly used in various electronic equipment, industrial machinery, and control cabinets for efficient heat dissipation.
5214NN Fan Parameters
Model: 5214NN
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 24 VDC
Rated Current: 0.25 A
Power Consumption: 5.9 W
Speed: 2200 RPM
Airflow: 80 CFM (2.26 m³/min)
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Weight: 170 g
Material Frame: Plastic
Material Blade: Plastic
Application: Electronic equipment, industrial machinery, control cabinets.
