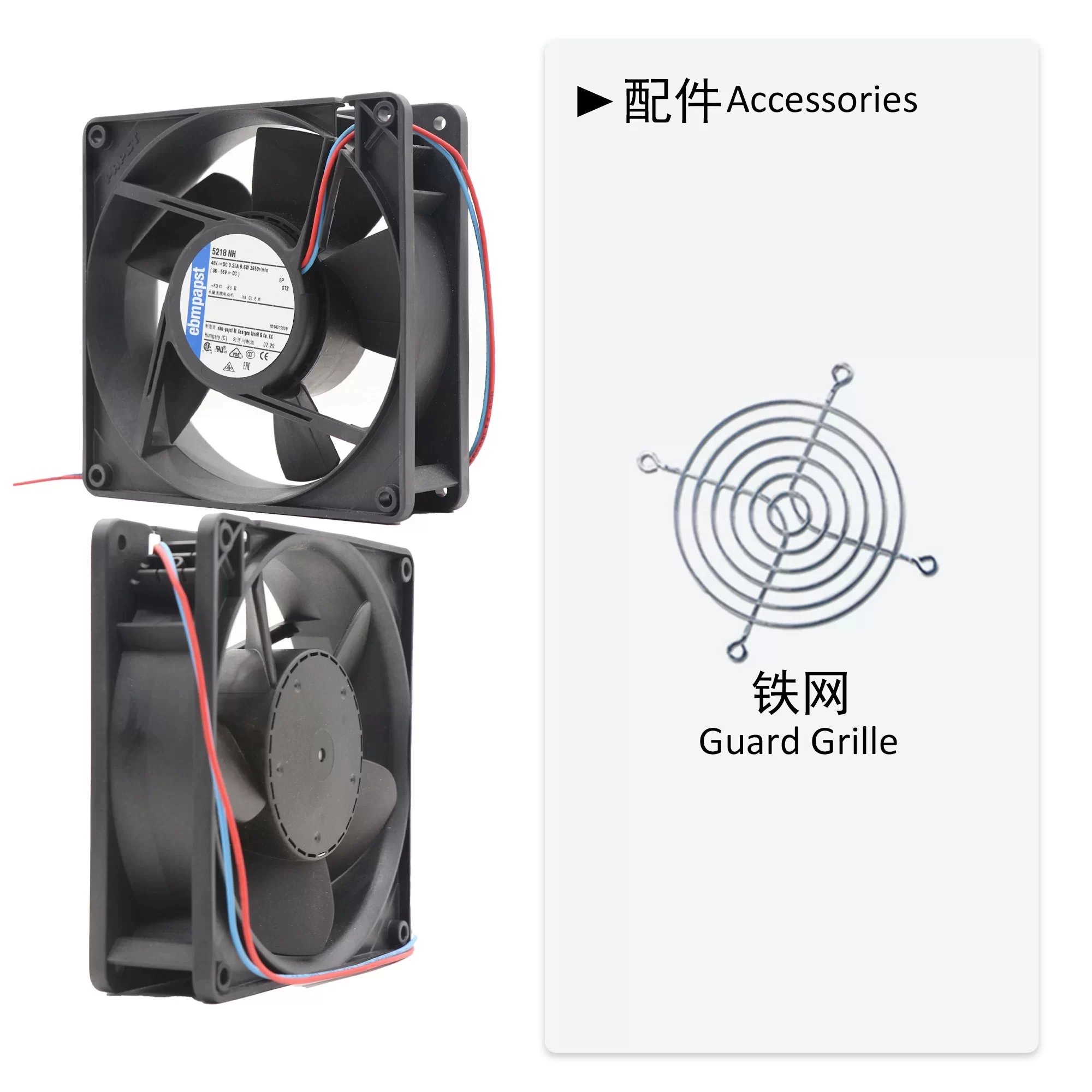

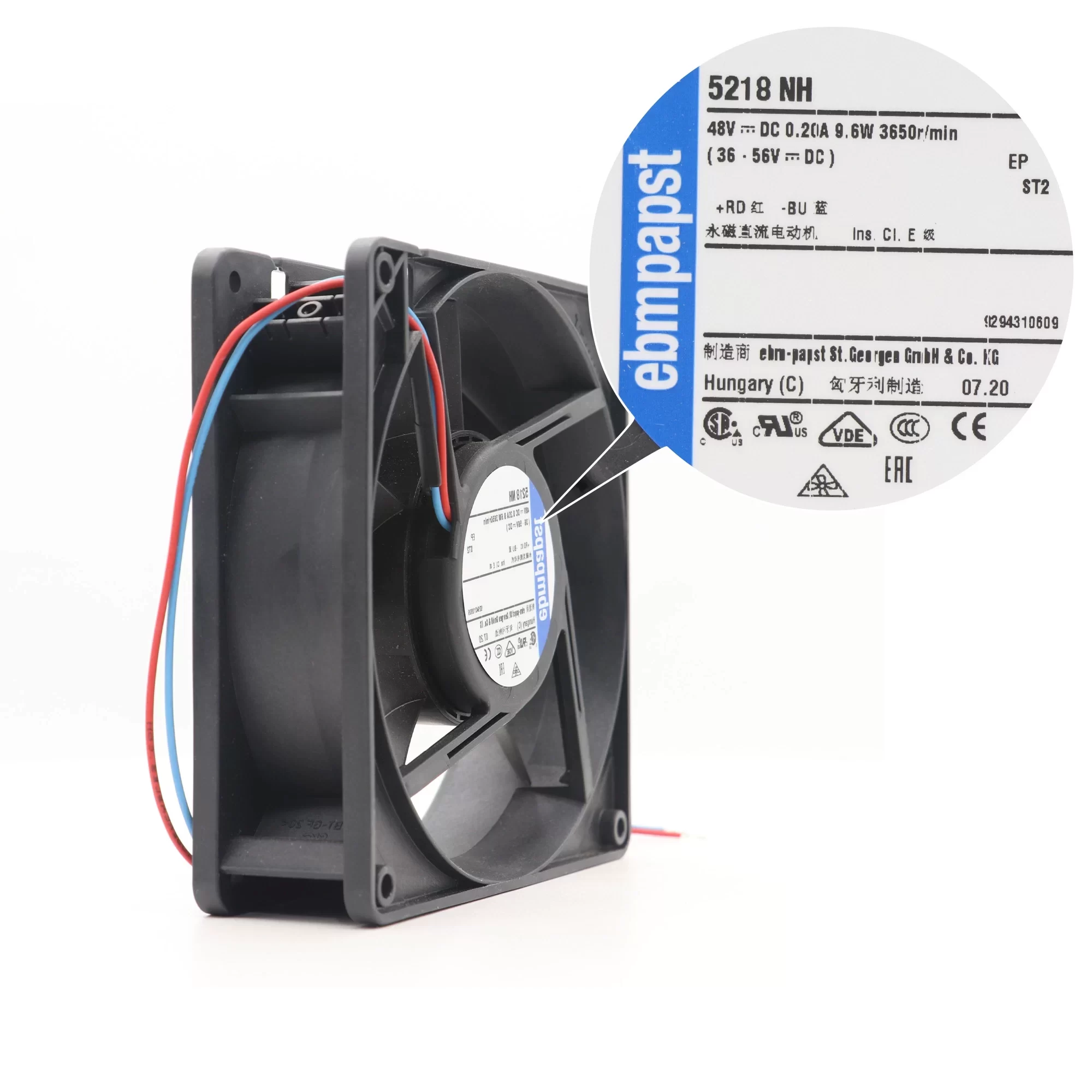

5218NH ebmpapst 48V DC Axial Fan

Description

The ebmpapst 5218NH is a 48VDC axial fan with dimensions of 127x127x38mm. Operating within a 36-56VDC range, it draws 0.20A of current and consumes 9.6W of power. This fan delivers an airflow of 252m³/h (148CFM) and operates at a speed of 3650RPM, with a noise level of 51dB(A). Featuring durable ball bearings and two wire leads, it is constructed with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 55°C and has a typical service life of 45,000hours at 40°C. This fan is suitable for cooling electronic equipment and control panels in 48VDC applications.

5218NH Fan Parameters
Manufacturer: ebmpapst
Model: 5218NH
Fan Type: DC Axial Fan
Dimensions: 127 x 127 x 38 mm
Rated Voltage: 48 VDC
Operating Voltage Range: 36 ~ 56 VDC
Current Rating: 0.20 A
Power Consumption: 9.6 W
Airflow: 252 m³/h (148 CFM)
Speed: 3650 RPM
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 55°C
Lifetime @ Temp: 45,000 Hours (at 40°C)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
IP Rating: IP20
Weight: 0.31 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for cooling a wide range of electronic equipment, control panels, and various systems requiring reliable airflow within a 48VDC power architecture.
